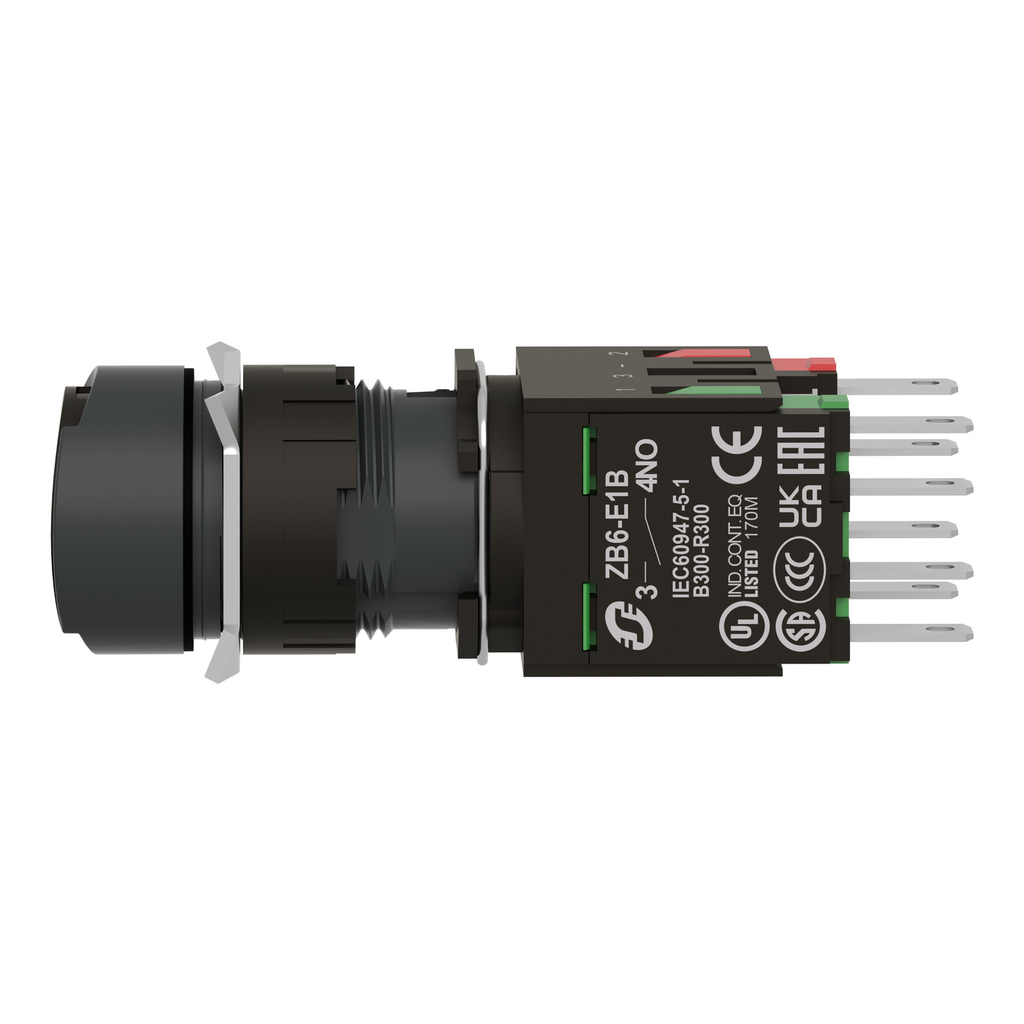

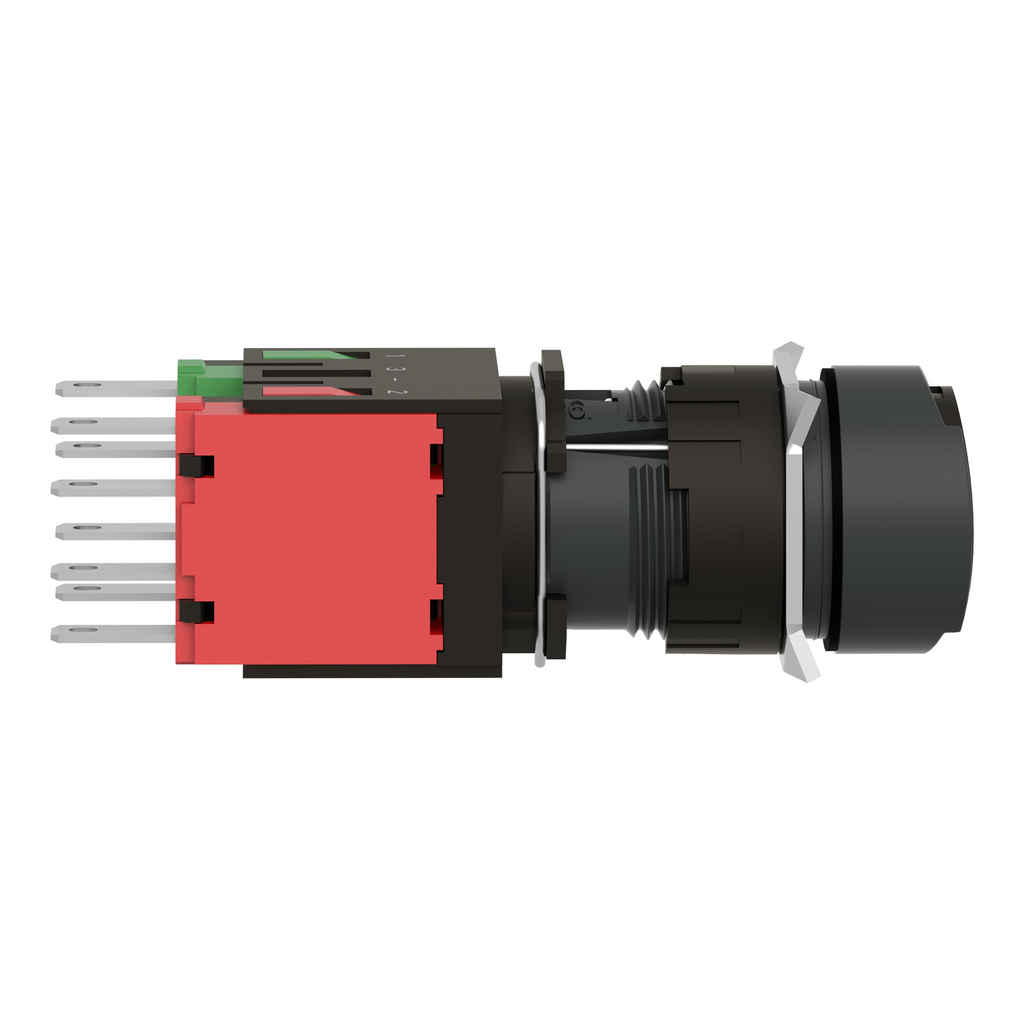

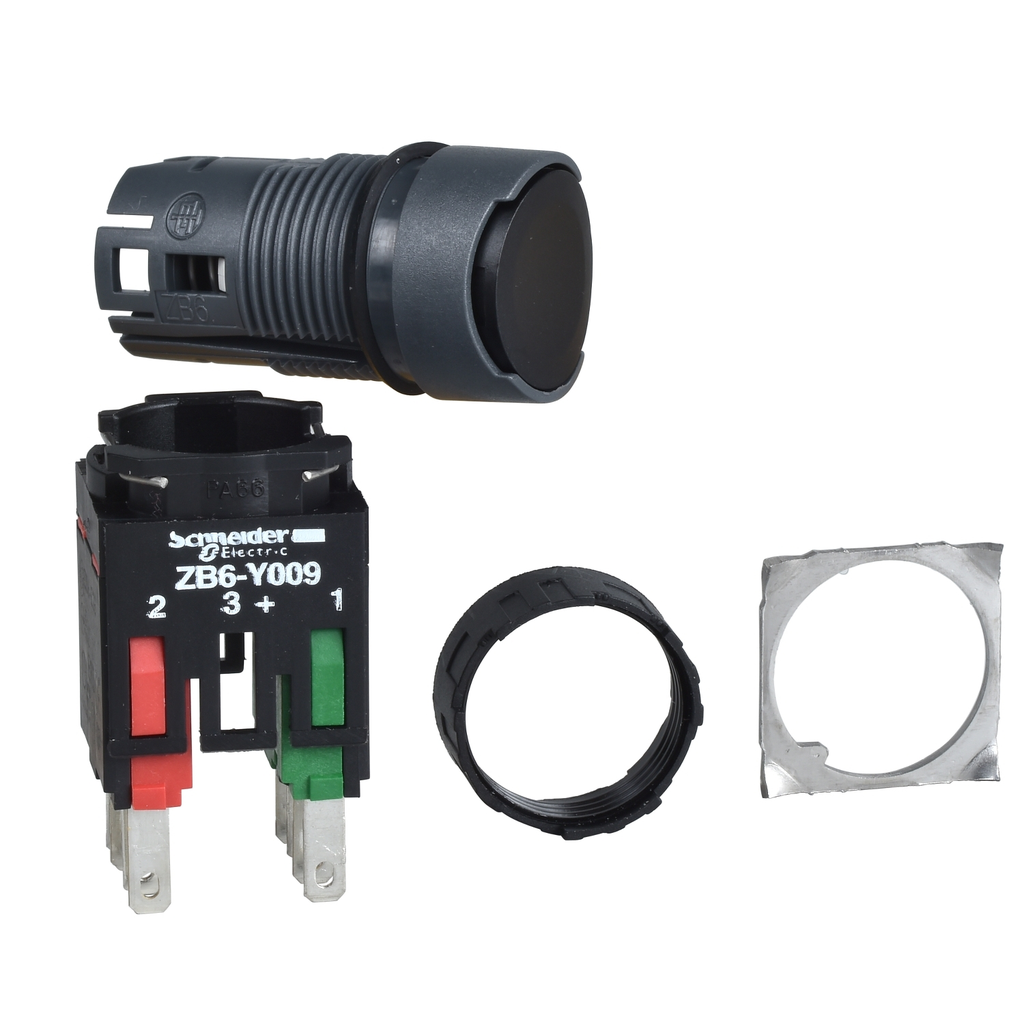

Square D XB6AA25B 16 mm 240 VAC 1.5 Amp 1NO 1NC Black Round Flush/Spring Return Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB6AA25B | Cooper Electric Part # 751073
$25.06 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB6 black, complete push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a flush spring return push. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Technical Information

Action
Slow-break
Actuator
BLACK FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
BLACK
Net Weight
0.022 kg
Operating Force
3.5 N
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-5,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
Complete push-button
Voltage
240 VAC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB6

General Product Info

12-Digit UPC
787260040310
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110764406
Product UPC
78590135611
Weight
0.022 kg

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
France
Connections Terminals
  • Faston connectors 2.8 x 0.5 mm
IE Rated Operational Current
  • 3 A 120 V, AC-15, B300 IEC 60947-5-1
  • 1.5 A 240 V, AC-15, B300 IEC 60947-5-1
  • 1.5 A 240 V, AC-15, B300 IEC 6
IP Degree Of Protection
  • IP65 IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0016910959
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0272148194
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.3 kg CO2 eq.
  • 0.3350902864
Electrical Shock Protection Class
  • class II conforming to IEC 61140
Nema Degree Of Protection
  • NEMA 13 UL 50
  • NEMA 4 UL 50
  • NEMA 4X UL 50
  • NEMA 13 CSA C22.2 No 94
  • NEMA 4 CSA C22.2 No 94
  • NEMA 4X CSA C22.2 No 94
UI Rated Insulation Voltage
  • 250 V 3)IEC 60947-1
Electrical Durability
  • 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 609
Operating Force
  • 3.5 N NO changing electrical state
  • 4.5 N NC changing electrical state
Vibration Resistance
  • +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
  • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • 5 gn (f
Positive Opening
  • with IEC 60947-5-1 appendix K
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Terminals Description ISO N 1
  • (13-14)NO
  • (21-22)NC
Carbon Footprint Of The Distribution Phase A4
  • 0.0019614882
  • 0 kg CO2 eq.
Short Circuit Protection
  • 6 A cartridge fuse gG
Operating Travel
  • 1 mm NO changing electrical state)
  • 2 mm NC changing electrical state)
  • 3.5 mm total travel)
Operator Profile
  • black flush, unmarked
Electrical Reliability
  • ? = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
  • ? = 10exp(-8) 5 V 1 mA with confidence level of 90 %
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
UIMP Rated Impulse Withstand Voltage
  • 4 kV IEC 60947-1
