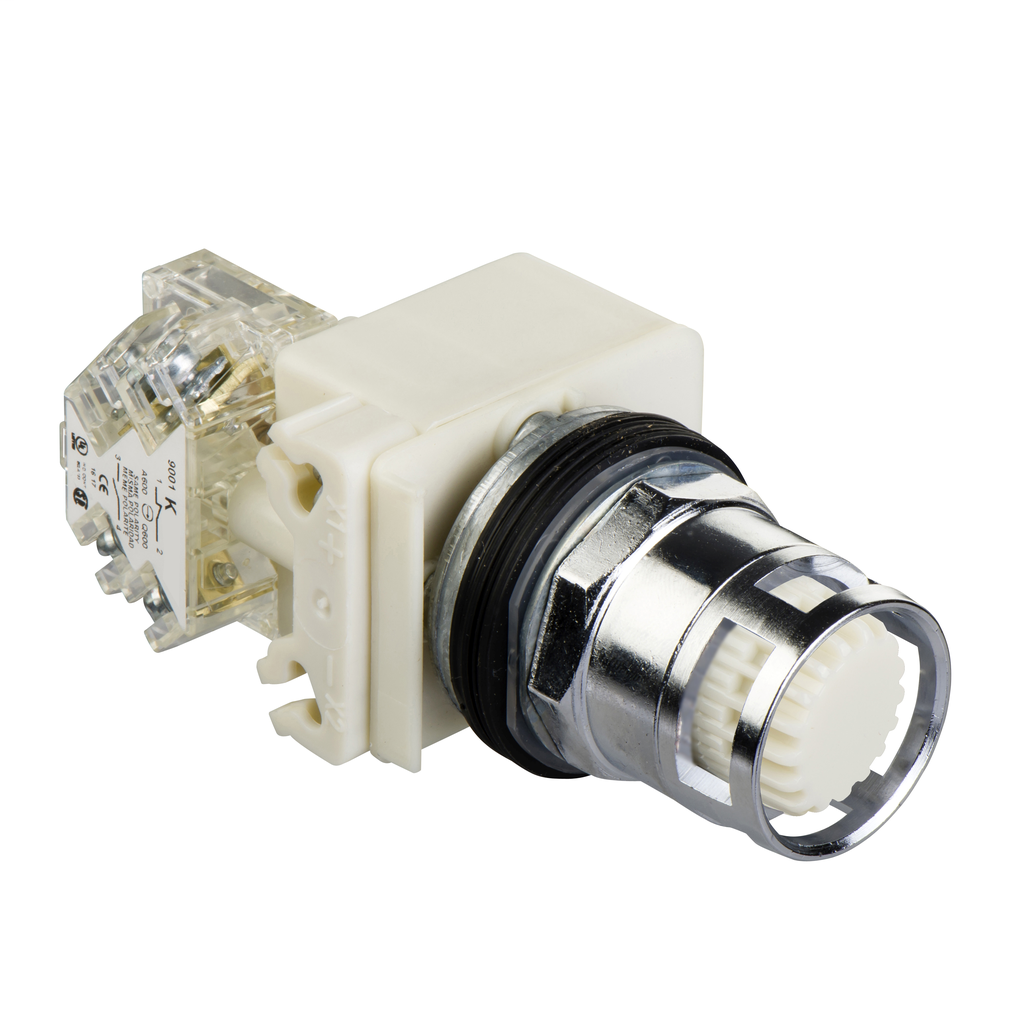

Product image for Square D 9001K3L1WH13 30 mm 10 Amp 600 Volt Push Button
Image thumbnail 0
Image thumbnail 1

Email

Square D 9001K3L1WH13 30 mm 10 Amp 600 Volt Push Button

Manufacturer: Square-D / Schneider | Catalog # 9001K3L1WH13 | Cooper Electric Part # 749489

$231.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony 9001K, modular illuminated flush white push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Actuator
SPRING RETURN,WHITE FLUSH
Amperage
10 Amp, AC-15-10 Amp, DC-13
Bezel Material
Chromium Plated Metal
Contact Configuration
1 C/O
Contact Rating
AC15 - DC13
Enclosure
NEMA 1/2/3/3R/4/6/12/13
Indicator
BA 9S
Size
30 MM
TC Connection
SCREW CLAMP TERMINALS
Type
ILLUMINATED PUSH-BUTTON
Voltage
110...120 Volt AC

Manufacturer Information

Brand
Harmony
Sub Brand
K

General Product Info

12-Digit UPC
785901347781
GTiN
00785901347781
Product UPC
78590134778

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CSA LR 25490 Class 3211 03,NEMA,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
