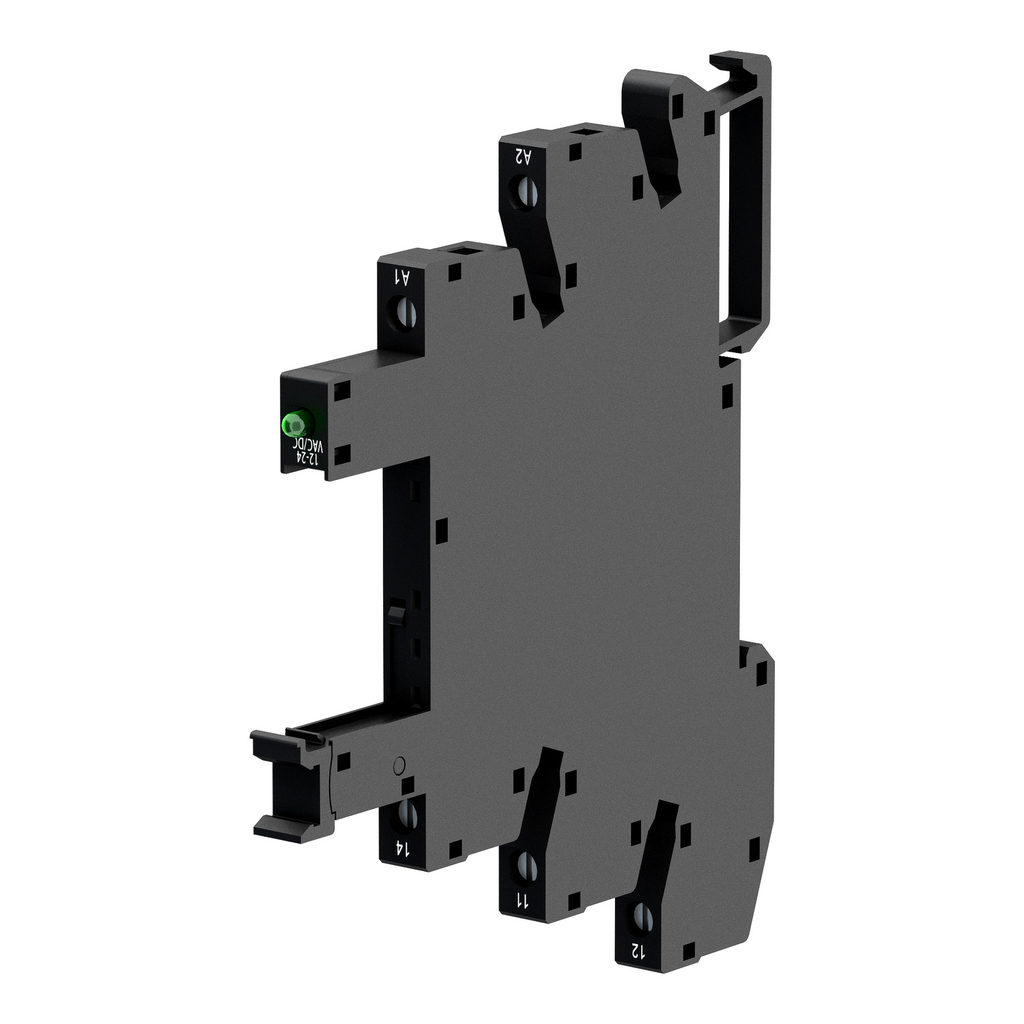

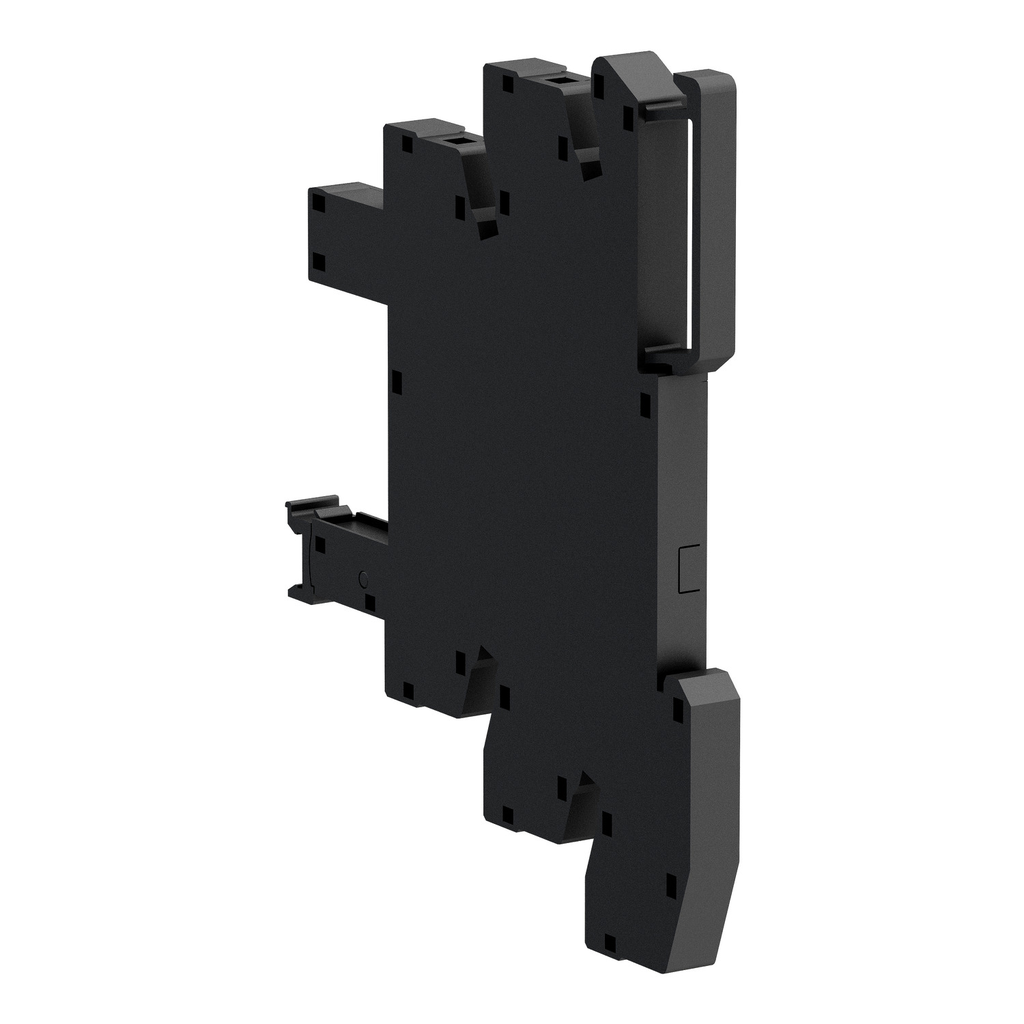

SQD RSLZVA2 socket equipped with LE

Manufacturer: Square-D / Schneider | Catalog # RSLZVA2 | Cooper Electric Part # 746592
$15.54/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V ac/dc." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Technical Information

Applications
PLUG-IN RELAY, RSL, 1 C/O, CONTROL CIRCUIT48 V DCPLUG-IN RELAY, RSL, 1 C/O, CONTROL CIRCUIT60 V DC
Line Rated Current
6 A
Net Weight
0.023 kg
Operating Temperature
-40...70 Adegrees C
Size
6.2 MM,78.6 MM,95 MM
Standard
IEC 61984,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
CONNECTOR, 1 X 0.2...1 X 2.5 MMA / AWG 24...AWG 14 FLEXIBLE CABLE WITH CABLE ENDCONNECTOR, 1 X 0.2...1 X 2.5 MMA / AWG 24...AWG 14 SOLID CABLE WITHOUT CABLE END FLAT
Type
SOCKET
Voltage
300 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSLZ

General Product Info

12-Digit UPC
606480078036
GTiN
03606480078033
Product UPC
78590197568
Weight
0.023 kg

Dimensions

Height
78.6 mm
Warranty Length
18 mth
Width
6.2 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,GOST
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RSLZ5
  • RSLZ3
