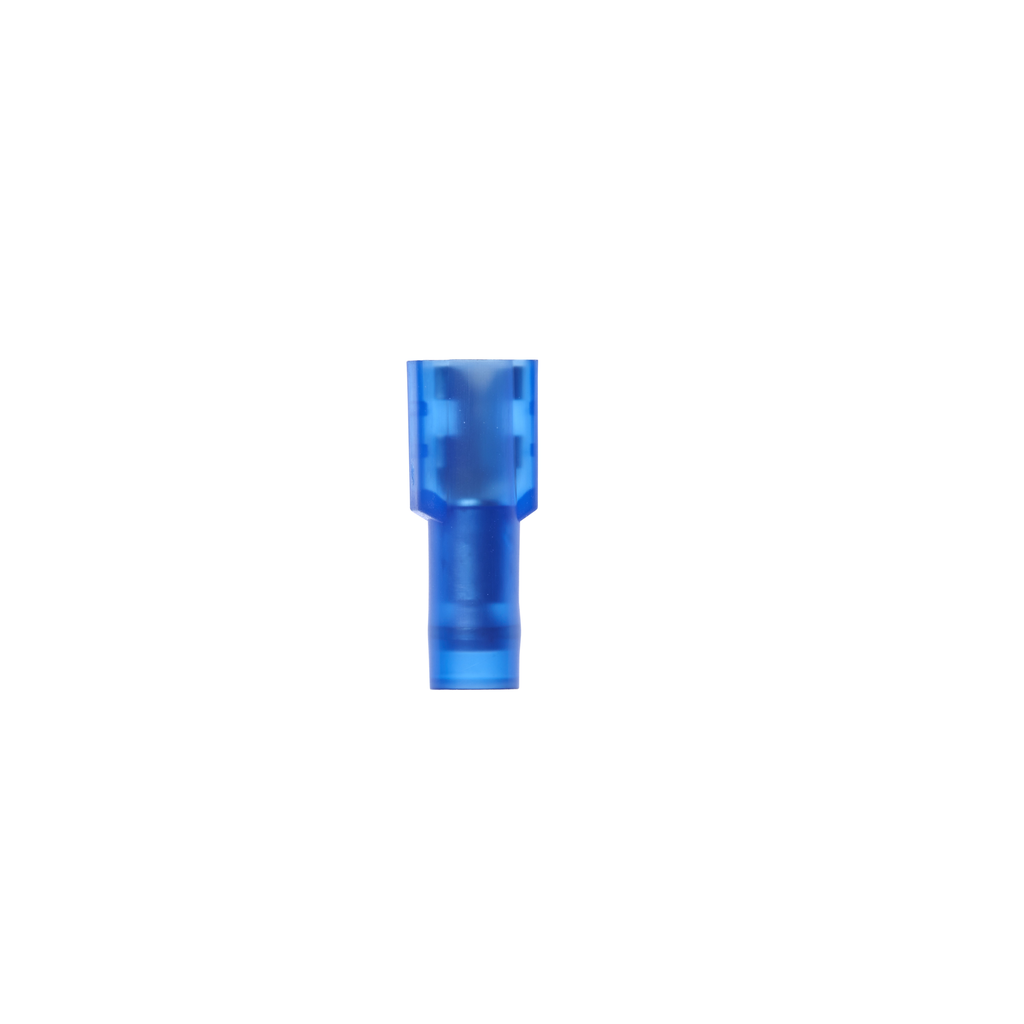

Product image for 3M 7100164060 3M™ Scotchlok™ Nylon
Email

3M 7100164060 3M™ Scotchlok™ Nylon

Manufacturer: 3M | Catalog # 7100164060 | Cooper Electric Part # 745476
$1.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Nylon With Insulation Grip
Material
Nylon
Terminal Size
16 - 14 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007159759
GTiN
00054007159759
Product UPC
05400715975

Dimensions

Diameter
0.23 Inch
Length
0.81 Inch
Overall Length
0.81 in
Thickness
0.02 in
Width
0.3 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
