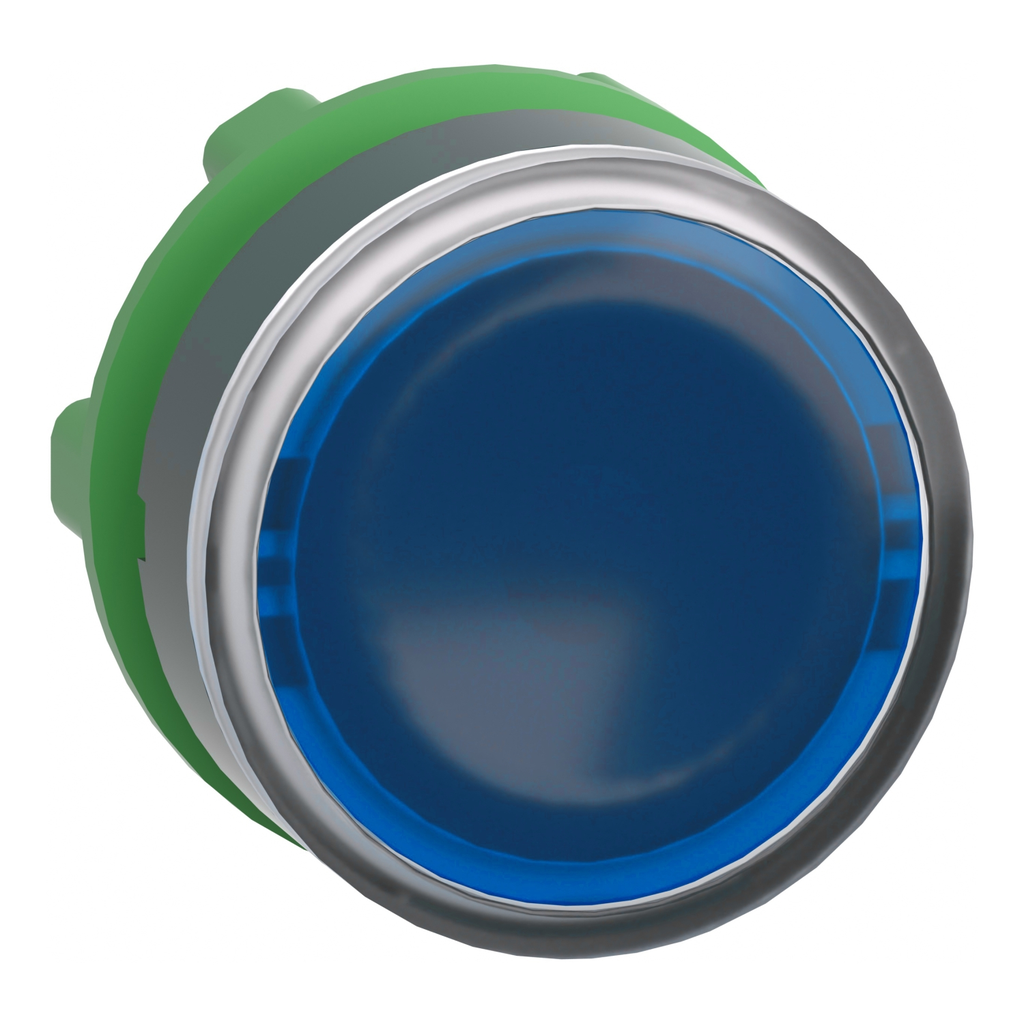

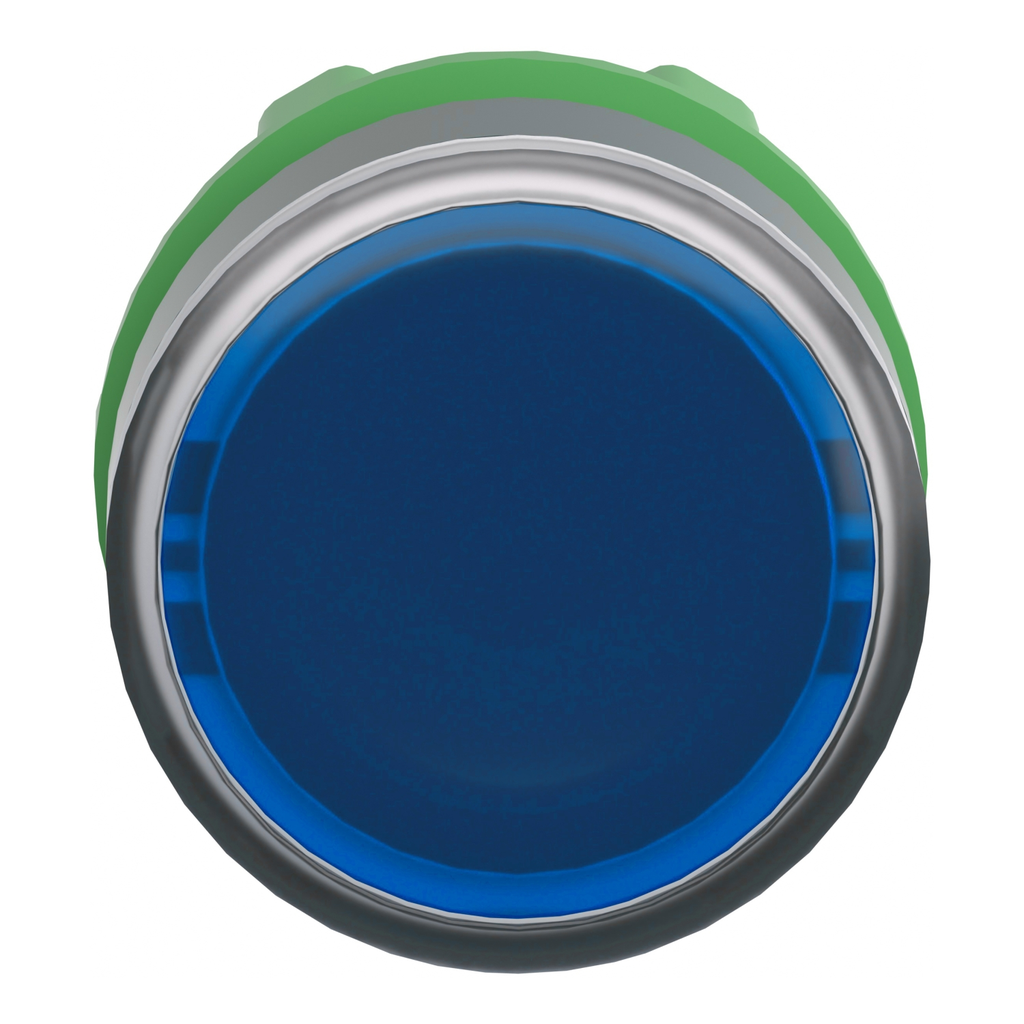

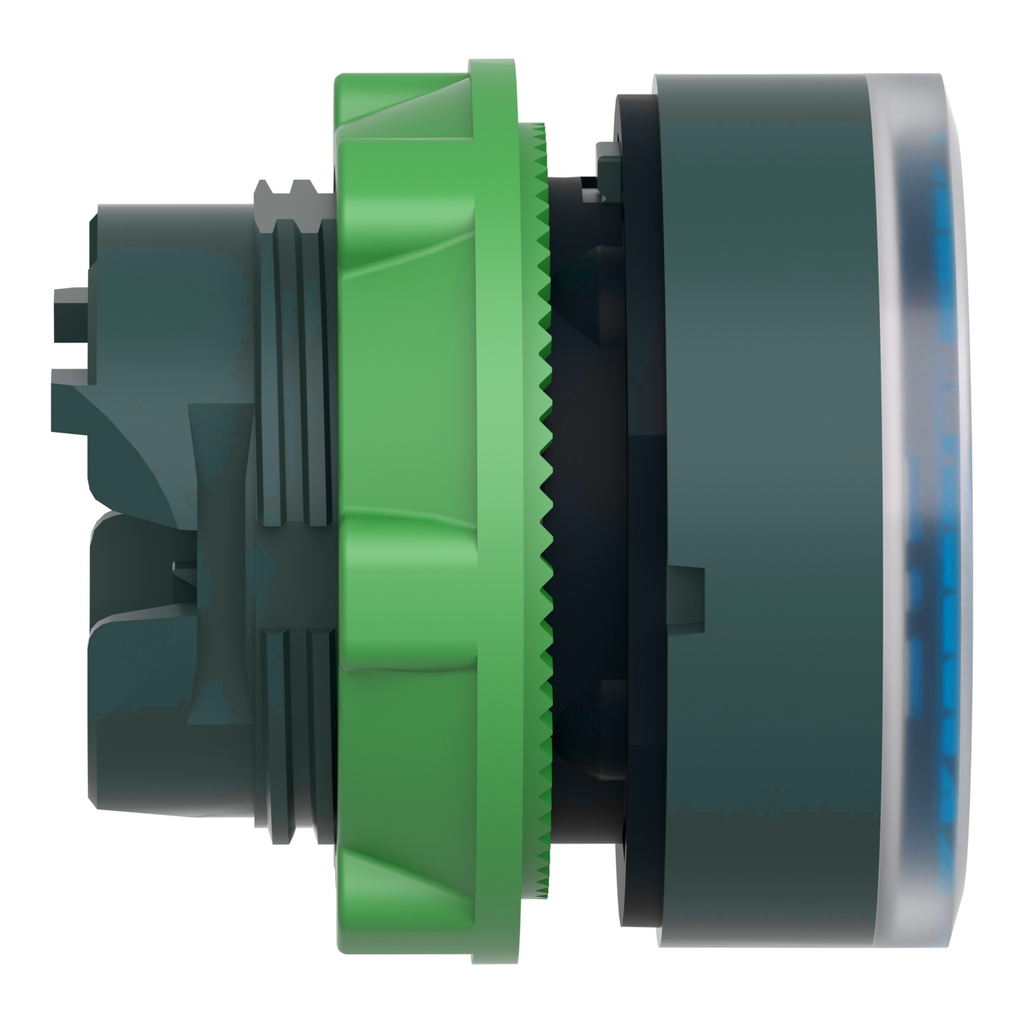

Square D ZB5AA68 22 mm Blue Round Flush Momentary Non-Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5AA68 | Cooper Electric Part # 745151
$11.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This blue flush button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Technical Information

Action
SPRING RETURN
Actuator
BLUE FLUSH, UNMARKED,SPRING RETURN
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
BLUE
Net Weight
0.018 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,GB 14048.5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901385325
Color
Blue
Environmental Conditions
IP 65
GTiN
03389110904765
Product UPC
78590138532
Weight
0.018 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG304001
  • ZBYP2101
  • ZBPA
