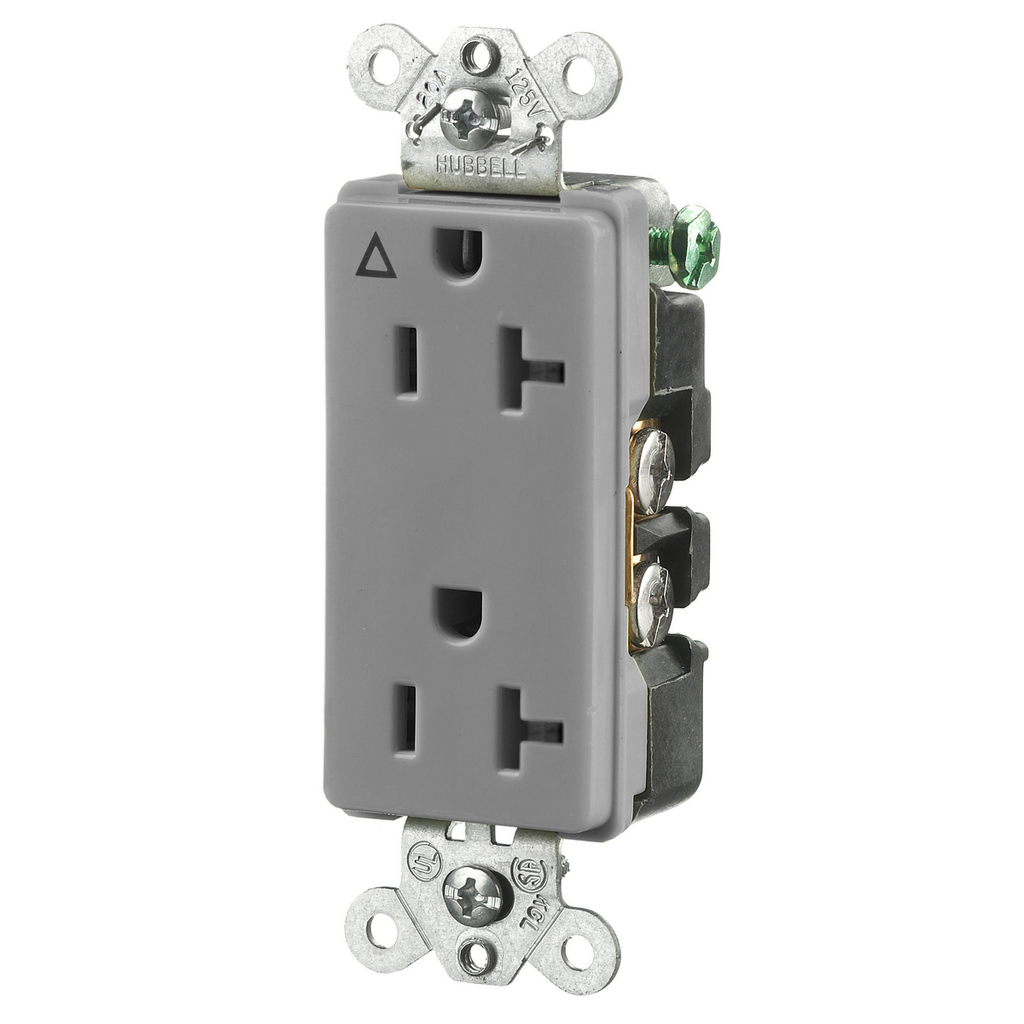

Product image for HWDK IG2162GY STYLE DUP RCPT, IG, 2
Email

HWDK IG2162GY STYLE DUP RCPT, IG, 2

Manufacturer: Hubbell Wiring Device | Catalog # IG2162GY | Cooper Electric Part # 745100
$93.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial/Decorator Grade, Isolated Ground, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial/Decorator
Grounding
Isolated Ground
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Style Line Decorator
TC Connection
Back & Side Wired
Type
Decorator
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 V

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585845166
Color
Gray
Environmental Conditions
Indoor Only
GTiN
00783585845166
Product Series
Heavy Duty
Product UPC
78358584516
Weight
0.25 lb

Dimensions

Height
1.03 Inch
Length
3.28 Inch
Width
1.36 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
  • Isolated Ground
