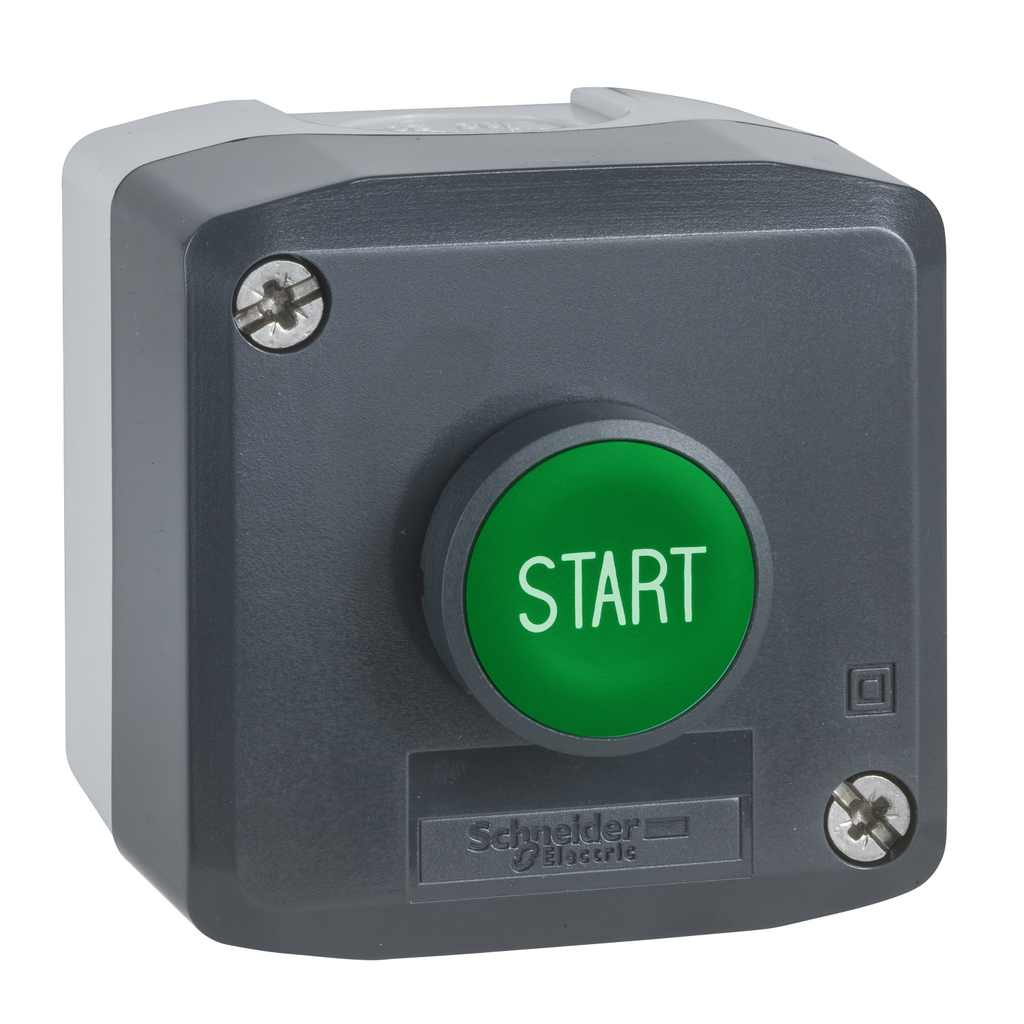

Product image for Square D XALD101H29H7 600 VAC 300 VDC 10 Amp 1NO Polycarbonate Push Button Control Station
Image thumbnail 0
Image thumbnail 2

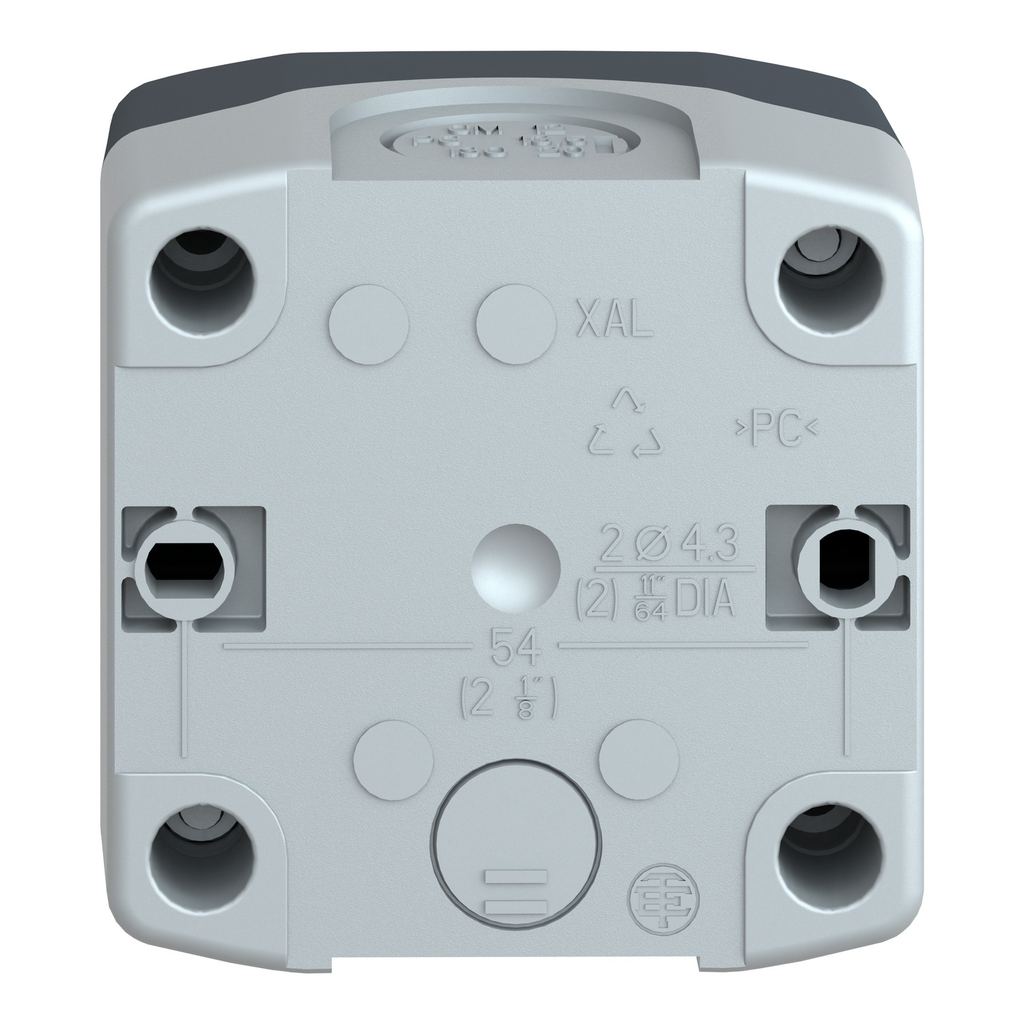

Image thumbnail 3

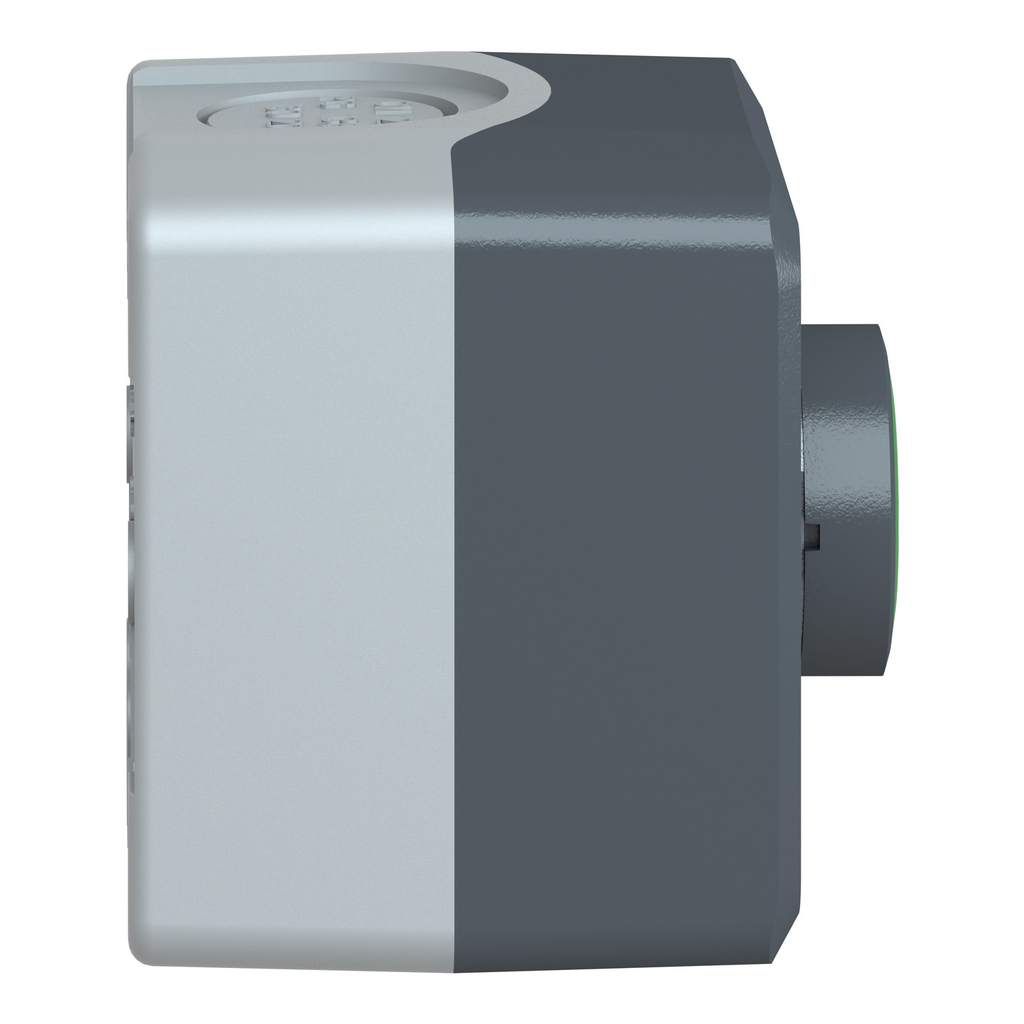

Image thumbnail 4

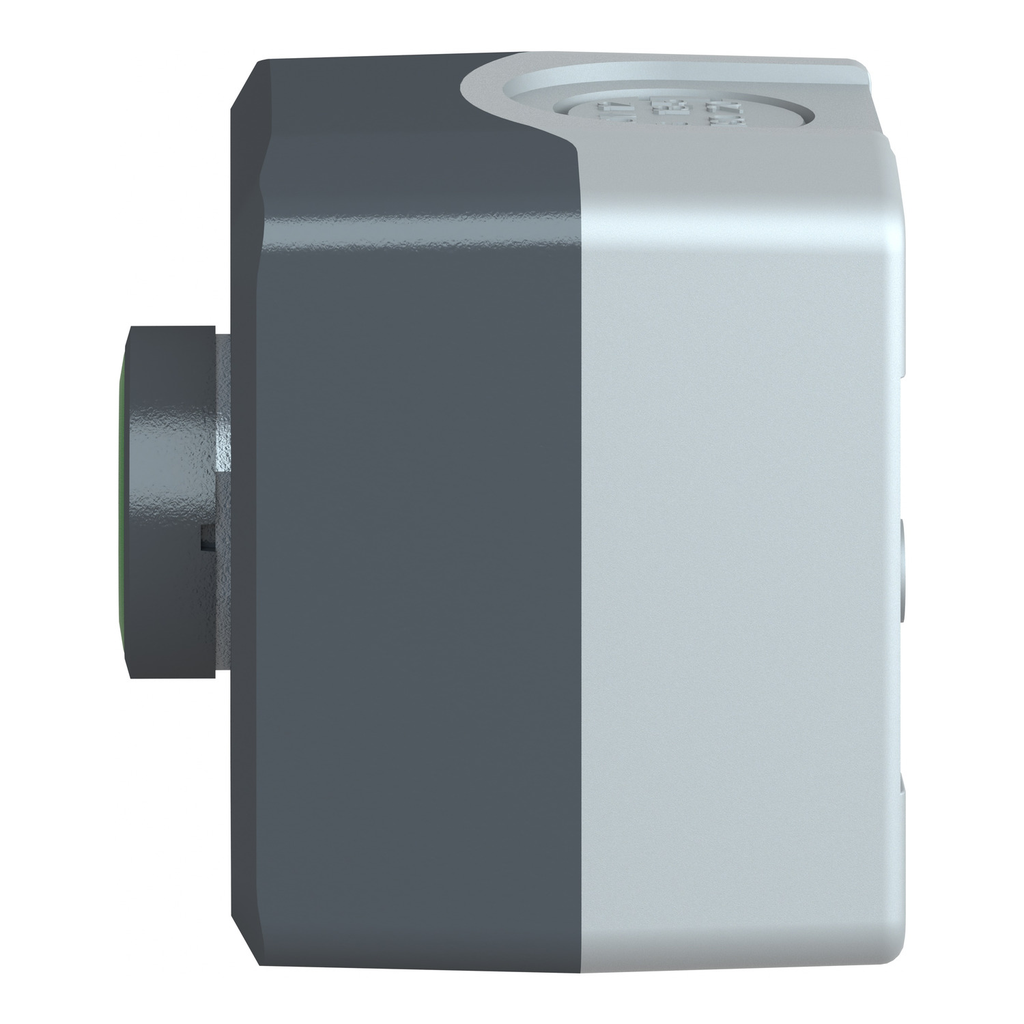

Image thumbnail 5
Image thumbnail 6
Email

Square D XALD101H29H7 600 VAC 300 VDC 10 Amp 1NO Polycarbonate Push Button Control Station

Manufacturer: Square-D / Schneider | Catalog # XALD101H29H7 | Cooper Electric Part # 744071
$53.66/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 7:00am ET
9 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch

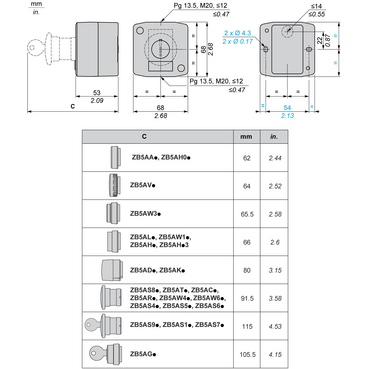

CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony XALD, is a complete ready to use control station for start function. It has 1 flush push button, green with START marking on legend holder. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads

Technical Information

Actuator
1 FLUSH PUSH-BUTTON, GREEN 1 NO START
Amperage
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications
Start function;For XB5 22 mm control and signalling units
Cable Entry
14-14 mm
Contact Material
Silver Alloy
Contact Rating
Slow-break
Enclosure
Polycarbonate
Material
Polycarbonate
Net Weight
0.157 kg
Operating Force
3.8 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Complete control station;Green ''START'' 1 NO

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALD

General Product Info

12-Digit UPC
360648050264
Color
DARK GREY RAL 7016)
GTiN
03606480502682
Product UPC
78590113543
Weight
0.157 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
France
Connections Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
Overvoltage Category
  • class II conforming to IEC 60536
Color Of Base Of Enclosure
  • light grey RAL 7035)
IE Rated Operational Current
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 3 A 240 V, AC-15, A600 IEC 60947
ITH Conventional Free Air Thermal Current
  • 10 A IEC 60947-5-1
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=XALD101_NEW_2024&p_File_name=XALD101.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=XALD101_NEW_2024&p_File_name=XALD101_2D-back.DWG
  • https://download.schneider-electric.com/files?p_
IP Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Carbon Footprint Of The Installation Phase A5
  • 0.0005827548924270417
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3 kg CO2 eq.
  • 0.28961269707048864

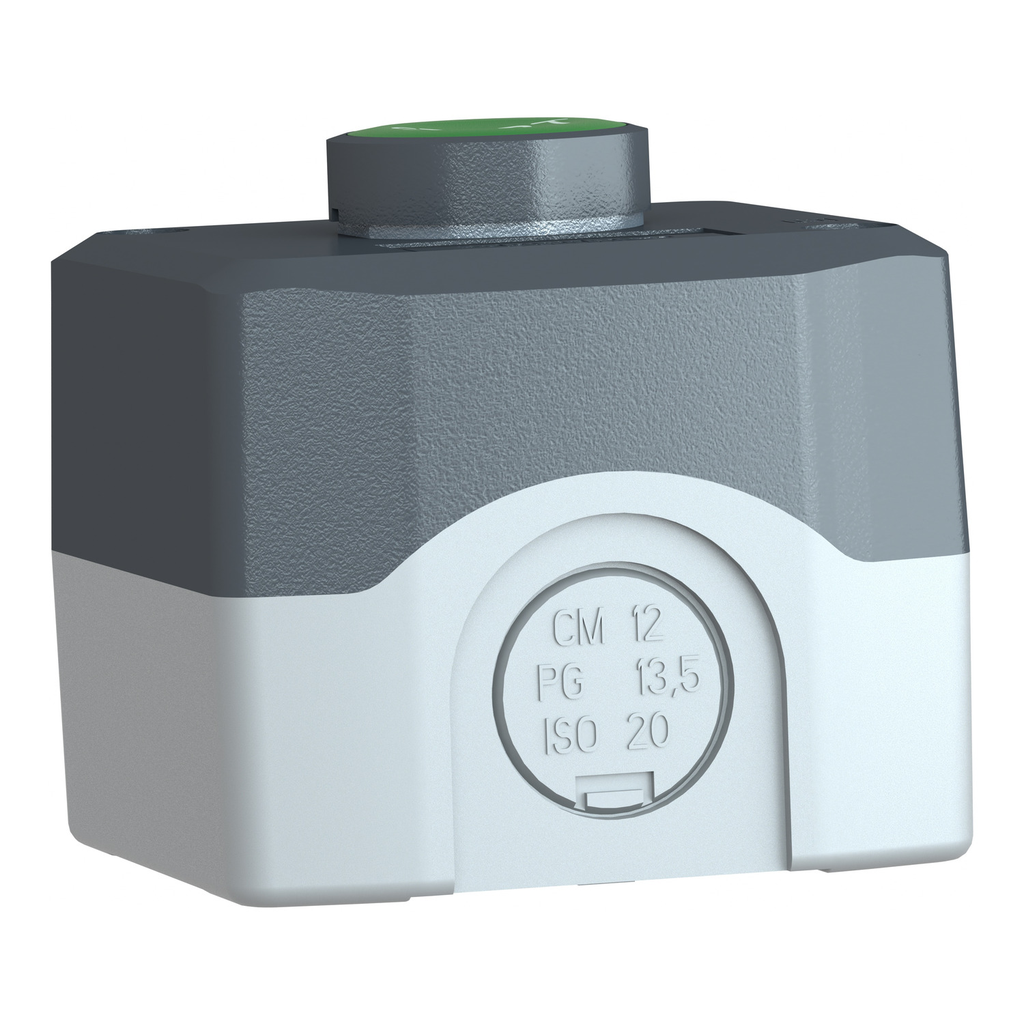

Cable Entry
  • 1 knock-out for cable entry 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.7 kg CO2 eq.
  • 0.7363674065755316
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
UI Rated Insulation Voltage
  • 600 V 3)IEC 60947-1
Accessories
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 2 A 230 V 36
Operating Force
  • 3.8 N NO changing electrical state
Vibration Resistance
  • 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Color Of Cover
  • dark grey RAL 7016)
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0.004585392125597635
Accessory Products
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.09887099503763158
  • 0.1 kg CO2 eq.
Tightening Torque
  • 0.8-1.2 N.m IEC 60947-1
Resistance To High Pressure Washer
  • 7000000 Pa 55 °C 0.1 m
Short Circuit Protection
  • 10 A cartridge fuse gG IEC 60947-5-1
Control Station Composition
  • 1 flush push-button, green 1 NO START
Operating Travel
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Electrical Reliability
  • ? < 10exp(-6) 5 V 1 mA IEC 60947-5-4
  • ? < 10exp(-8) 17 V 5 mA IEC 60947-5-4
  • ? < 10exp(-8) 17 V 5 mA IEC 60
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
