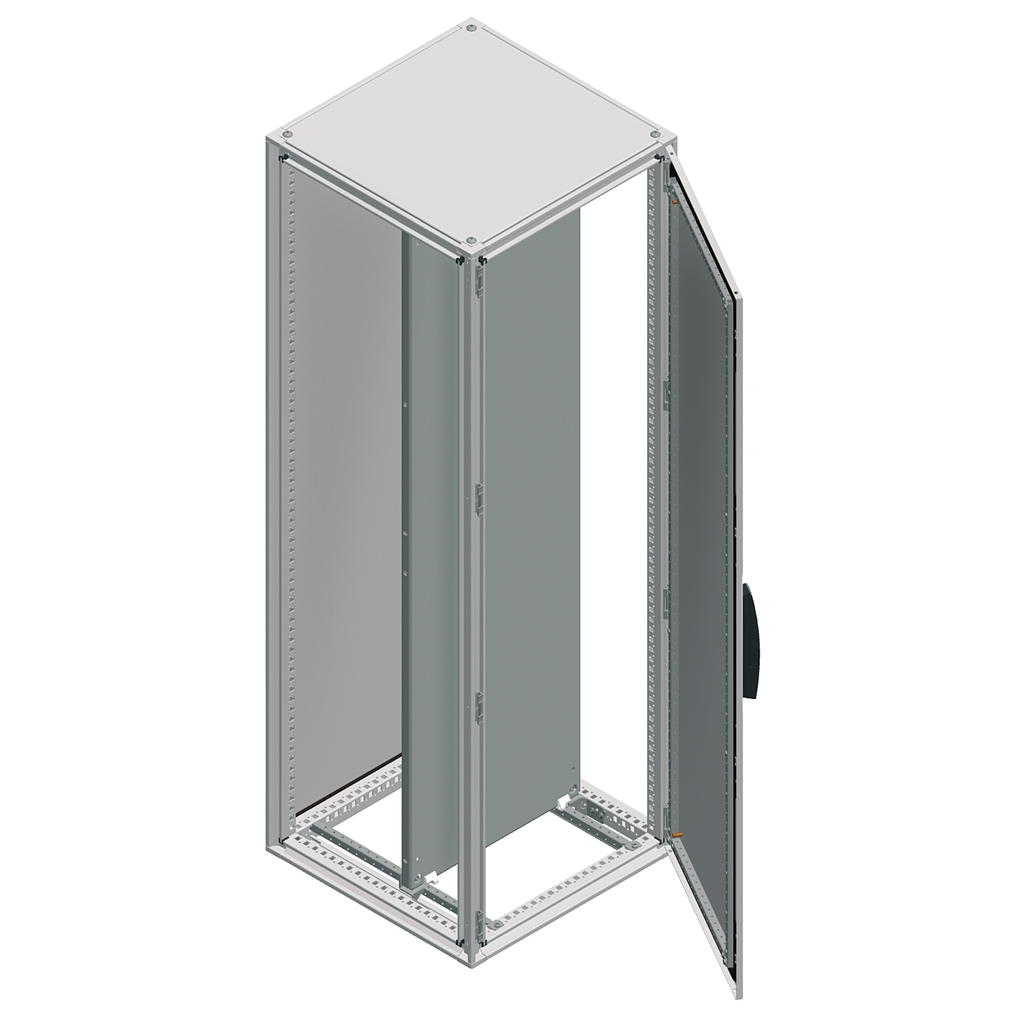

Product image for SQUARED NSYSF20840P Spacial SF encl
Email

SQUARED NSYSF20840P Spacial SF encl

Manufacturer: Square-D / Schneider | Catalog # NSYSF20840P | Cooper Electric Part # 743758
$1,484.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Spacial SF suitable steel enclosure with 2 plain front doors. 2000 x 800 x 400 mm. Assembled. Screw fixed rear panel. Mounting plate included. 4-point closure system with handle and 5 mm double bar lock insert. Galvanised steel for frame and uprights. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

Technical Information

Applications
Multi-purpose
Door Type
Solid Front
Lock Type
5 mm
Material
Steel
Net Weight
122 kg
Number of Doors
Front 1
Range
Spacial
Size
15.75 in
Standard
IEC 62208
Surface Finish
Epoxy-polyester Powder
Type
Suitable enclosure

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL

General Product Info

12-Digit UPC
785901883913
Color
Enclosure Gray RAL 7035),Handle Black RAL 9005)
Construction
Perforated structure with a pitch of 25 mm;Panels and doors built into the structure;Formed from a single section;Vertical uprights joined with top and bottom frames
GTiN
03606485117676
Product UPC
78590188391
Weight
122 kg

Dimensions

Enclosure Depth
400 mm
Enclosure Height
2000 mm
Enclosure Wdth
800 mm
Height
2000 mm
Warranty Length
18 mth
Width
800 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Spain
