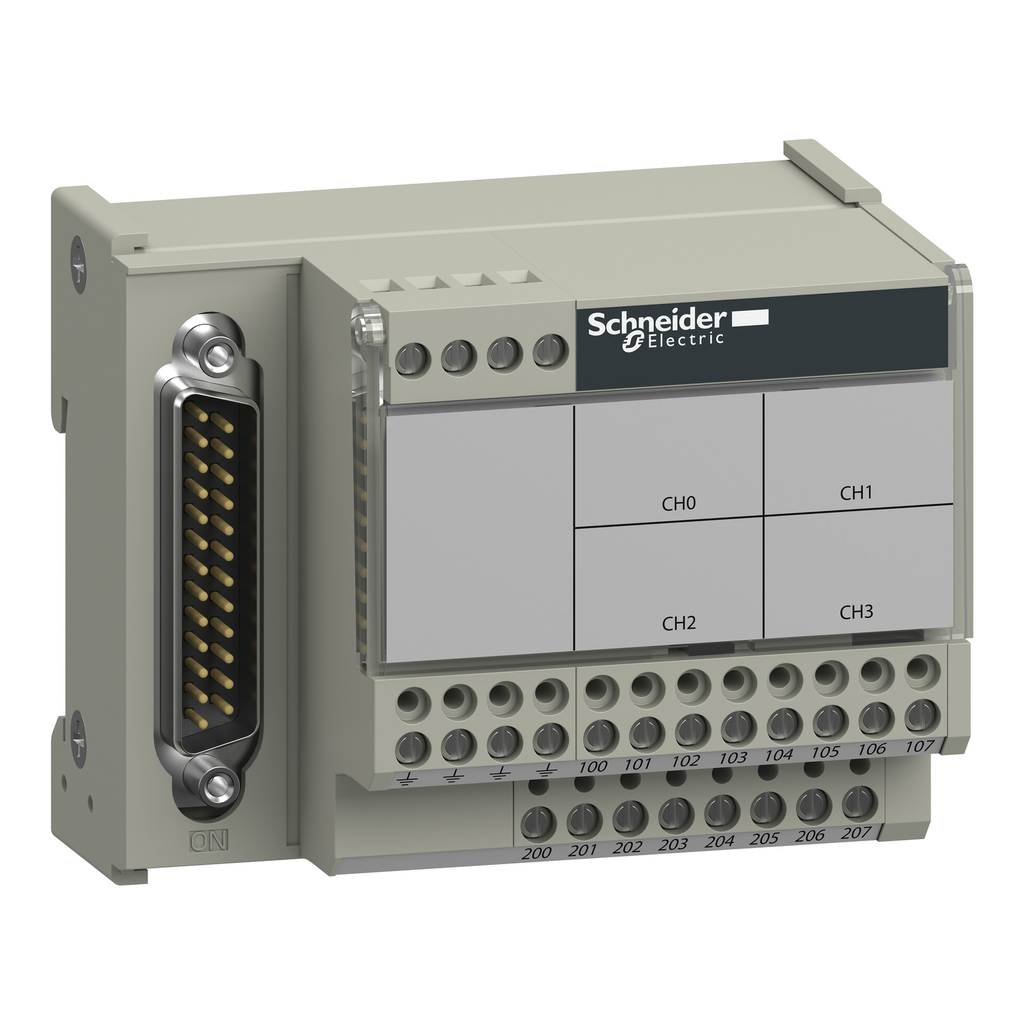

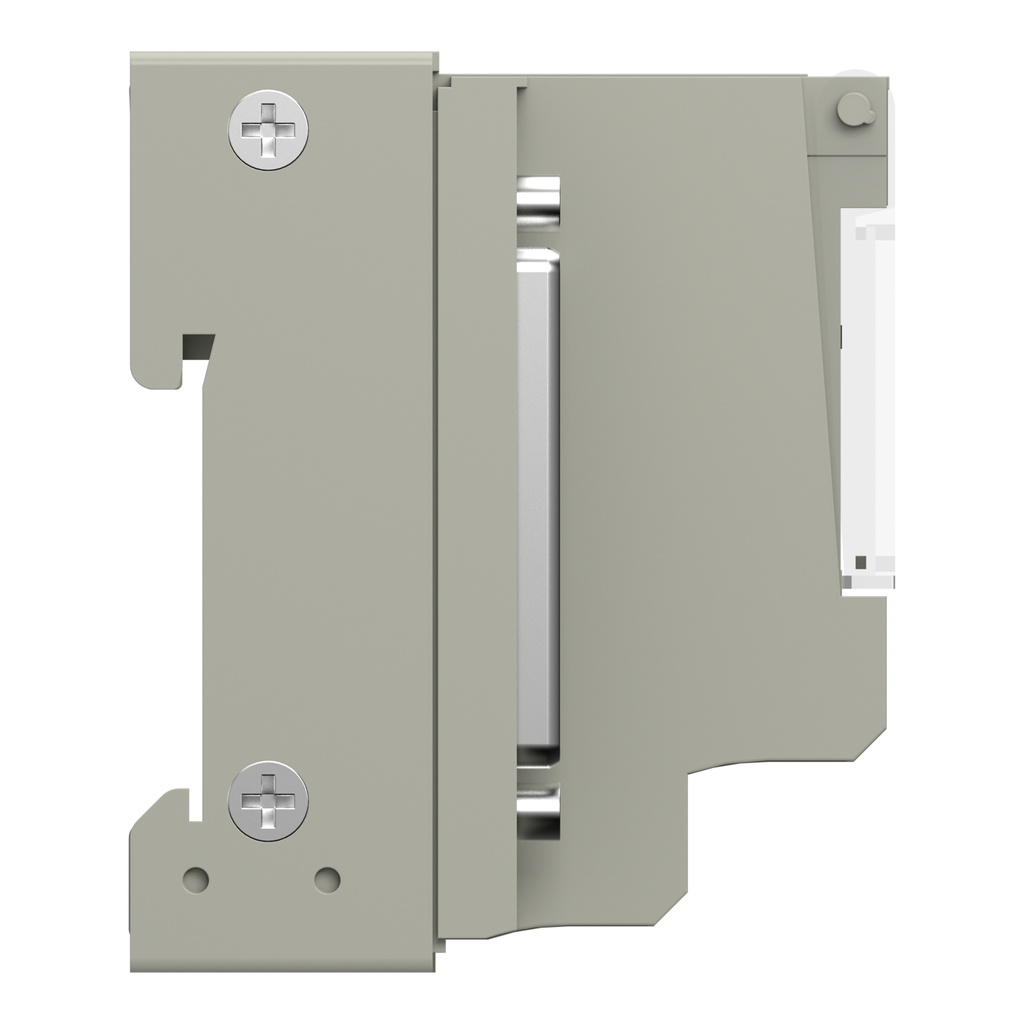

Product image for Square D ABE7CPA410 Screw Terminal Connection Sub Base
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Square D ABE7CPA410 Screw Terminal Connection Sub Base

Manufacturer: Square-D / Schneider | Catalog # ABE7CPA410 | Cooper Electric Part # 739412
$543.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This product is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. This connection sub-base is for distribution of 4 analogue channels protected. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXAMI0410 analogue input module. It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Technical Information

Applications
FOR ANALOGUE CHANNELS
Capacity
4 CHANNELS
Enclosure
IP20 CONFORMING TO IEC 60529
Net Weight
0.18 kg
Number of Channels
4
Storage Temperature
-40-80 degrees C IEC 61131-2
Temperature Rating
0-60 A?degrees C IEC 61131-2
Type
Connection sub-base for analogue channels

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ADVANTYS

General Product Info

12-Digit UPC
595863931597
GTiN
03595863931594
Product UPC
78590150184
Weight
0.18 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,DNV,GL,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
