Hubbell HBL9350 30 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-30R Black Phenolic Straight Blade Device Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL9350 | Cooper Electric Part # 73807
$71.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

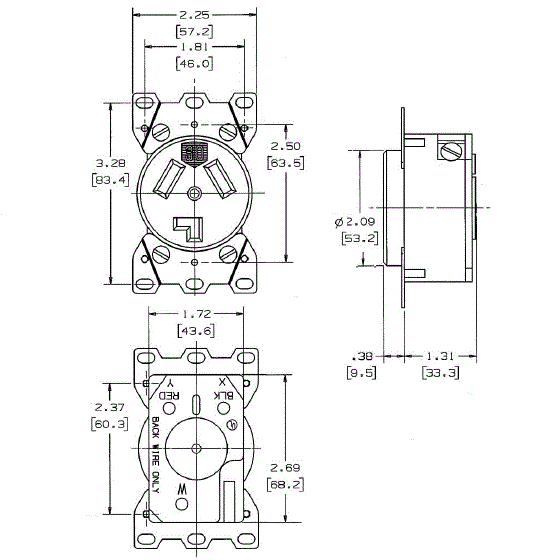

Product Spec Sheet
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 30A 125/250V, 10-30R, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty
Conductor Size
10-4 AWG
Connection Type
Back and Side Wired
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Non-Grounding
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
10-30R
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E2186,NEMA® WD-6,UL
TC Connection
Back and Side Wired Terminal Screws
Type
Heavy Duty
Voltage
2,000 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
12-4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015255
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585015255
Product UPC
78358501525
Listings
  • UL Listed File E2186
  • CSA Certified
  • NEMA® WD-6 Compliant
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
