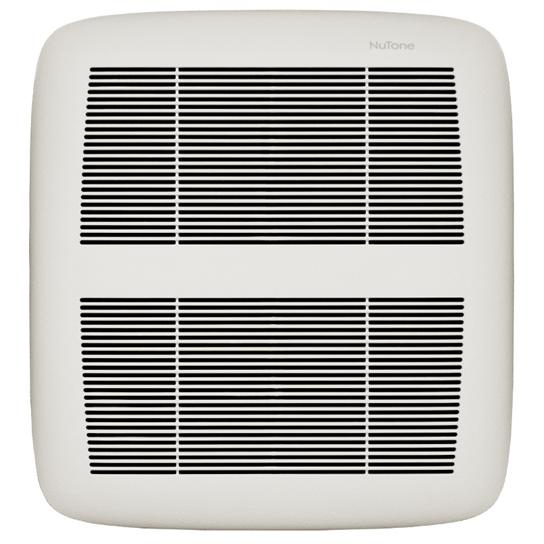

Broan XN80 80 CFM Energy Star Qualified Fan

Manufacturer: Nutone | Catalog # XN80 | Cooper Electric Part # 737436
$268.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ULTRA Single-Speed Energy Star Fan, 80 CFM, <0.3 Sones

Technical Information

Amperage
0.1 Amp
Applications
For Bathrooms Up To 75 SQ-FT
Duct Size
6 in
Light Type
No Light
Nightlight
No
Rated Sones
<0.3
Standard
Energy Star Certified,HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only)
Type
Single-Speed DC Motor Fan
Wattage
5.8 Watt

Manufacturer Information

Brand
Broan-NuTone
Sub Brand
Ultra

General Product Info

12-Digit UPC
026715201181
Color
White
Grille Material
Polymeric
GTiN
00026715201181
Product UPC
02671520118
Weight
9.2 lb

Dimensions

Grille Length
13 in
Grille Width
14 in
Housing Height
7-5/8 in
Housing Length
10-1/2 in
Housing Width
11-3/8 in
Warranty Length
3 yr
Overview
  • Snap-in housing and blower further simplify installation since you can hear and feel when they are properly seated. Easy-to-position carriage allows housing location adjustment between joists so you can control the correct ceiling placement
  • 80 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 75 square feet, so your vision will always be clear and your surroundings will always be comfortable
  • NuTone ULTRA GREEN Series Fans deliver everything you wished for in a bath fan premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards around the United States.
  • ULTRAQuick Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws, snap-in housing, snap-in blower and an inside-out mounting duct connector making installation up to 60% faster in retrofits and up to 20% faster in new construction, saving you time, money and aggravation
  • Compatible with Radiation Damper RDFU which helps prevent flame and heat from spreading to other areas in multi-level buildings
  • ULTRASmart DC Motor & Control Technology provides energy efficiency almost 10 times greater than ENERGY STAR requirements and maintains rated power (CFM) in nearly every installation. You have confidence you're getting the expected performance and won't even notice the fan usage on your utility bill

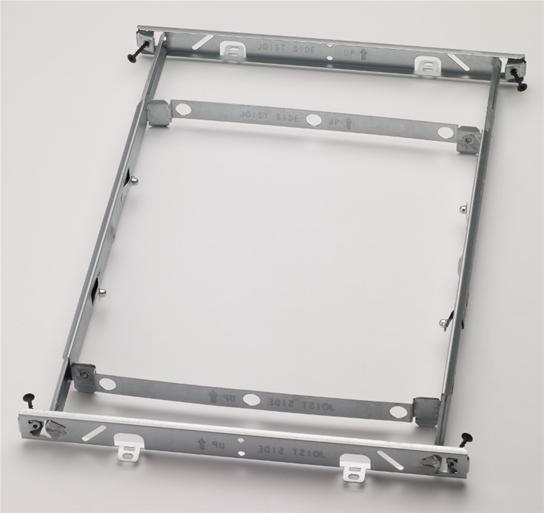

  • Unique telescoping mounting frame can be placed and fastened through drywall hole because it expands from 14\" to 24\" and fits any type of joist, I-Joist or truss construction for a no guesswork\" installation to make the work fast and easy
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • ULTRASilent with QStream Sound Technology results in operation at less than 0.3 Sones the quietest sound rating attainable -- for an environment that is so quiet, you'll likely forget the fan is on
  • Retrofit installations can be done entirely from the room-side no attic access required. This means a faster, easier installation, so you can move on to something else
