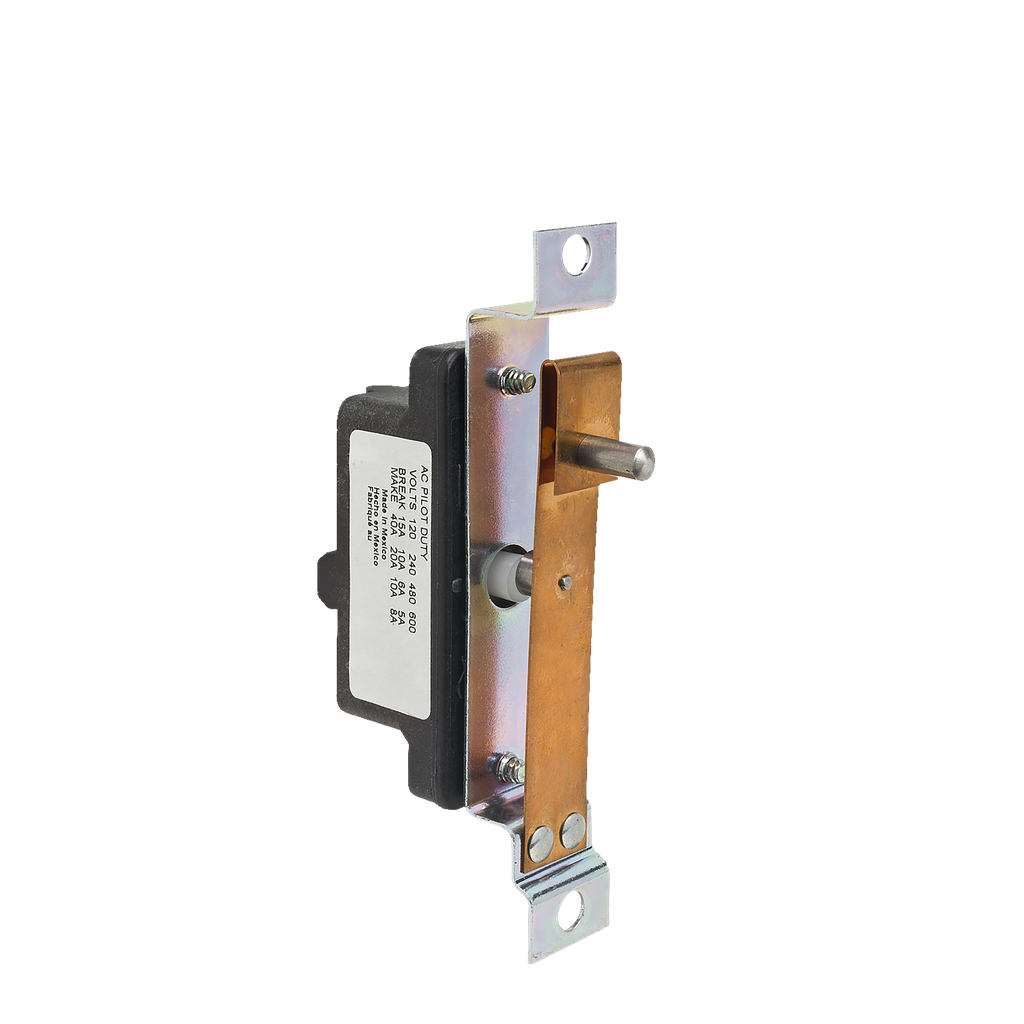

Product image for TES 9007CO7 Snap switch, 9007CO, spring return plastic plunger, 10A, 600V, 2NO/2NC
Image thumbnail 0
Image thumbnail 1
Email

TES 9007CO7 Snap switch, 9007CO, spring return plastic plunger, 10A, 600V, 2NO/2NC

Manufacturer: TES Electric | Catalog # 9007CO7 | Cooper Electric Part # 737337
$114.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Industrial snap switches are used as the electrical contacts within many control circuits and products. This two stage snap switch has a thermoplastic plunger. This two stage snap switch has two normally open and two normally closed snap action contacts. Snap switch contacts have an B600 inductive ratings and a 10A resistive rating. Snap switch is also rated for 0.2A at 125VDC and 0.1A at 250VDC. This snap switch is 2.50 inches tall, 0.83 inches wide and 1.14 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Technical Information

Action
Snap action;Linear
Actuator
Cast zinc;Plunger head
Amperage
0.6 Amp 600 V AC, B600 NEMA RATING DESIGNATION-0.75 Amp 480 V AC, B600 NEMA RATING DESIGNATION-1.5 Amp 240 V AC, B600 NEMA RATING DESIGNATION-3 Amp 120 V AC, B600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.2 Amp 125 V DC,10 Amp
Body Material
Cast Zinc
Body Type
Fixed NULL
Contact Configuration
Form ZZ
Contact Material
Silver
Enclosure
NEMA 1 NEMA TYPE 250
Material
Metal
Net Weight
0.5 lb
Number of Poles
2 Pole
Number of Steps
2
Operating Temperature
-20-185 Adegrees F
Size
1.14 in
Storage Temperature
-20-185 degrees F
TC Connection
1-2 6 BINDER HEAD SCREW TERMINALS AWG 22...AWG 14)
Type
Snap basic limit switch
Voltage
600 Volt

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007AO/CO

General Product Info

12-Digit UPC
785901837220
GTiN
00785901837220
Product UPC
78590183722
Weight
0.5 lb

Dimensions

Depth
1.14 Inch
Height
2-1/2 Inch
Warranty Length
18 mth
Width
0.83 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
