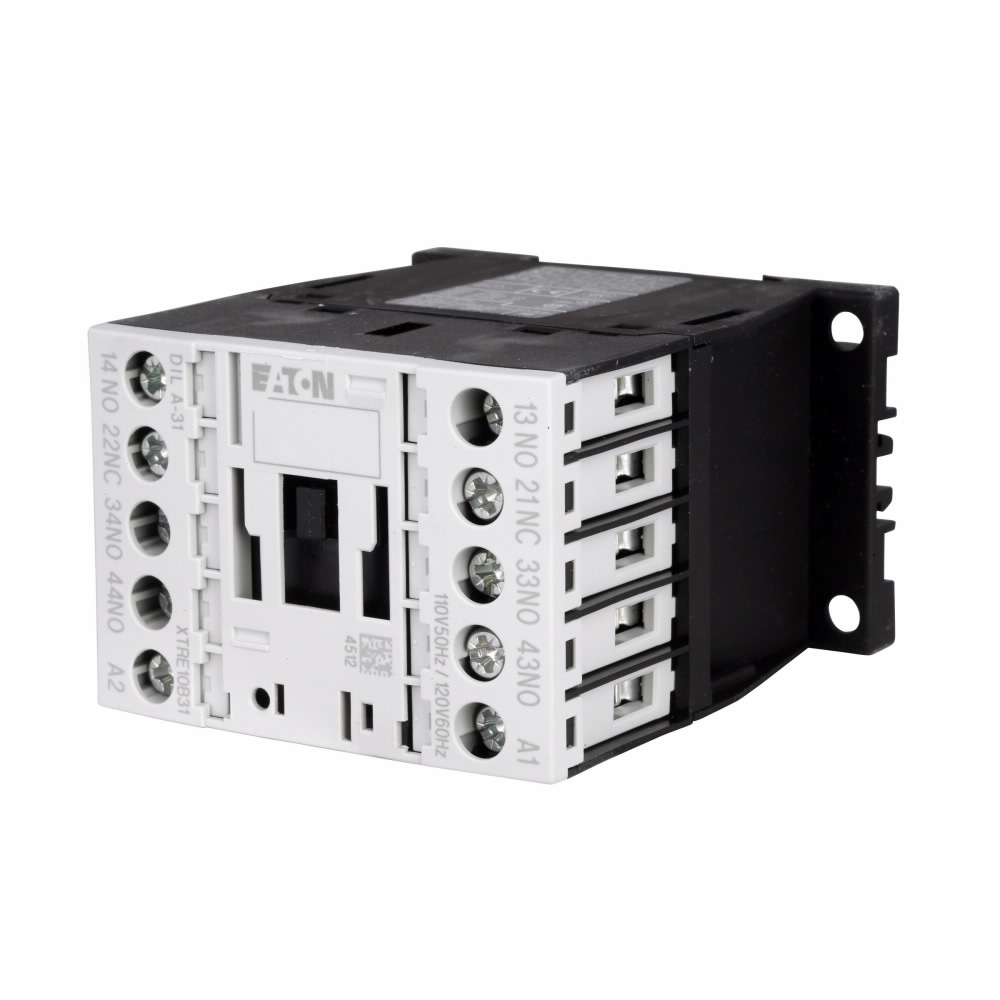

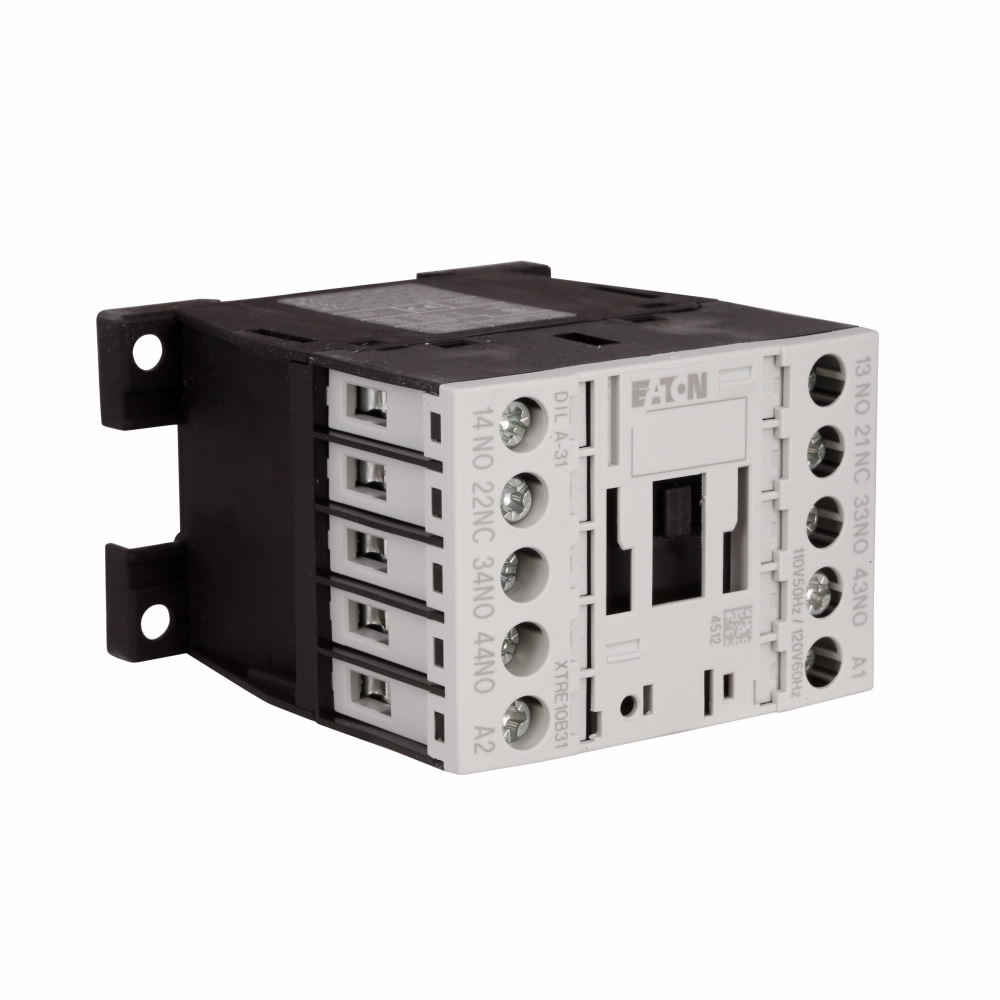

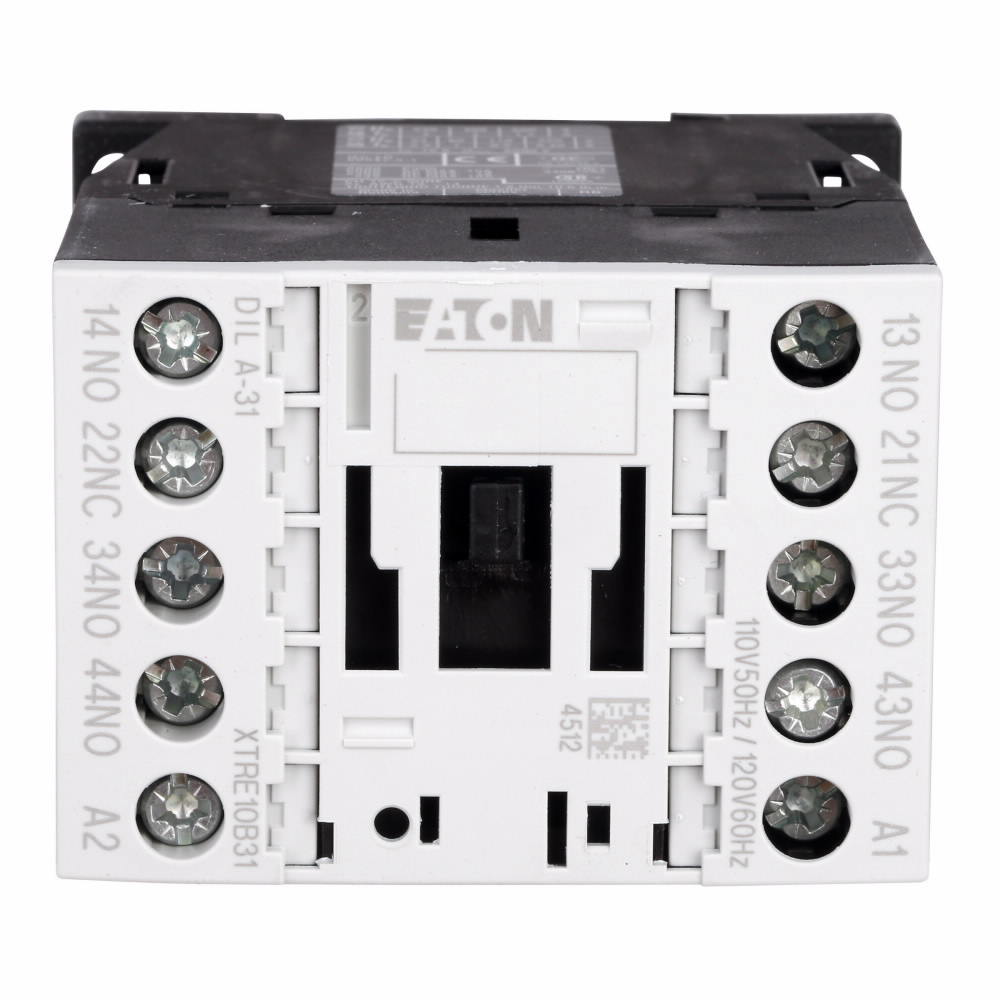

Product image for Cutler-Hammer XTRE10B31A XT IEC Control Relay, Screw terminals, 45 mm - standard Frame size, 3NO-1NC contact configuration, 110V 50 Hz, 120V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 4A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Cutler-Hammer XTRE10B31A XT IEC Control Relay, Screw terminals, 45 mm - standard Frame size, 3NO-1NC contact configuration, 110V 50 Hz, 120V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 4A

Manufacturer: Cutler-Hammer / Eaton | Catalog # XTRE10B31A | Cooper Electric Part # 737319
$67.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
XT IEC Control Relay, Screw terminals, 45 mm - standard Frame size, 3NO-1NC contact configuration, 110V 50 Hz, 120V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 4A at 380/400/415V rated operational voltage

Technical Information

Amperage
10 Amp
Applications
Commercial, Institutional Buildings, Structures
Coil Voltage
110/120 V
Contact Configuration
3 NO, 1 NC
Frame
45 mm
Number of Poles
4 Pole
Temperature Rating
-25 to 50 degrees C
Terminal Type
Screw Terminals
Type
Standard
Voltage
12-550 Volt at 50 Hz, 600 Volt at 60 Hz AC Control, 12-220 Volt, 24-240 VAC/VDC Control

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782116362301
GTiN
04015082763619
Product UPC
01508276361
Weight
.7 lb

Dimensions

Height
2 Inch
Length
3 Inch
