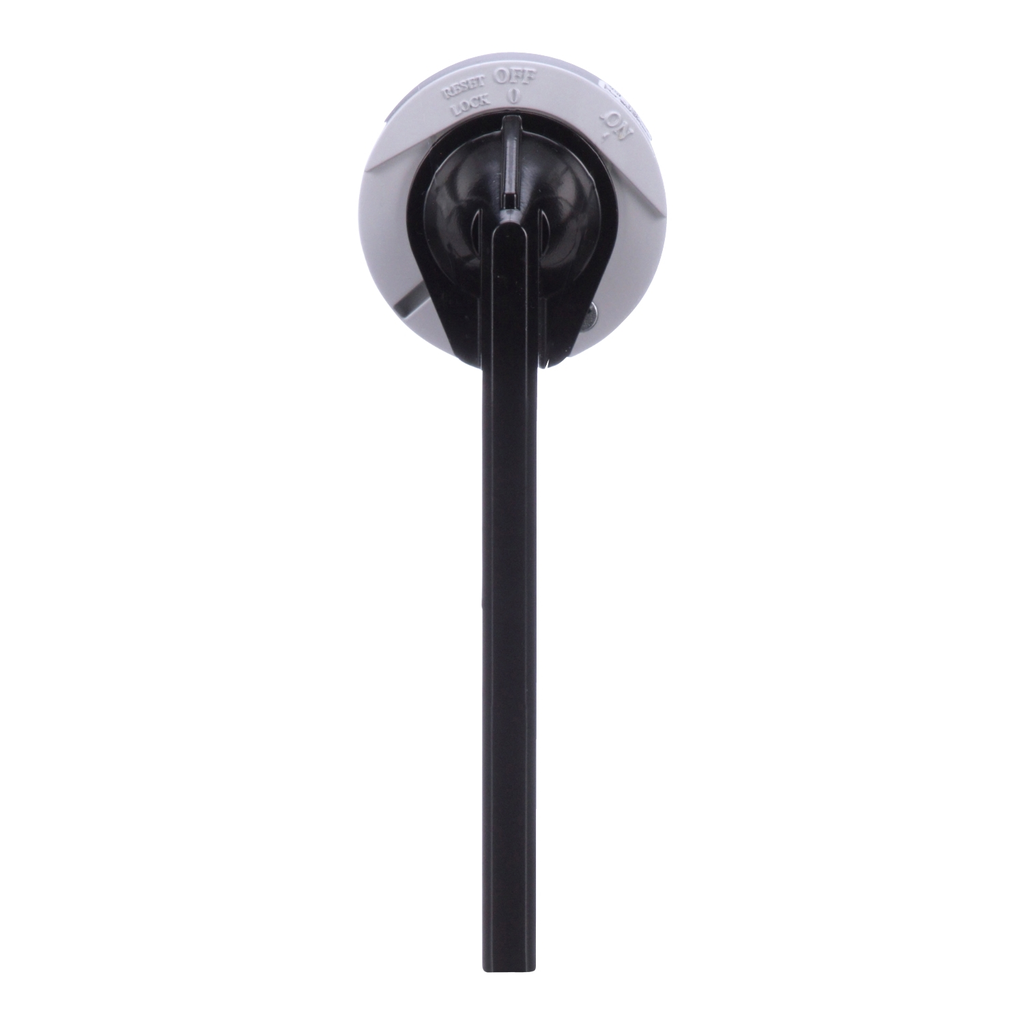

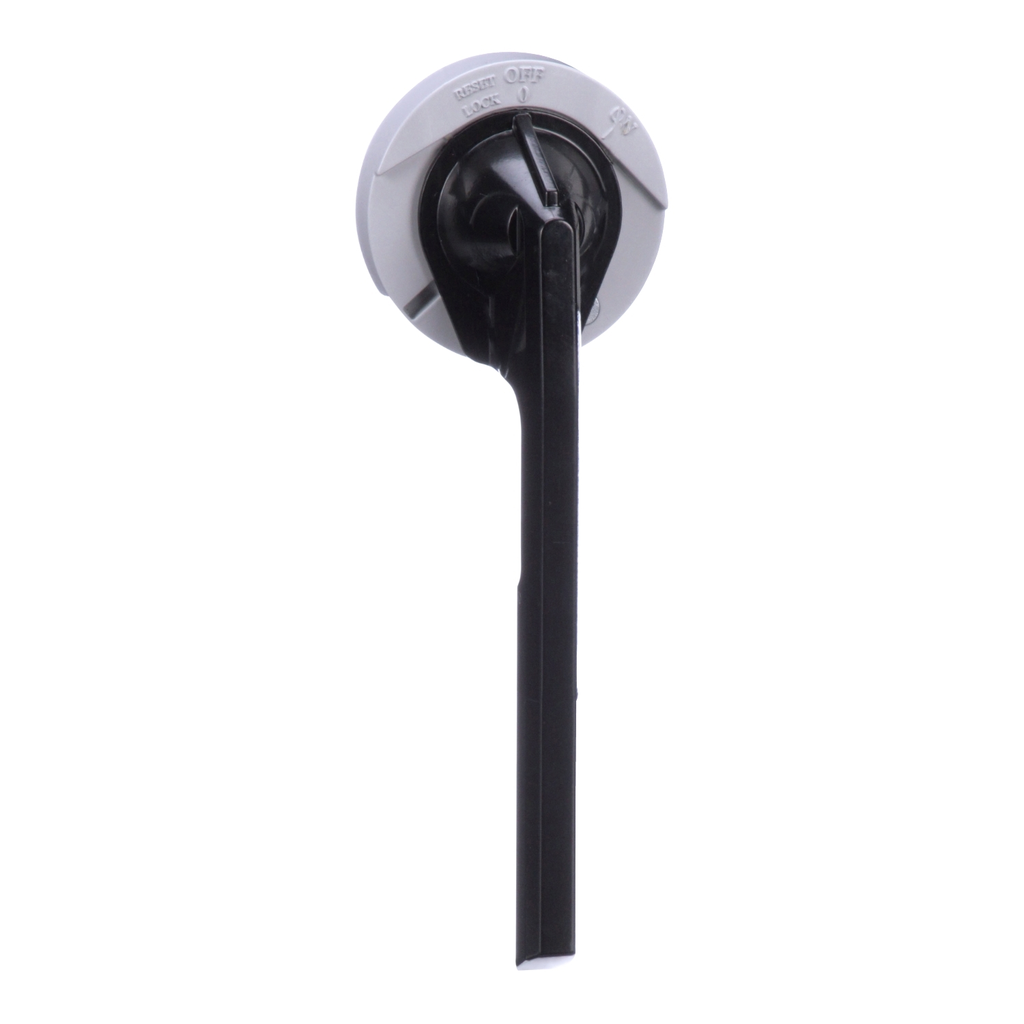

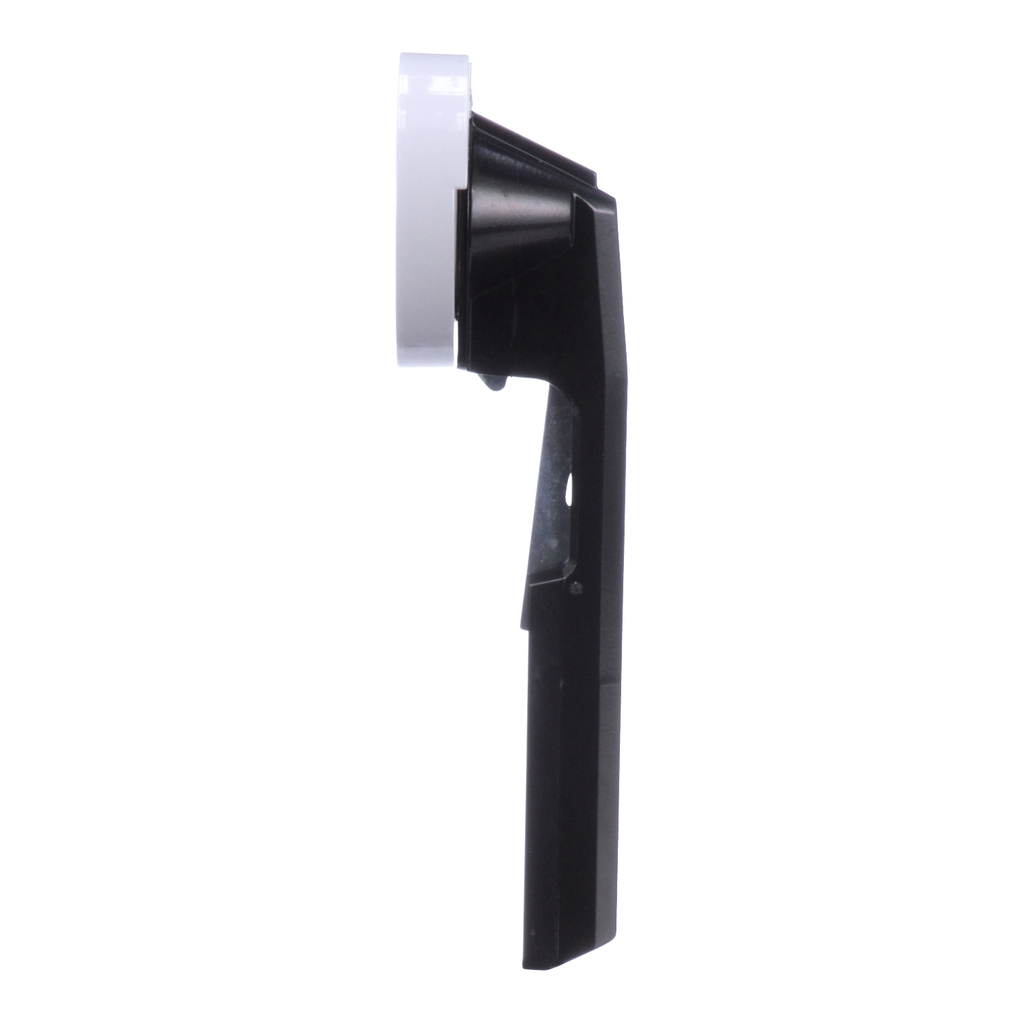

Square D 9421LH8 NEMA Operating Mechanism Handle

Manufacturer: Square-D / Schneider | Catalog # 9421LH8 | Cooper Electric Part # 736199
$92.05 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly was for legacy circuit breakers. This handle assembly has an 8 inch handle. This painted handle assembly is rated for NEMA Type 3 and 4. This handle assembly is UL Component Recognized and CSA certified.

Technical Information

Actuator
8 INCH HANDLE - PAINTED BLACK
Applications
9421LM1 OR LX7 OPERATING MECHANISM,NEMA 1/3R/12 ENCLOSURE
Enclosure
RATED FOR NEMA 1/3R/12 ENCLOSURES
Enclosure Rating
1, 3R, 12
Enclosure Type
NEMA 1/3R/12 enclosure
Size
8 IN
Surface Finish
Painted Black
Type
HANDLE ASSEMBLY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901830092
GTiN
00785901830092
Product UPC
78590183009
Used With
9421LM1 or LX7 operating mechanism

Dimensions

Handle Length
8 in
Length
8 Inch
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Features
  • Used with all disconnect switch and circuit breaker installations
  • Designed for variable depth, flange mounting applications
  • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
  • Two mounting methods offered for flexibility
  • Disconnect switches were designed for control panel installations
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
