Thomas & Betts F9011 14 AWG 20.5 mm.. Non-Insulated Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F9011 | Cooper Electric Part # 735833
$35.14/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Non-Insulated Ferrule, Length .276 Inches/7mm, Inner Diameter .087 Inches/2.2mm, Outer Diameter .139 Inches/3.4mm, Conductor Size 14 AWG/2.5mm2, Copper, Tin Plated

Technical Information

Conductor Size
14 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Standard
Wire Size
14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335889
Color
Metallic
Finish
Tin Plated
GTiN
05415022204087
Product UPC
78621033588

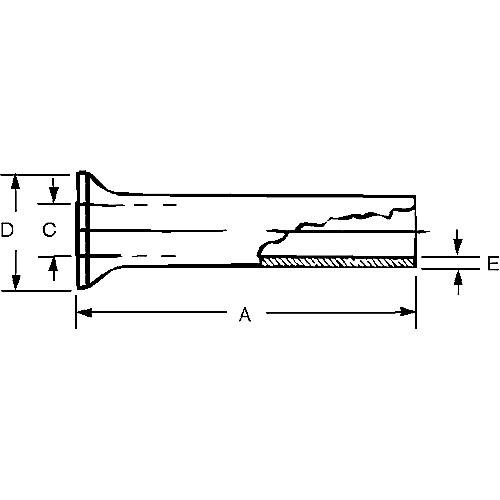

Dimensions

Inside Diameter
0.087 in
Outside Diameter
0.139 in
Overall Length
0.276 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
