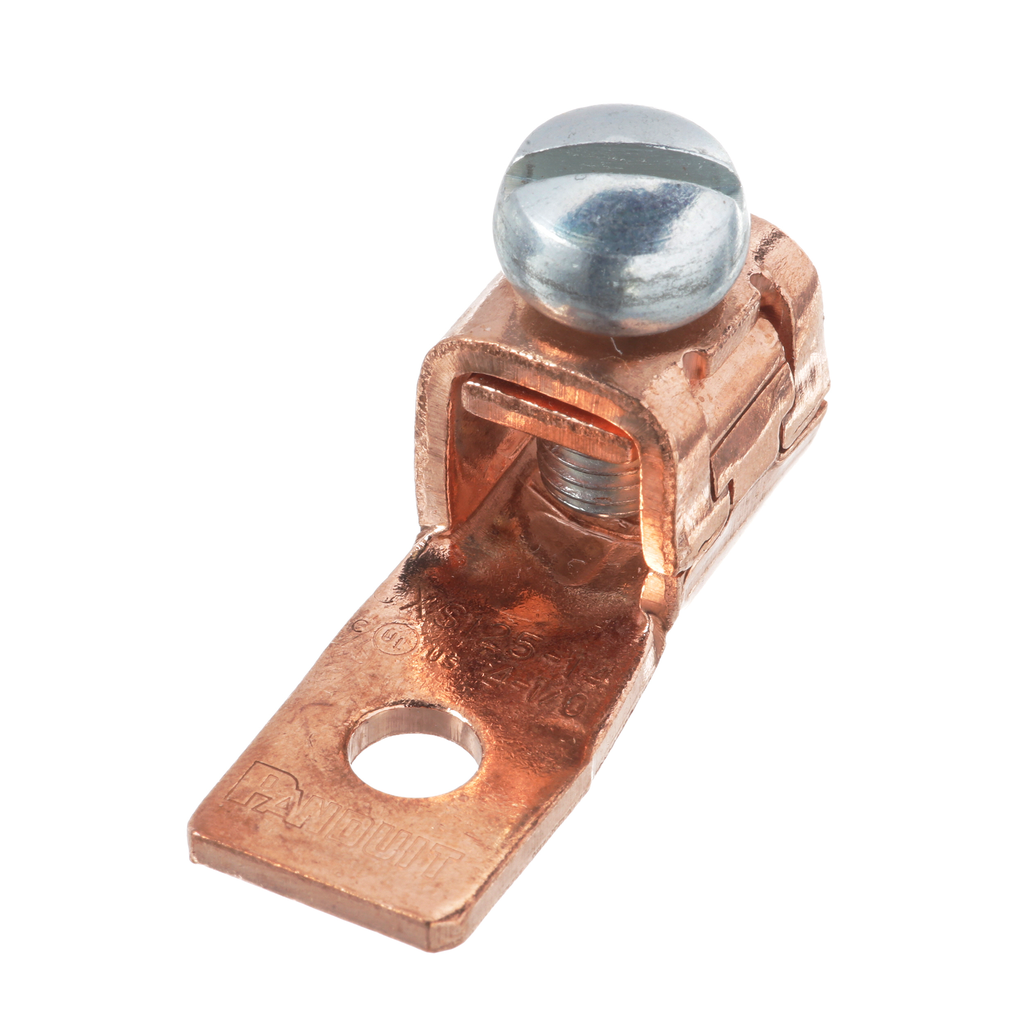

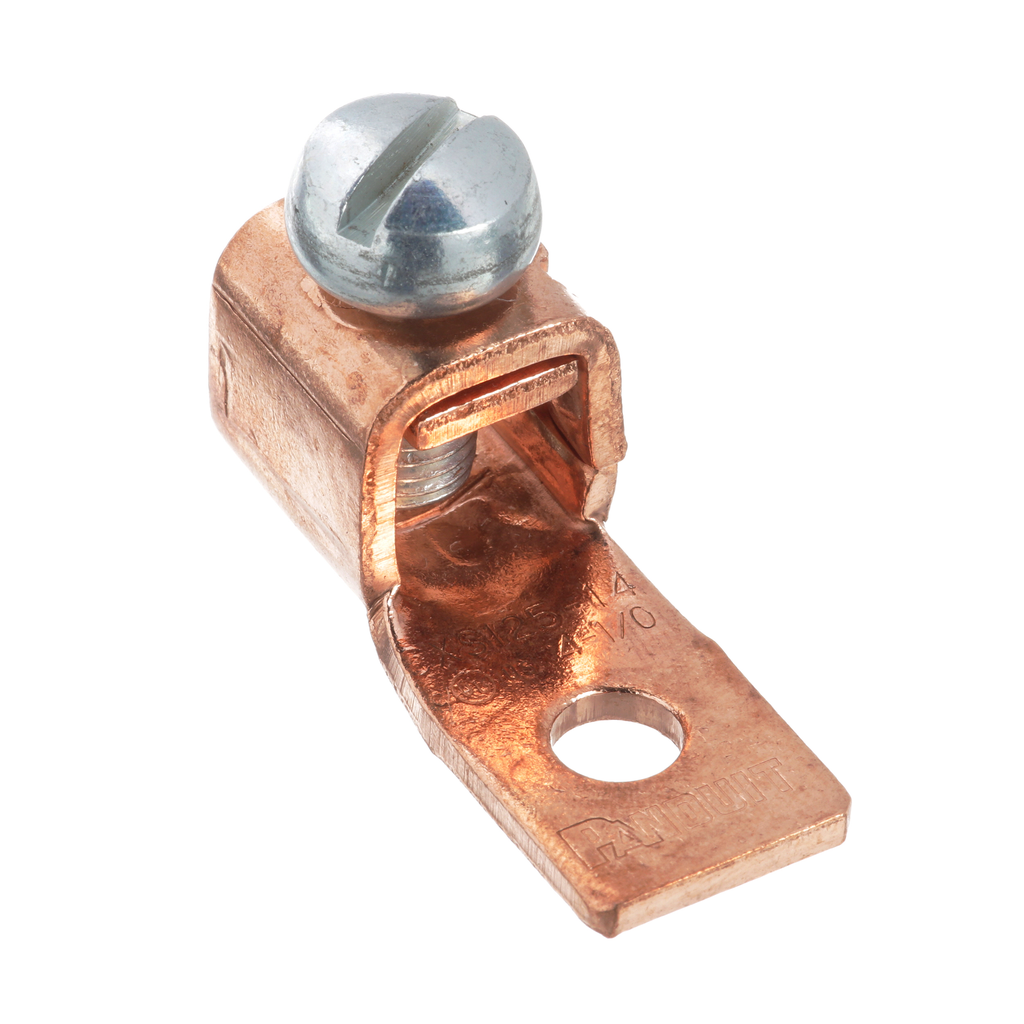

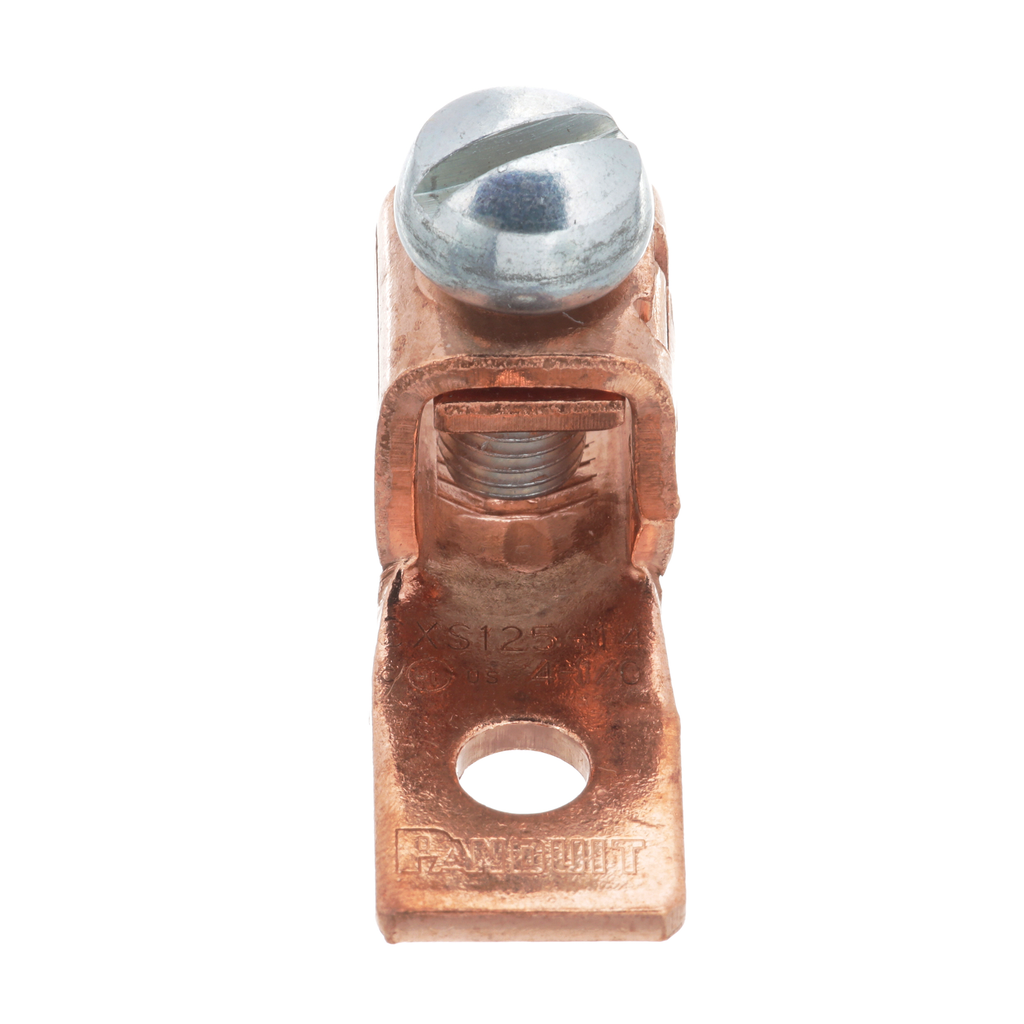

Product image for Panduit CXS125-14-Q Mechanical Con-Lugs, Fixed Tongue, Tin Plate Copper, One 1/4" Stud
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit CXS125-14-Q Mechanical Con-Lugs, Fixed Tongue, Tin Plate Copper, One 1/4" Stud

Manufacturer: Panduit Corp | Catalog # CXS125-14-Q | Cooper Electric Part # 734750
$675.68/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing Product Brochure
One-hole, copper, single barrel, straight fixed tongue lug, #4 - 1/0 AWG, 1/4 (6.4mm) stud hole.

Technical Information

Amperage
NA Amp
Barrel Length
0.6 in
Bolt Size
1/4 in
Cable Size
AWG
Conductor Size
4-1/0 AWG
Conductor Type
Copper
Material
Copper
Number of Conductors
1
Number of Holes
1 Hole
Stud Size
1/4 In.
Temperature Rating
90 degrees C
Tongue Thickness
0.09 in
Tongue Type
Straight
Tongue Width
0.62 in
Type
Single Barrel
Voltage
600 VAC

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983030477
Finish
Tin Plated
GTiN
00074983030477
Product UPC
07498303047
UNSPSC
39121408

Dimensions

Height
0.73 Inch
Overall Length
1.6 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus listed up to 600V and temperature rated to 90 degrees C
