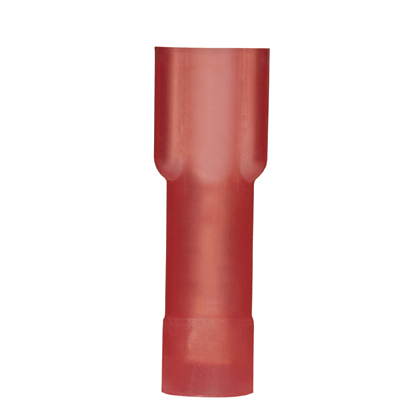

Product image for Panduit DNG18-187FB-C Loose Piece Disconnect
Email

Panduit DNG18-187FB-C Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DNG18-187FB-C | Cooper Electric Part # 734249
$227.63/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam - Metal Insulation Grip
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
TC Connection
Funnel Entry - Double Crimp
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Supra-Grip™

General Product Info

12-Digit UPC
074983687503
Color
Red
Finish
Tinned
GTiN
00074983687503
Product UPC
07498368750
UNSPSC
39121409

Dimensions

Height
0.22 Inch
Overall Length
0.89 in
Width
0.29 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
