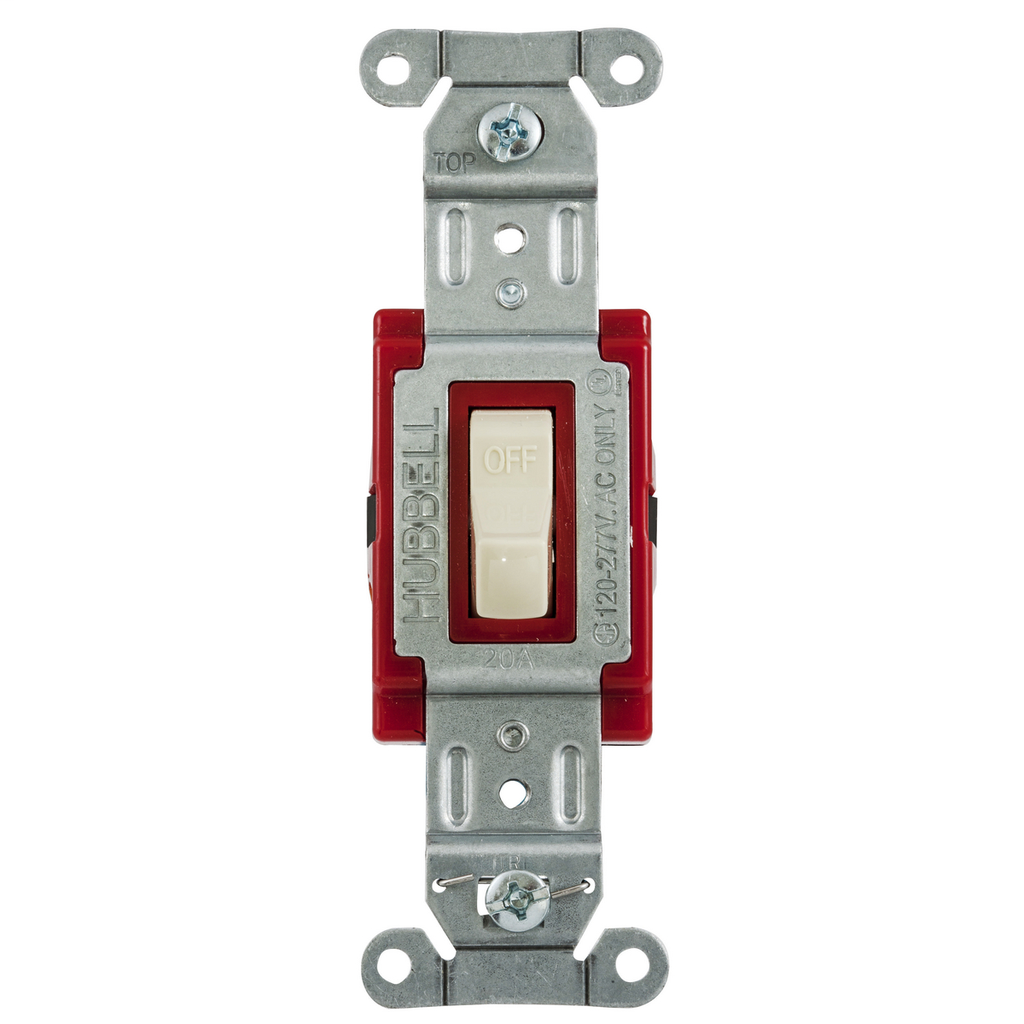

Product image for Hubbell SNAP1221INA 20 Amp 120/277 VAC 1-Pole Ivory Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell SNAP1221INA 20 Amp 120/277 VAC 1-Pole Ivory Toggle Switch

Manufacturer: Hubbell Wiring Device | Catalog # SNAP1221INA | Cooper Electric Part # 734102
$18.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Single Pole, 20A 120/277V AC, Ivory Toggle, North American

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
General Purpose
Base Material
Thermoplastic
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Cycles
50,000
Operating Temperature
-40 degrees C
Size
4.18 in x 1.3 in x 1.74 in
Standard
UL
Style
Single Pole
Switch Type
Toggle
TC Connection
Connectorized
Toggle Material
Thermoplastic
Type
Toggle
Voltage
120-277 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
SNAPConnect Series

General Product Info

12-Digit UPC
783585186658
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585186658
Product Series
General Purpose
Product UPC
78358518665

Dimensions

Height
1.74 Inch
Length
4.18 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Thread cleaning captive mounting screw
  • Automatic self-grounding staple assures continuity to wall box
