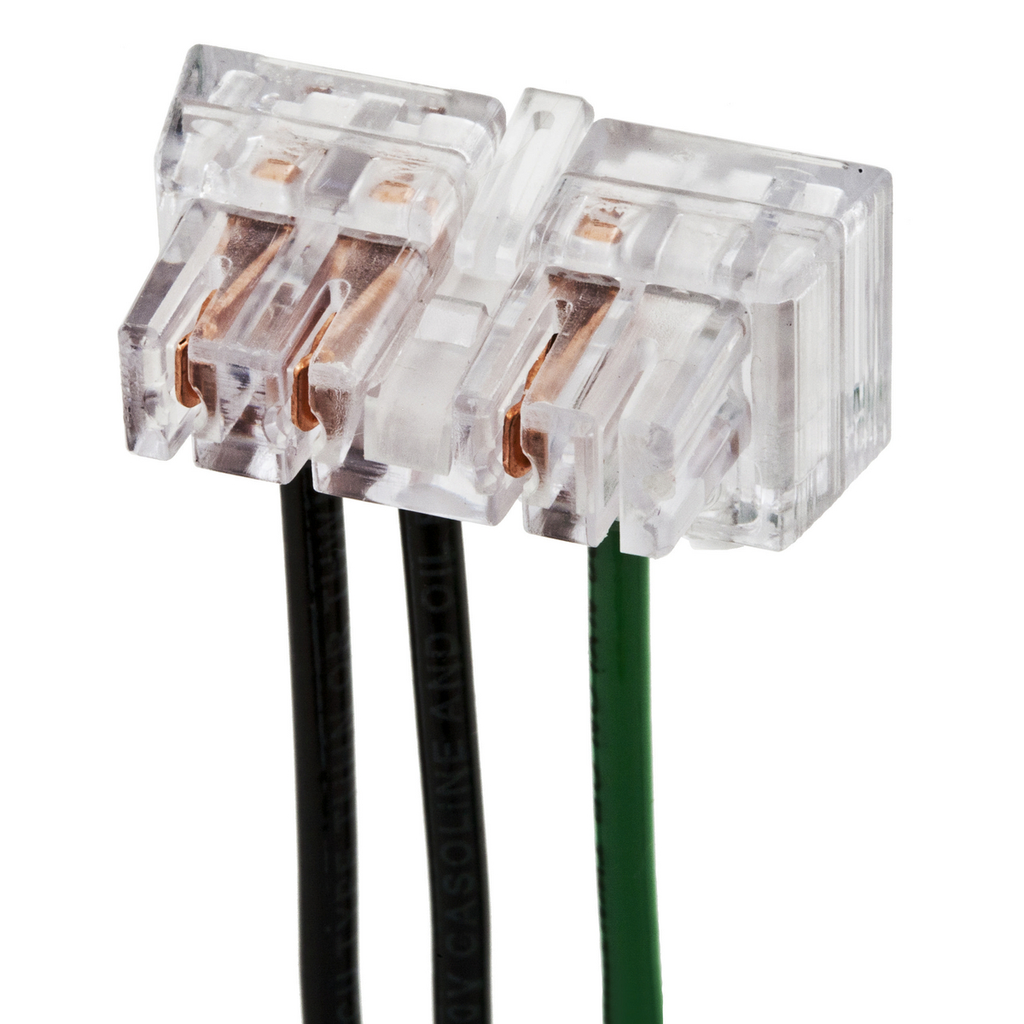

Product image for Hubbell SNAPSP1NA 6 Inch 12 AWG Solid Lead Clear Polycarbonate Right Angle Terminal 1-Pole Pigtailed Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell SNAPSP1NA 6 Inch 12 AWG Solid Lead Clear Polycarbonate Right Angle Terminal 1-Pole Pigtailed Terminal

Manufacturer: Hubbell Wiring Device | Catalog # SNAPSP1NA | Cooper Electric Part # 732846
$7.01/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Single Pole Connector, Solid Wire, 15/20A North American

Technical Information

Action
Positive Snap
Amperage
15/20 Amp
Applications
Accessories
Conductor Size
12 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Enclosure
None
Number of Poles
1 Pole
Operating Cycles
50,000
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
6.5 in x 1.39 in x 0.84 in
Standard
UL
Style
For Single Pole General Purpose And Illuminated
TC Connection
Connectorized
Type
Pigtailed Connector
Voltage
A or 20A 120/277 VAC
Wattage
5540 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
SNAPConnect Series

General Product Info

12-Digit UPC
783585189956
Color
Clear
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585189956
Product Series
Accessories
Product UPC
78358518995

Dimensions

Height
0.84 Inch
Length
6-1/2 Inch
Width
1.380 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Clear terminal housing
  • No exposed live parts
  • Fully insulated
