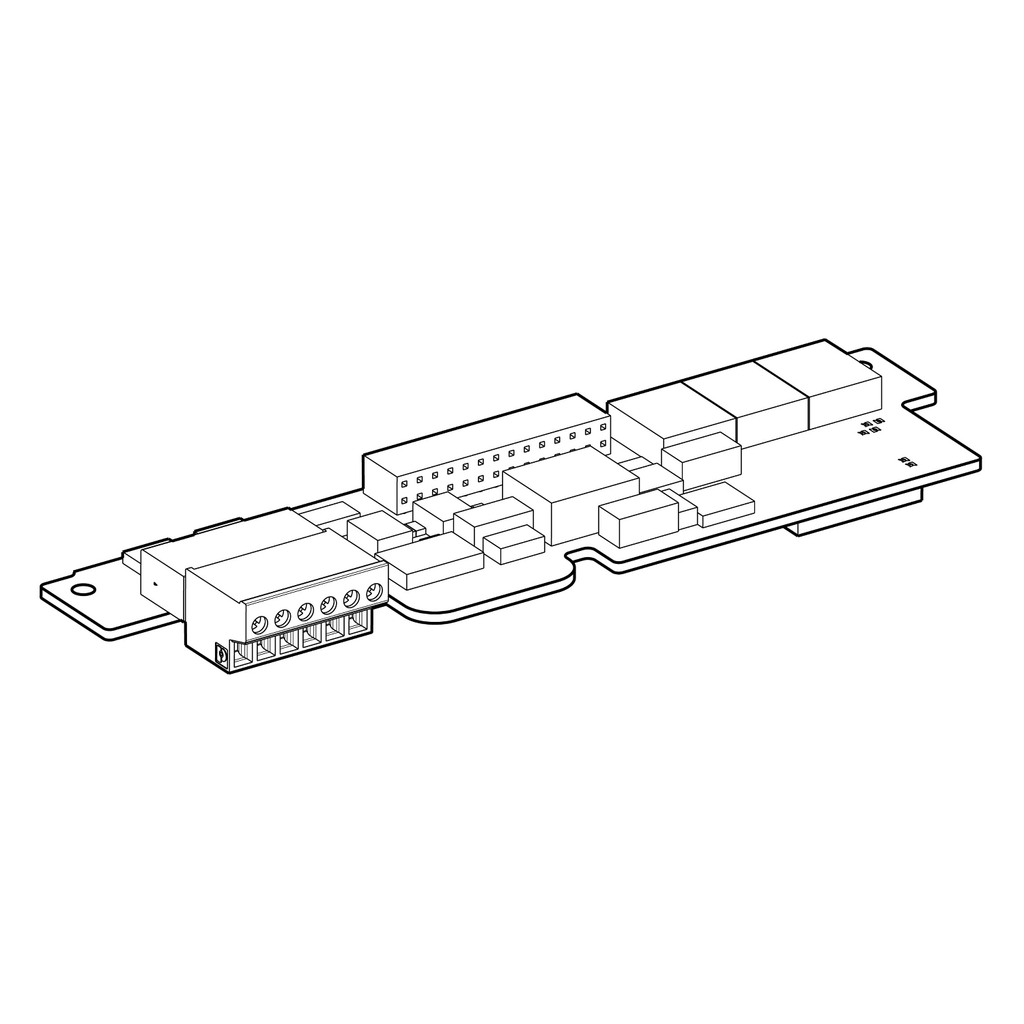

Product image for Square D VW3A3407 ENCODER CARD PUSH-PULL 24 VDC ATV71
Image thumbnail 0
Image thumbnail 1
Email

Square D VW3A3407 ENCODER CARD PUSH-PULL 24 VDC ATV71

Manufacturer: Square-D / Schneider | Catalog # VW3A3407 | Cooper Electric Part # 729772
$116.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.

Technical Information

Applications
Altivar 61Q;Altivar 71Q;Altivar 71;Altivar 61;Altivar Lift
Impedance
1000 ohm
Output
PUSH-PULL OUTPUTS
Size
<= 1640.42 FT (500 M)
Type
Encoder interface card
Voltage
24 Volt DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ALTIVAR

General Product Info

12-Digit UPC
389118067267
GTiN
03389118067264
Product UPC
78590152691

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
