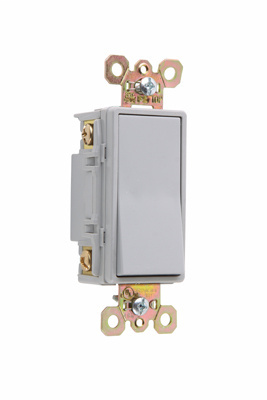

Product image for Pass & Seymour 2624-GRY Four-Way, Back and Side Wire, Decorator Switch, 20 amps, 120/277V -Gray.
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2624-GRY Four-Way, Back and Side Wire, Decorator Switch, 20 amps, 120/277V -Gray.

Manufacturer: Pass & Seymour / Legrand | Catalog # 2624GRY | Cooper Electric Part # 72975
$45.15/ea
ea
Log in or register to view your price, purchase history, and more!
Toggle Decora
15A 20A
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Four-Way, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Actuator
Paddle, Rocker/Button
Amperage
20 Amp
Applications
For Industrial Use
Contact Rating
20 A
Material
Thermoplastic
Number of Poles
2 Pole
Power Rating
4 W
Size
4.25"
Style
Decorator
TC Connection
Back and Side Wired
Terminal Type
Screw
Type
4-Way, Decorator, Halogen-Free
Voltage
120 Volt
Wattage
4 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007539622
Color
Gray
Finish
Gloss
GTiN
00785007539622
Product UPC
78500753962

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Width
1.3 in

Certifications and Compliance

Certifications
CSA,CULUS
Country of Origin
Mexico
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • CSA Listed
