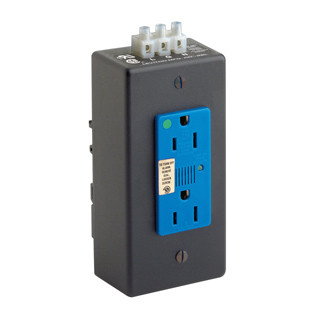

Product image for LEV 3880-DIN BU SURGE PROTECT DIN R
Email

LEV 3880-DIN BU SURGE PROTECT DIN R

Manufacturer: Leviton Mfg Co | Catalog # 3880-DIN | Cooper Electric Part # 727898
$144.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, DIN-Rail Mountable Modules Receptacle, Straight Blade, Industrial Grade, Grounding, Surge Duplex, Indicator Light & Audible Alarm, Terminal Block Wired, Strap - BLUE

Technical Information

Amperage
15 Amp
Applications
Commercial use
Body Material
Thermoplastic,Thermoplastic
Connection Type
Terminal Block
Contact Material
Nickel-Plated Brass
Face Material
Nylon,Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Hospital
Indicator
Audible Alarm,Indicator Light
Material
Polycarbonate
Mounting Type
DIN Rail
NEMA
5-15R,WD-6
Operating Temperature
-10 degrees C
Standard
ANSI C-73
Storage Temperature
-20 To 85 degrees C
TC Connection
Terminal Block
Temperature Rating
-10 to 60 degrees C Operating, -25 to 85 degrees C Storage
Temperature Rise
200 %
Terminal Size
12-18 AWG
Type
Low Voltage, Duplex
Voltage
120 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477076224
Color
Blue
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477076224
Product UPC
07847707622

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Levitons outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
NEMA
  • WD-6
