3M 7626-T-110 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Manufacturer: 3M | Catalog # 7000132641 | Cooper Electric Part # 726924
$907.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure

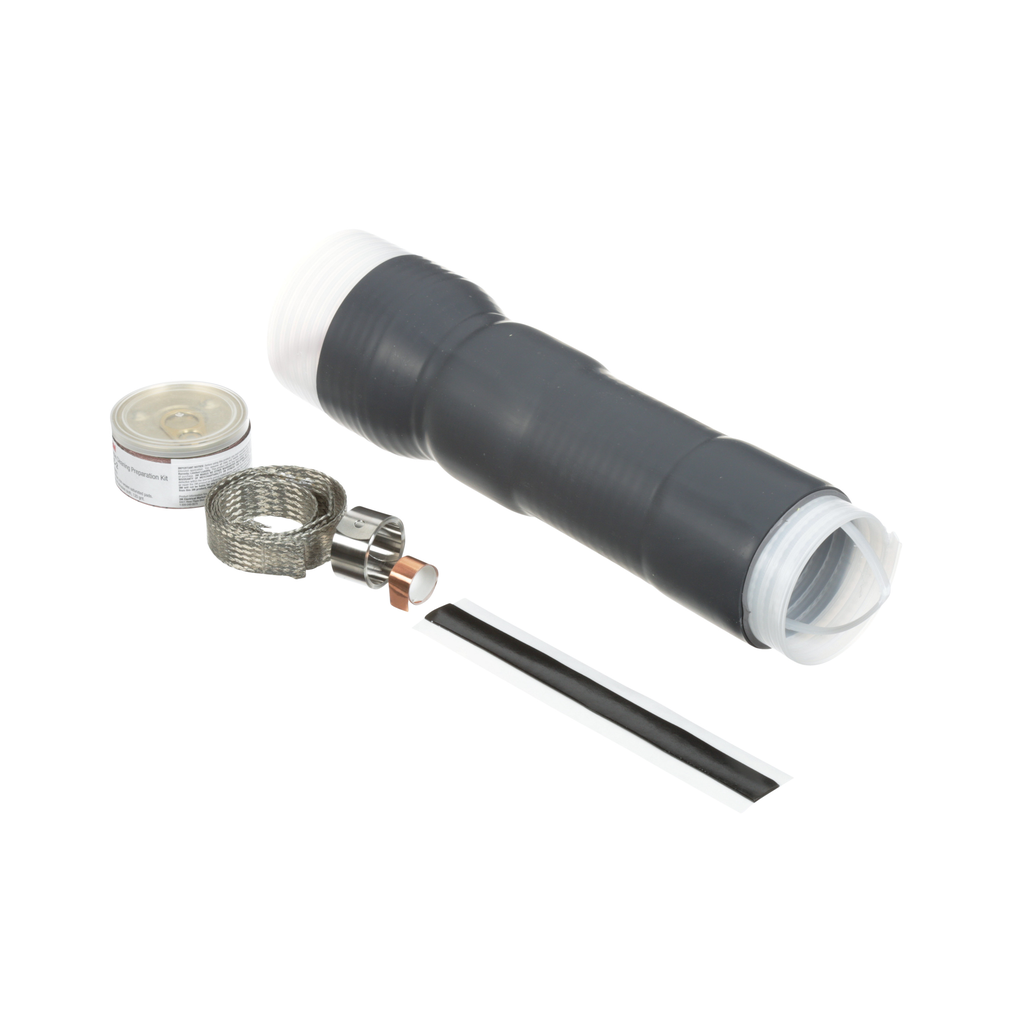

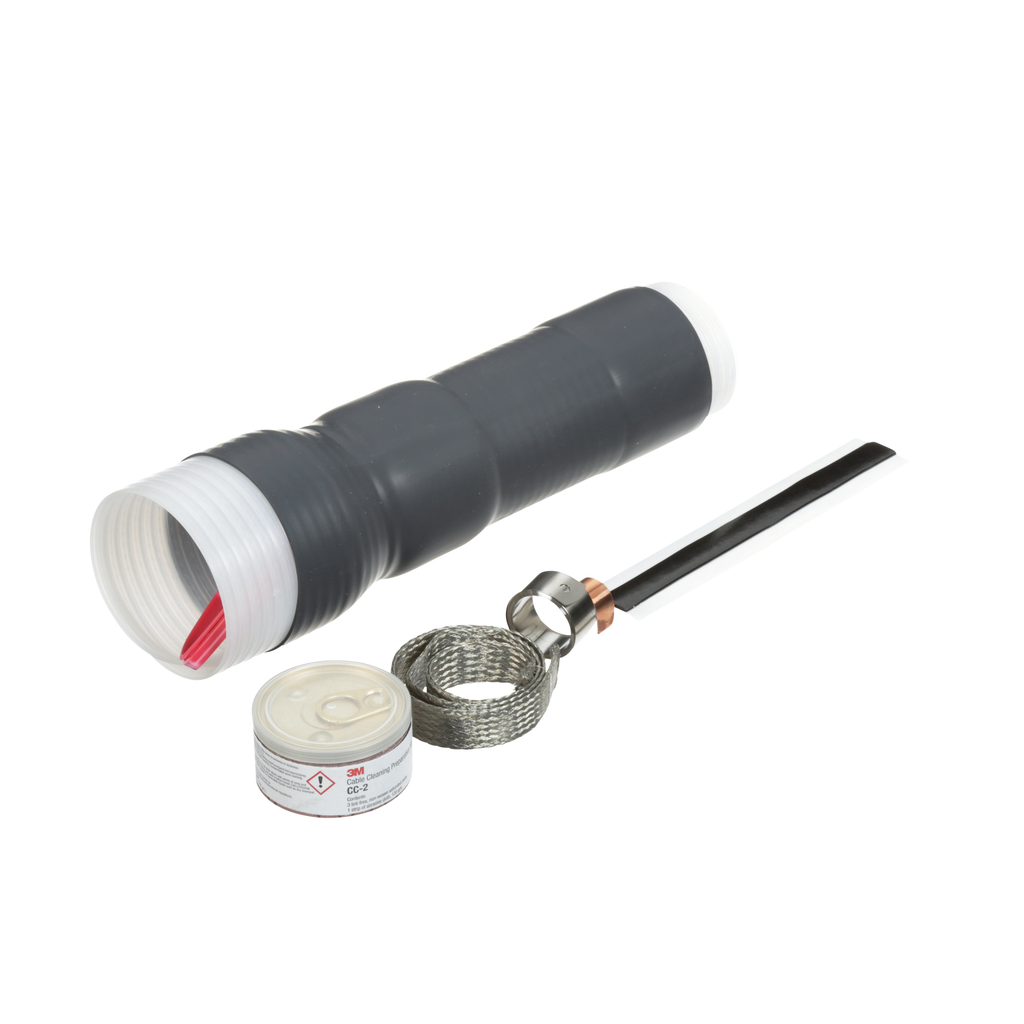

3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7626-T-110 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil and 15 kV: 1250-2000 kcmil.

Technical Information

Applications
For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1250/1500/1750/2000 kcmil
Indoor Outdoor
Indoor Non-skirted
Material
Rubber
Number of Conductors
1
Type
QT-III
Voltage
15 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007417637
GTiN
00054007417637
Product Series
7620-T
Product UPC
05400741763
Used With
1.53 - 2.32 in Cable

Dimensions

Length
12 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
