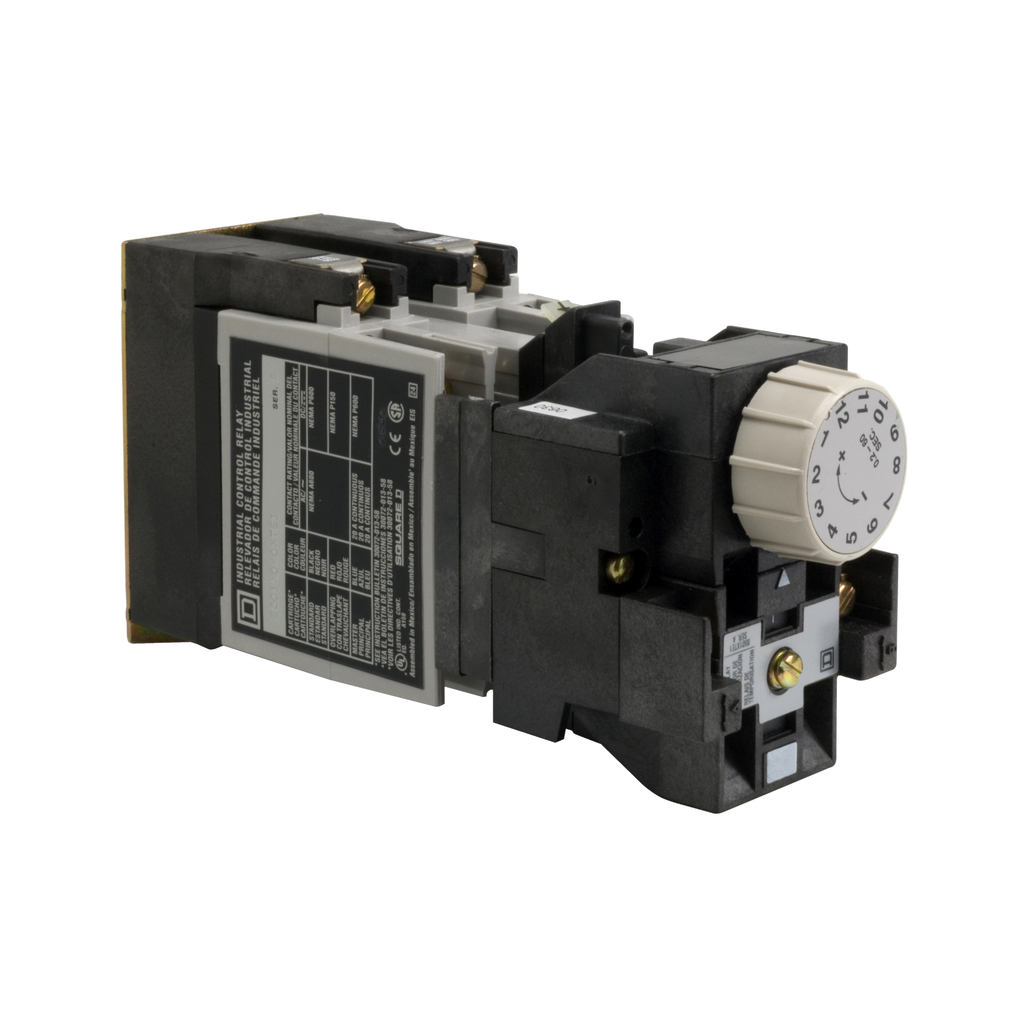

Product image for Square D 8501XO20XTE1V06 440/480 VAC 10/5 Amp 1NO 1NC Panel Mount AC Operated Industrial Timing Relay
Image thumbnail 0
Image thumbnail 1
Email

Square D 8501XO20XTE1V06 440/480 VAC 10/5 Amp 1NO 1NC Panel Mount AC Operated Industrial Timing Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO20XTE1V06 | Cooper Electric Part # 724012
$480.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Square D® 8501 Type X relays combine a rugged, heavy-duty design with modular construction for greater design flexibility.

Technical Information

Coil Voltage
440 V AC 50 Hz;480 V AC 60 Hz
Contact Configuration
2 NO 2 standard contact cartridges
Contact Rating
10 A AC-5 A DC,600 V AC
Current
10 Amp
Mounting Type
Panel
Number of Poles
2 Pole
Operating Temperature
-40160 degrees F (-4071 degrees C)
Size
6.55 in
TC Connection
Screw clamp terminals
Type
Relay;Timing
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901755265
GTiN
00785901755265
Product UPC
78590175526

Dimensions

Depth
6.55 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
