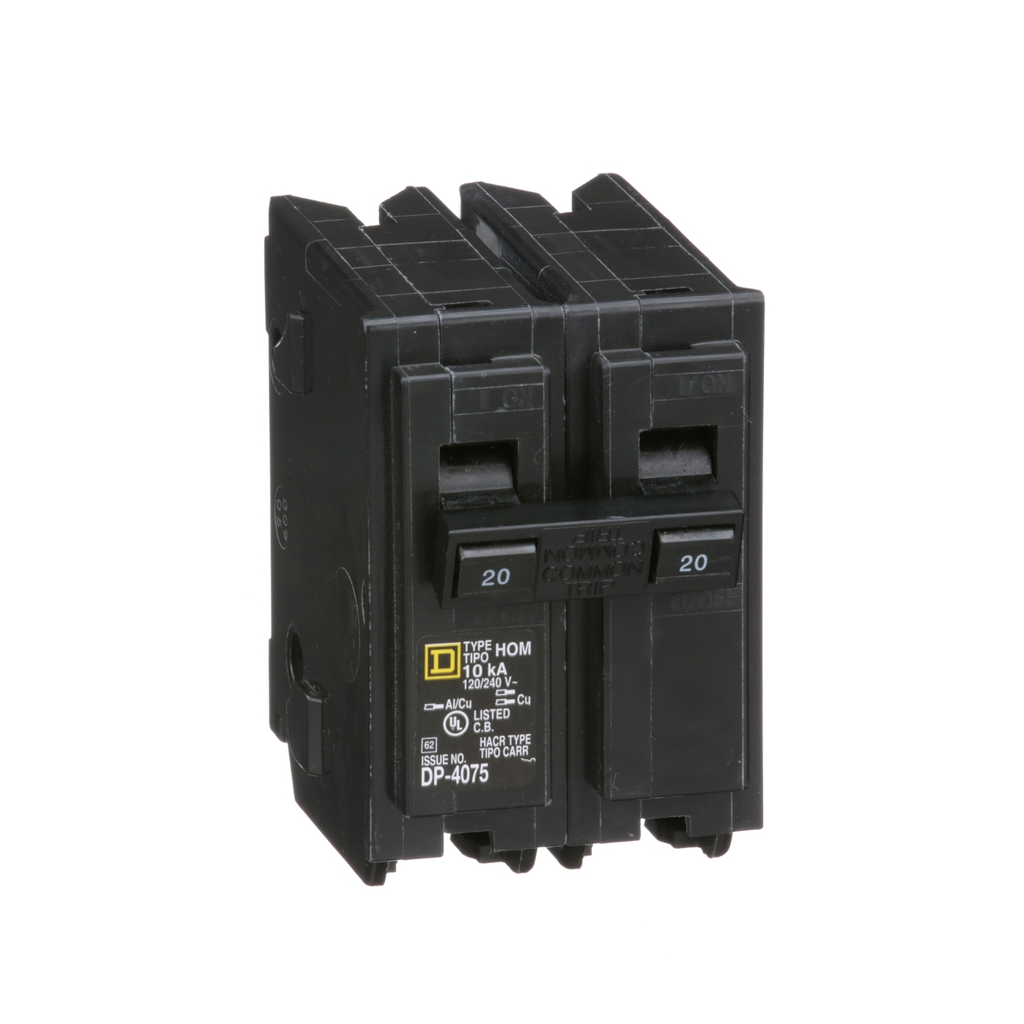

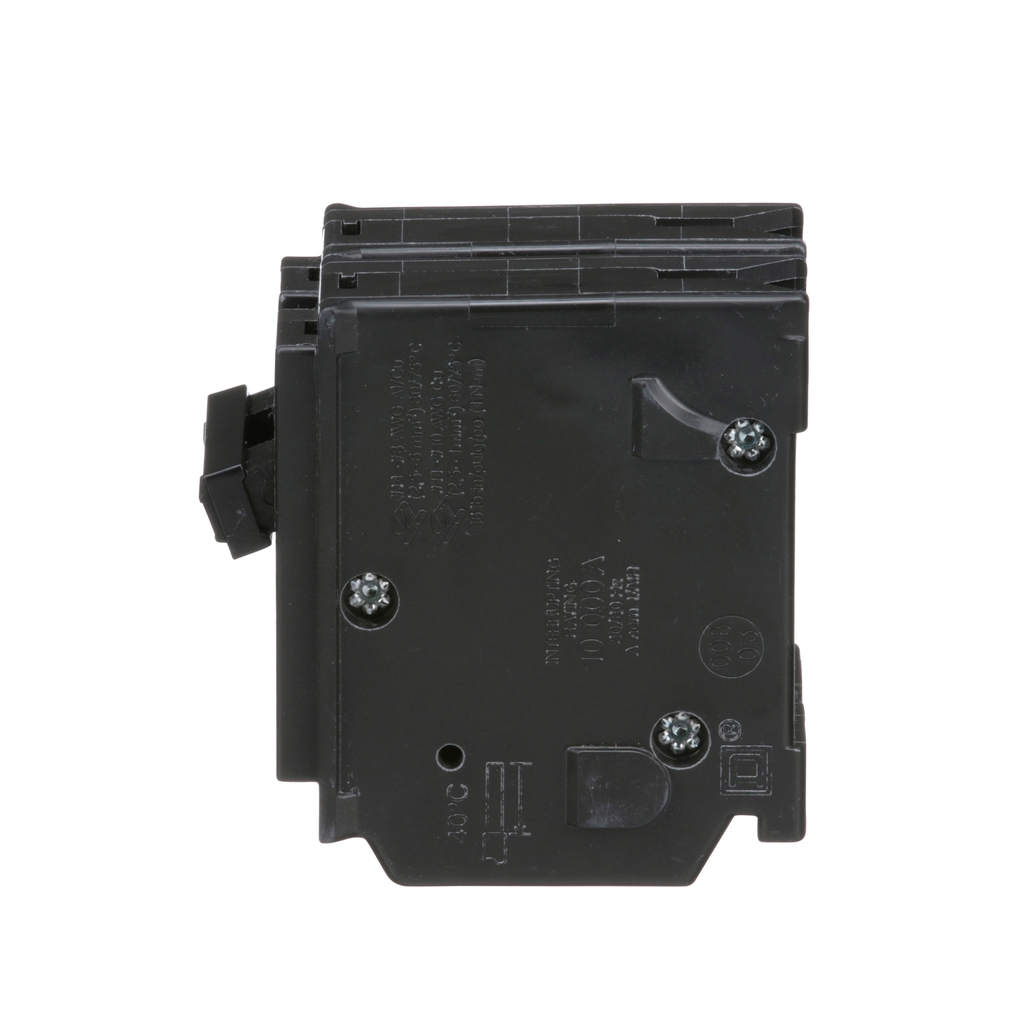

Square D HOM220 120/240 Volt 20 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM220 | Cooper Electric Part # 7213
$24.41/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
30 available

For Pick Up

at Ocean Opens Friday 8:00am ET
1,548 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

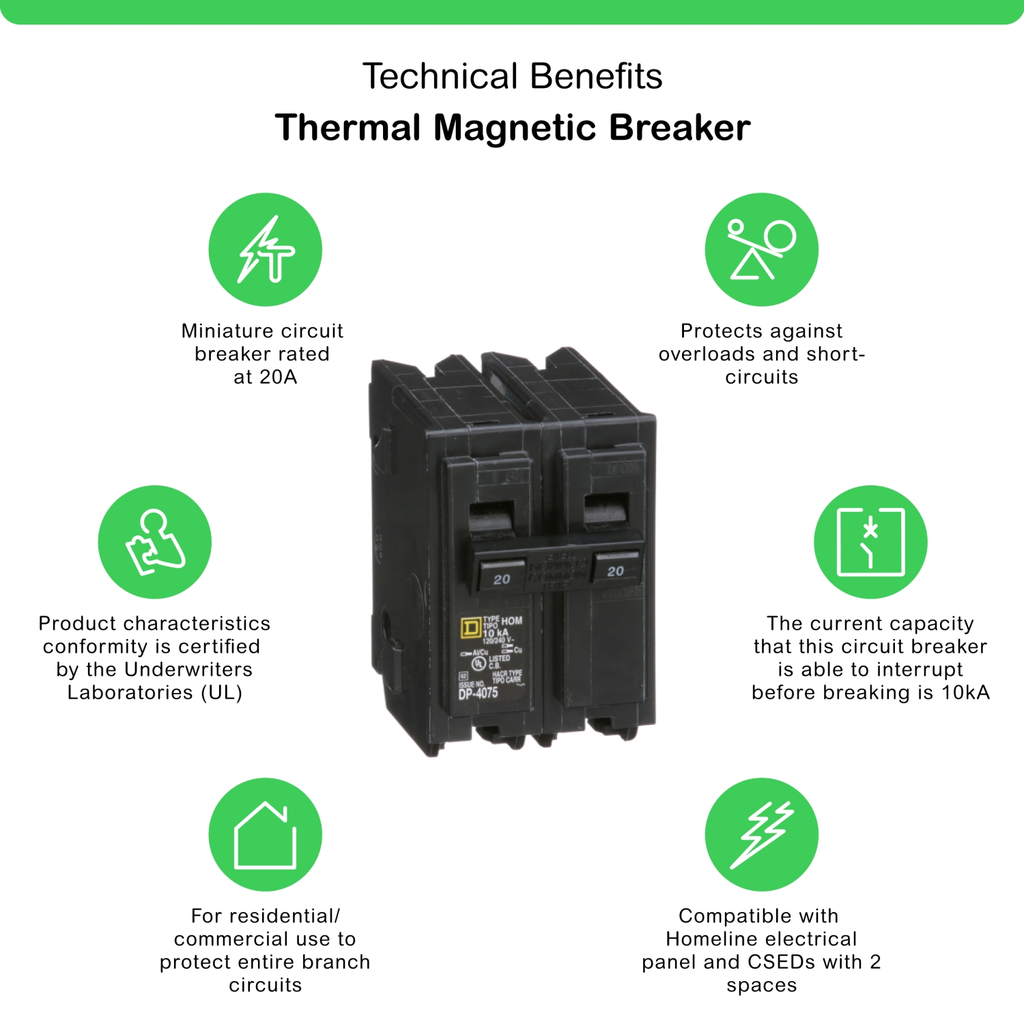

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
20 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Standard
Conductor Size
14-8 AWG
Current
20 Amp
Interrupt Rating
10 kAIC
Line Rated Current
20 A
Mounting Type
Plug-in
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
Range
Homeline
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #14-8 AWG(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901065289
GTiN
00785901065289
Product UPC
78590106528

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Compatible Products
  • HOM1HT
  • HOM3060M200PC
  • HOM3060M200PC1AVP
  • HOM4080M200PCAFVP
  • HOM612L100RB
  • RC12L200C
  • RC3040M150SL
  • SC8L125S
  • HOM2448L125PGC
  • HOM3060L225PGC
  • HOM4080L225PGC
  • HOMTHT
  • HOM1224L125PGC
  • HOM2040L125PGC
  • QO1LO
  • HOM2HBD
  • HOM4284L225PC
  • HOM816M200PFTRB
  • HOM1PA
  • HOM816L125PRB
  • HOM2040M100PC
  • HOM2PALA
  • HOM4080L225PC
  • QOM1PA
  • HOM2448L125PQGC
  • HOM2040L125PC
  • HOM24L70RB
  • HOM1224L125PRB
  • HOM1224L125PC
  • HOM4080M200PCVP
