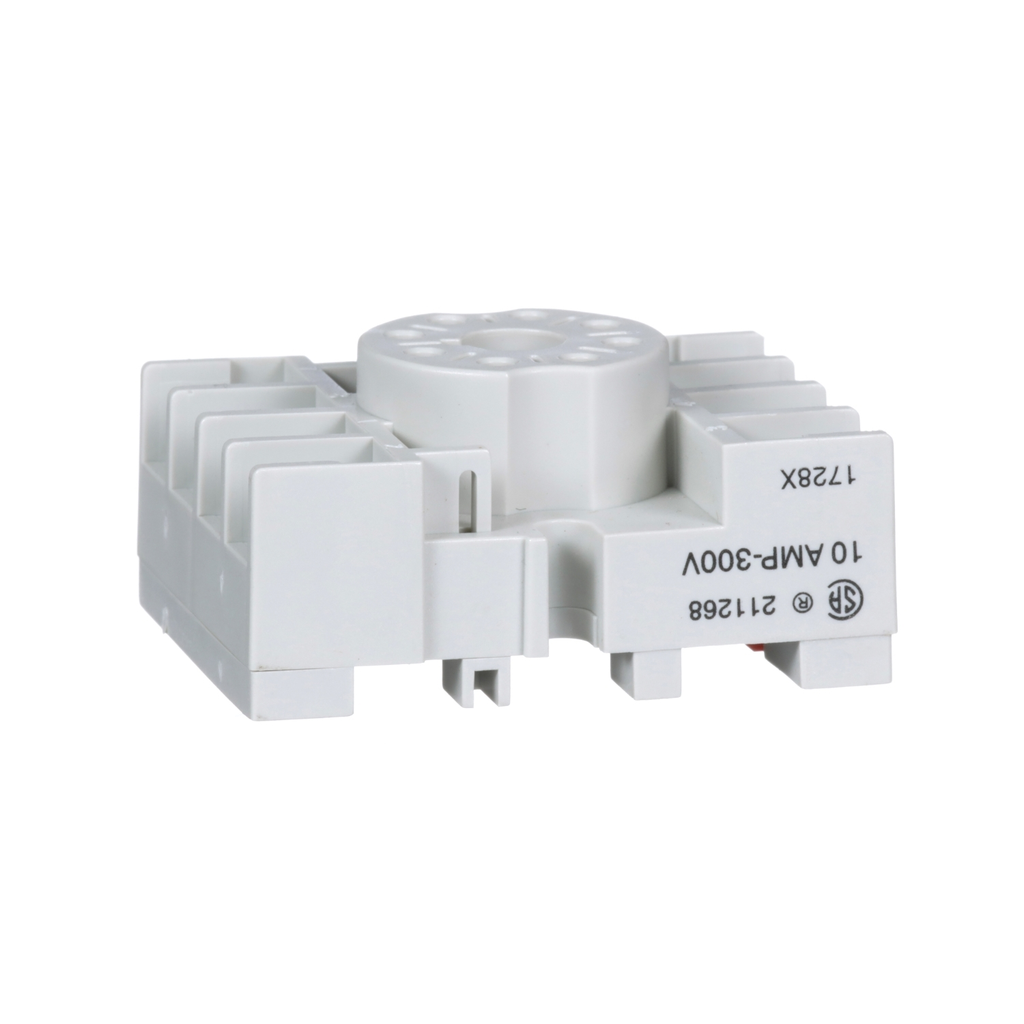

Square D 8501NR51 600 VAC 10 Amp Din Rail/Direct Panel Mount 1-Tier Relay Socket

Manufacturer: Square-D / Schneider | Catalog # 8501NR51 | Cooper Electric Part # 71983
$17.82/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Ocean Closes 5:00pm ET
58 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2

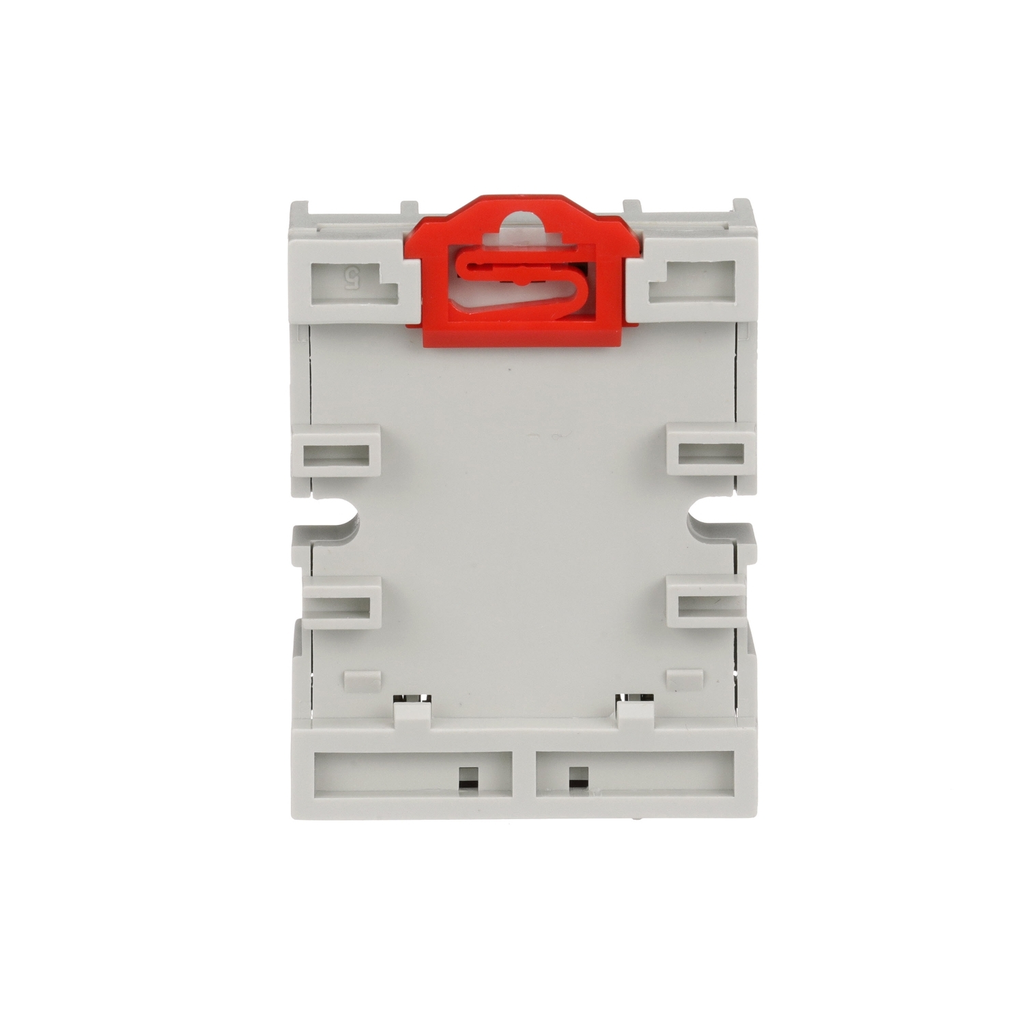

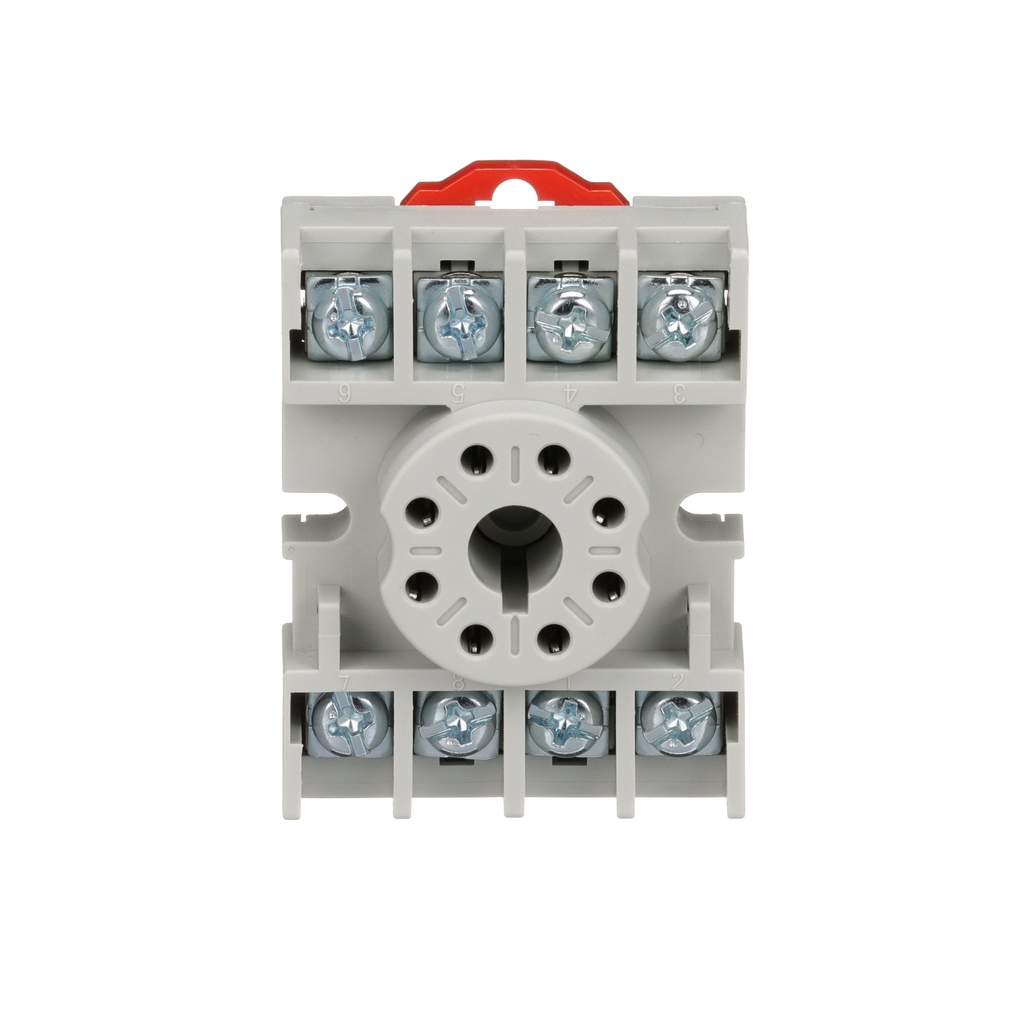

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Technical Information

Amperage
10@600V-15@300V Amp
Line Rated Current
15 A
Mounting Type
DIN Rail,Panel
Number of Pins
8
Type
Relay Socket

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901583592
GTiN
00785901583592
Product UPC
78590158359

Dimensions

Depth
24.6 mm
Height
54 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Recognized
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 8501NH7
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
