TES ZCMD41L1 Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action, connection, 1 m

Manufacturer: TES Electric | Catalog # ZCMD41L1 | Cooper Electric Part # 719010
$104.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

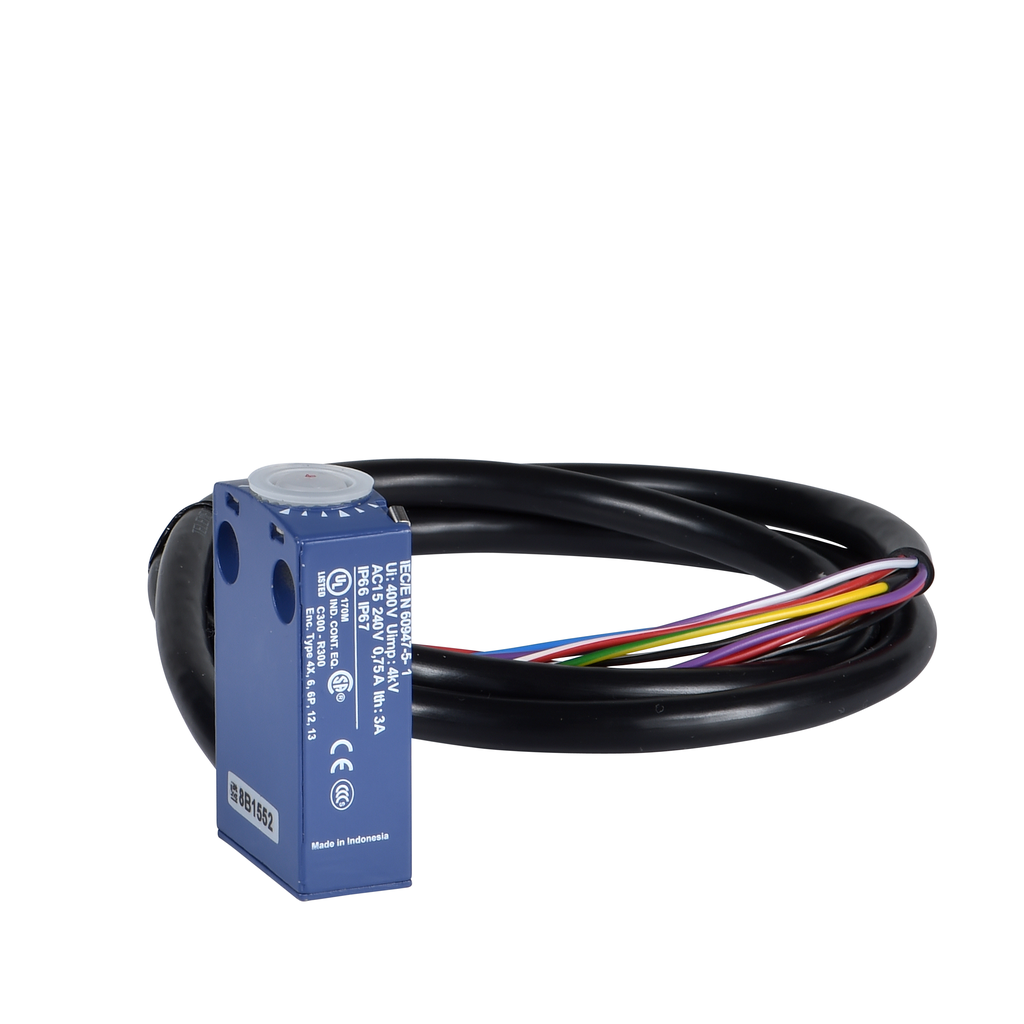

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 2 x NO + 2 x NC snap action contacts and is pre-cabled (1 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
Snap action
Amperage
6 Amp
Applications
XCMD
Body Material
Zamak
Body Type
Fixed
Contact Configuration
2 NC + 2 NO
Contact Material
Silver Plated Contacts
Net Weight
0.065 kg
Number of Poles
4 Pole
Operating Cycles
5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Size
0.63 in
Storage Temperature
-40-70 degrees C
TC Connection
FIXED CABLE
Type
Limit switch body

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
389110299444
GTiN
03389110299441
Product UPC
78590153175
Weight
0.14 lb

Dimensions

Cable Length
1 m
Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
