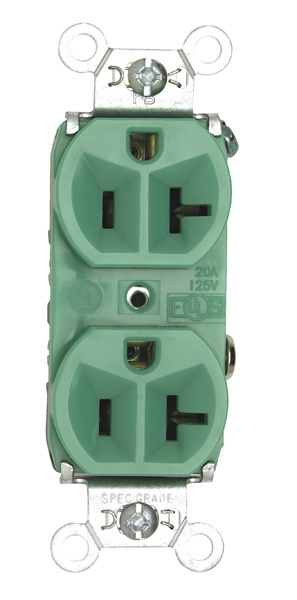

Product image for Pass & Seymour 5362-GN Hard Use Spec Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Green
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5362-GN Hard Use Spec Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Green

Manufacturer: Pass & Seymour / Legrand | Catalog # 5362GN | Cooper Electric Part # 716128
$7.13 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Brochure Product Spec Sheet
eHard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Yellow

Technical Information

Amperage
20 Amp
Applications
Commercial,Residential
Capacity
Duplex
Conductor Size
14-10 AWG
Grade
Specification
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.25x1.25x1.81
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007008500
Color
Green
GTiN
00785007008500
Product UPC
78500700850
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.32 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Certifications
CULUS,FEDSPEC
Country of Origin
USA
Features
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • Federal Spec Listed
  • cULus Listed
