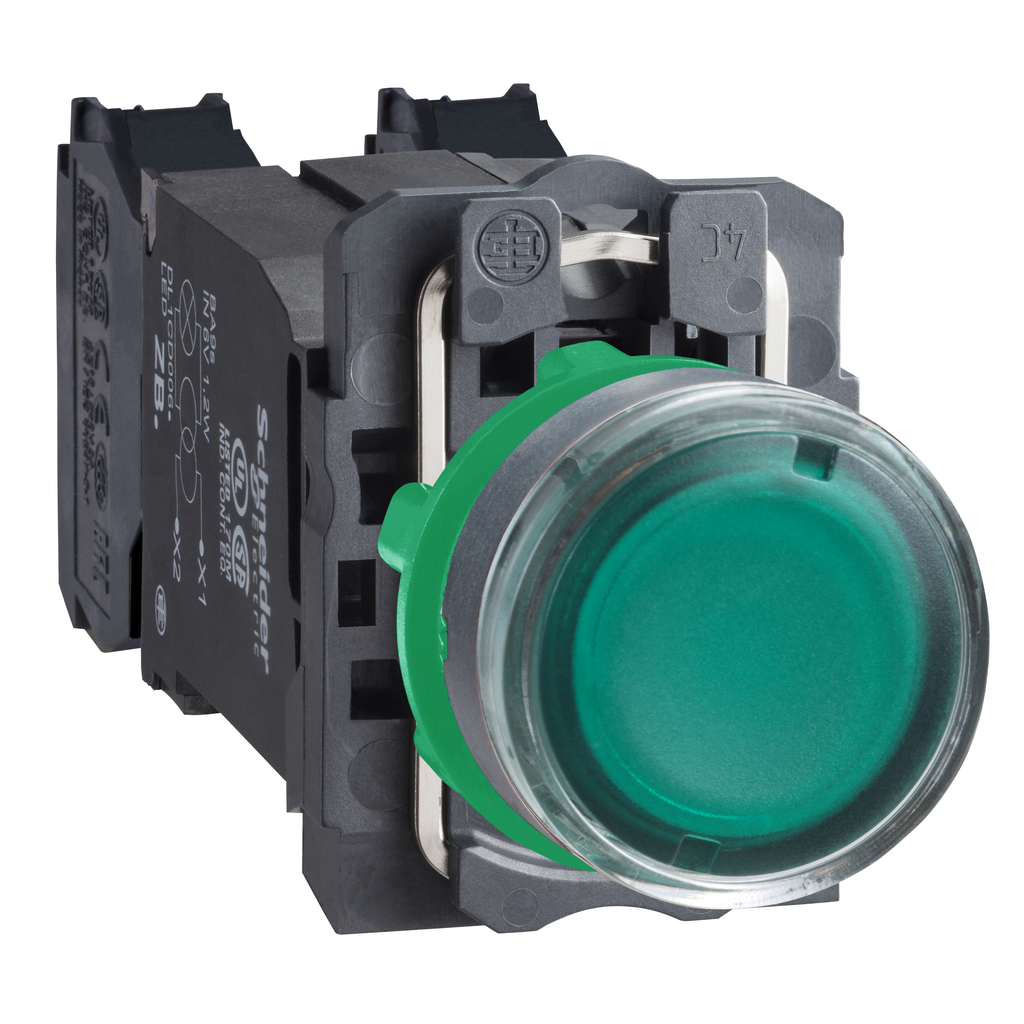

Square D XB5AW3335 22 mm 120 VAC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB5AW3335 | Cooper Electric Part # 715481
$165.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony XB5, plain lens illuminated modular green push button operates with a spring return / impulse mechanism, is supplied with 110V to 120V AC/DC, uses an integral transformer and has screw-clamp terminals. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Information

Actuator
GREEN FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Bezel Material
Dark Grey Plastic
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 13-NEMA 4X
Indicator
BA 9S,INCANDESCENT
Operating Temperature
-40-55 Adegrees C
Size
101 MM,22 MM,30 MM,42 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
ILLUMINATED PUSH-BUTTON
Voltage
110...120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Harmony
Sub Brand
XB5

General Product Info

12-Digit UPC
785901384212
Color
Green
GTiN
03389110904093
Product UPC
78590138421
Weight
0.28 lb

Dimensions

Depth
3.98 Inch
Height
1.65 Inch
Warranty Length
18 mth
Width
1.18 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),RINA,UL Listed
Country of Origin
Czech Republic
