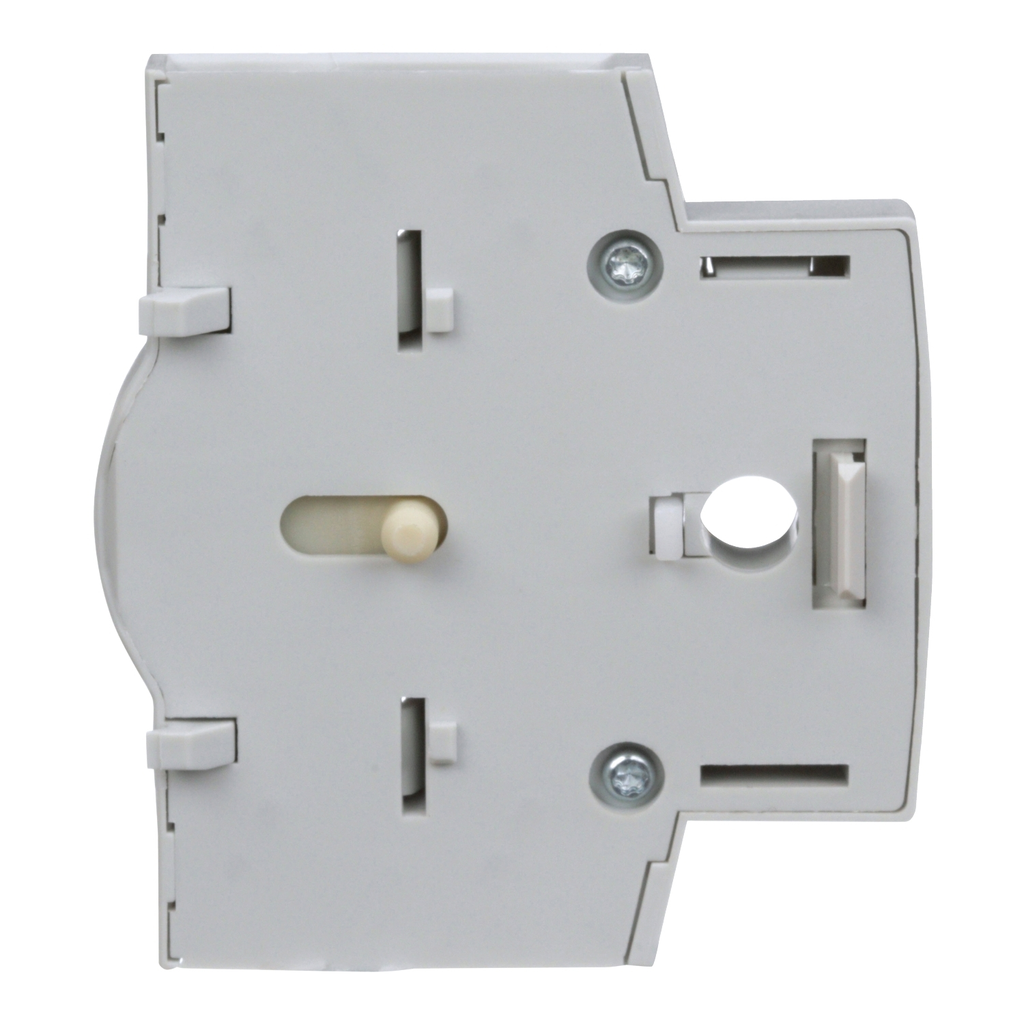

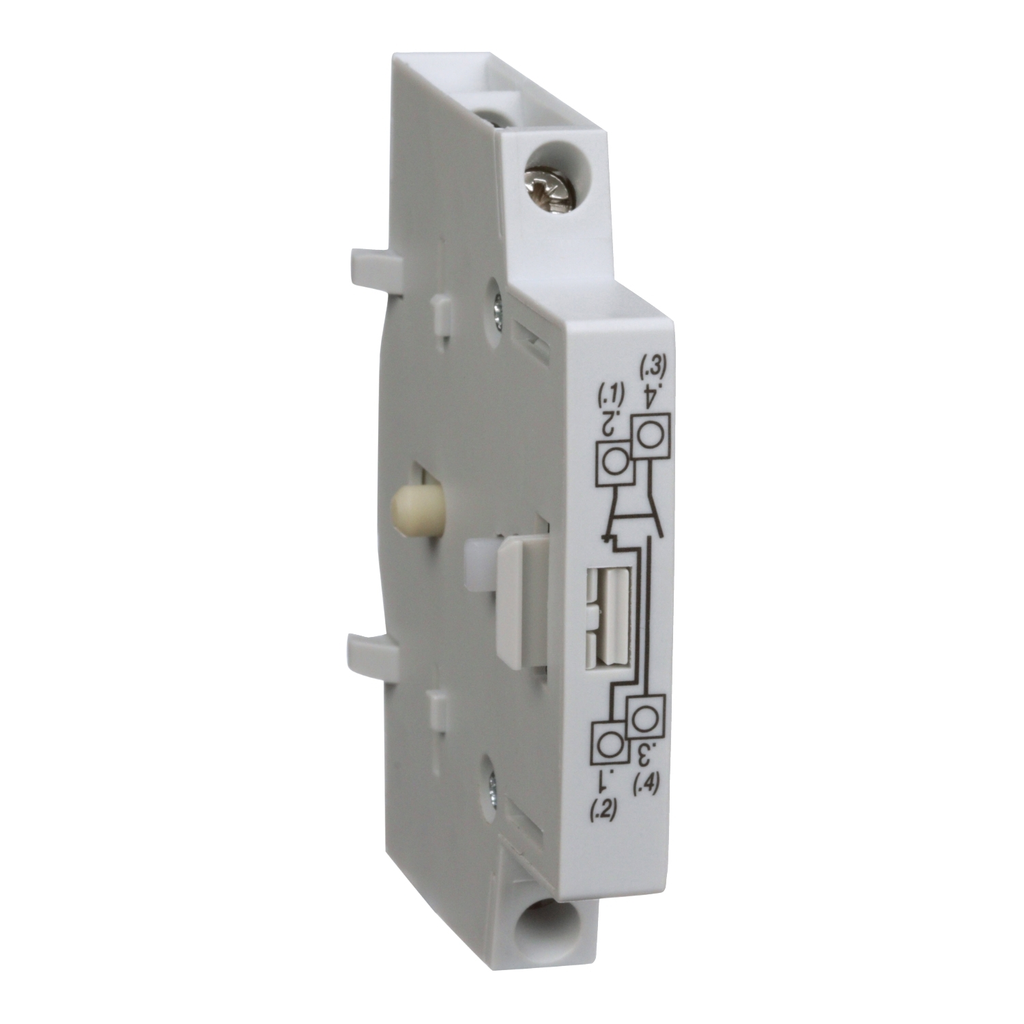

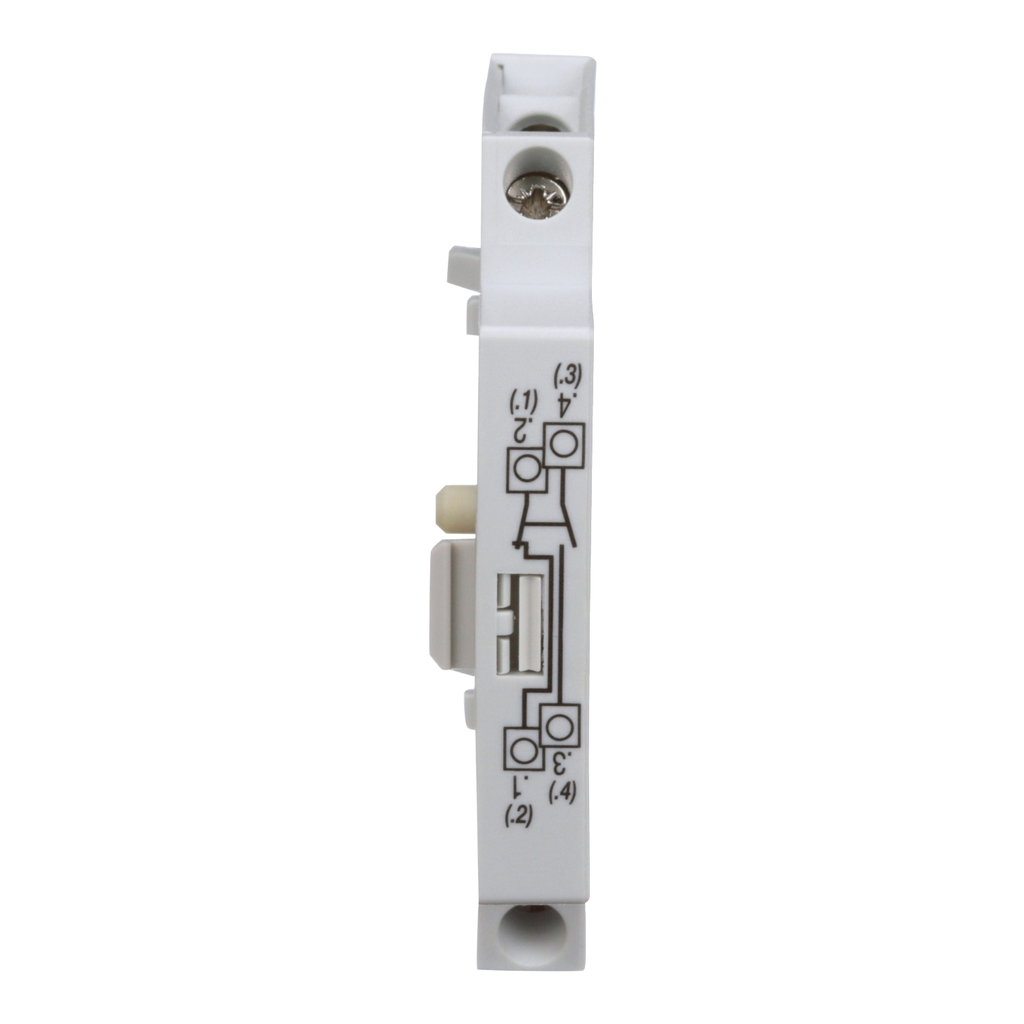

Product image for Square D MDSAN11 1NO 1NC Auxiliary Contact Module
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square D MDSAN11 1NO 1NC Auxiliary Contact Module

Manufacturer: Square-D / Schneider | Catalog # MDSAN11 | Cooper Electric Part # 714060
$92.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This auxiliary contact module has one normally open and one normally closed contact. Auxiliary contact is UL listed and CSA certified.

Technical Information

Actuator
DISCONNECT ACTUATED
Applications
MD3604X, MD3304X, LK3, & LK4
Contact Configuration
1 NO + 1 NC
Number of Poles
2 Pole
TC Connection
CONNECTOR ATTACHMENT
Type
AUXILIARY CONTACT MODULE
Voltage
600 VAC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
VARIO

General Product Info

12-Digit UPC
606480190264
GTiN
03606480190261
Product UPC
78590196749

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Formaldehyde (gas), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Formaldehyde (gas), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • MD3304X
  • MD3604X
