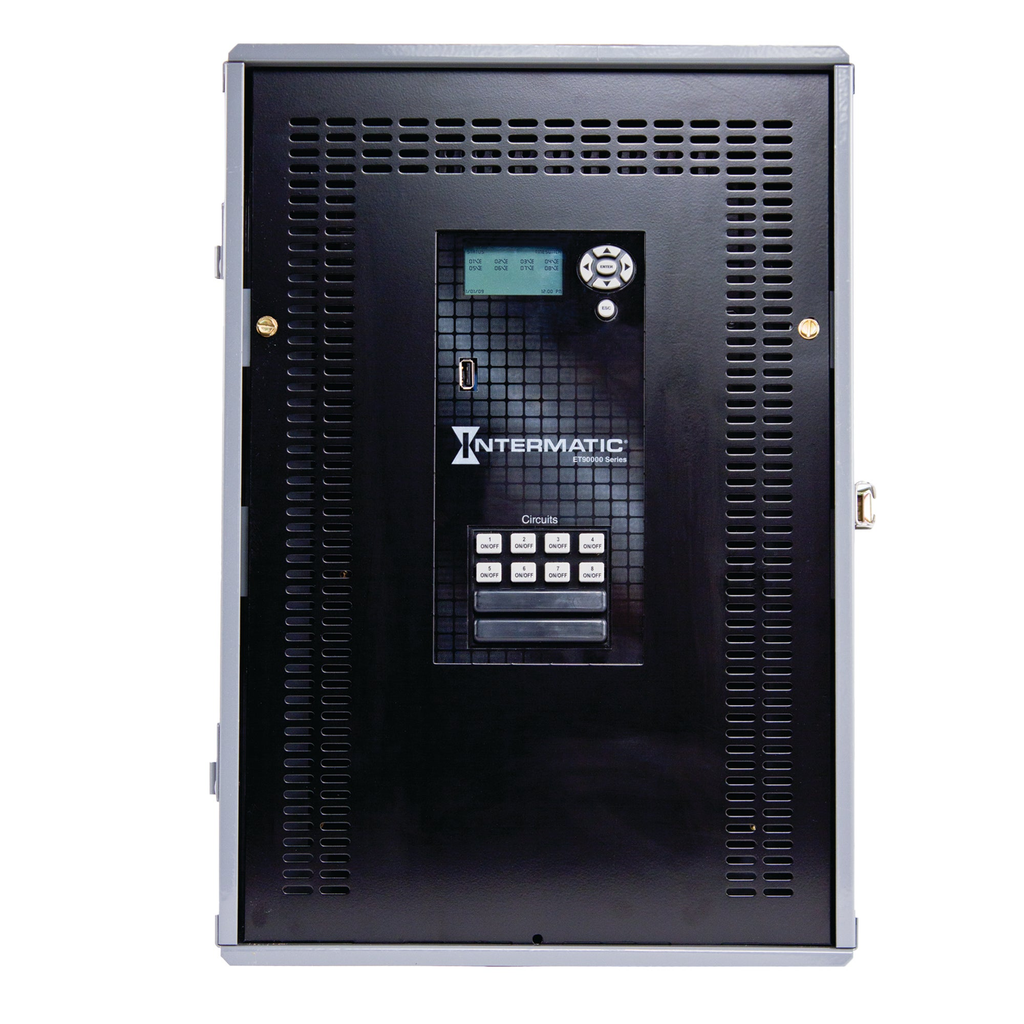

Product image for Intermatic ET90815CR NEMA 3R Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp SPDT Astronomic Time Switch with Ethernet
Image thumbnail 0
Image thumbnail 1
Email

Intermatic ET90815CR NEMA 3R Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp SPDT Astronomic Time Switch with Ethernet

Manufacturer: Intermatic, Inc | Catalog # ET90815CR | Cooper Electric Part # 713427
$4,863.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.

Technical Information

Action
SPDT
Amperage
20 Amp
Applications
General-Purpose, Lighting, HVACR
Connection Type
Wire Lead
Contact Configuration
1 NO, 1 NC - SPDT
Contact Rating
30 A at 12 - 240 VAC (General Purpose and Resistive NO Only), 20 A at 12 - 240 VAC (General Purpose and Resistive NO), 10 A at 12 - 240 VAC (General Purpose and Resistive NC), 20 A at 28 VDC (General Purpose and Resistive NO), 10 A at 28 VDC (General Purpose and Resistive NC), 20 A at 120 - 277 VAC (Ballast NO), 3 A at 120 - 277 VAC (Ballast NC), 5 A at 12 - 240 VAC (Tungsten NO Only)
Enclosure
Type 3R Steel
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Frequency
50/60 Hz
Input Voltage
208-277 V
Material
Steel
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
8
Number of Poles
1 Pole
Operating Cycles
ON-OFF-ON
Operating Temperature
-40 to 120 degrees F, -40 to 50 degrees C
Power Consumption
50 W
Size
17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM
Standard
CCSAus Certified,CULus Listed,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
4xDPDT,8xSPDT
TC Connection
Wire Lead
Temperature Rating
-40 to 120 degrees F
Type
Astronomic
Voltage
277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124929
Color
Gray
GTiN
00078275124929
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827512492
Used With
Lighting

Dimensions

Depth
5.4 Inch
Height
17.9 Inch
Warranty Length
3 yr
Width
12.7 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
  • Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware can be upgraded in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
