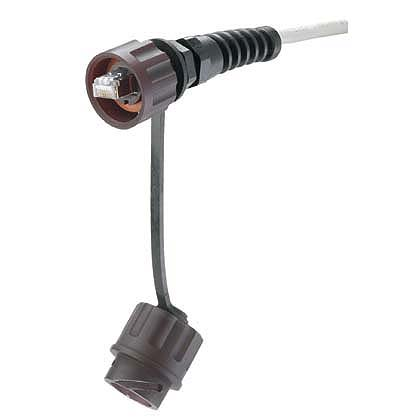

Panduit MPI588T Cat 5e, 24 AWG, Modular Plug

Manufacturer: Panduit Corp | Catalog # MPI588T | Cooper Electric Part # 713003
$49.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing
The IndustrialNet™ Cat 5e Modular Plug is 8-position, 8-wire. The plug terminates Cat 5e, industrial grade, 24 AWG, UTP copper cable. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. Secondary seals on both the connector and plug provide additional protection.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
24 AWG Solid or Stranded
Cable Type
Category 5e
IP Rating
IP67
Material
Polycarbonate
Max Operating Temperature
158 degrees F
Min Operating Temperature
-20 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Industrial, 8-Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™, TX5e

General Product Info

12-Digit UPC
074983421930
Color
Black
Environmental Conditions
Harsh Industrial
GTiN
00074983421930
Product UPC
07498342193
Used With
Shielded Copper Cable

Dimensions

Depth
3.76 Inch
Height
5.22 Inch
Overall Length
3.76 in
Width
1.18 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Protects and seals connections against dust and water immersion to ANSI/IEC 60529-2004Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X
