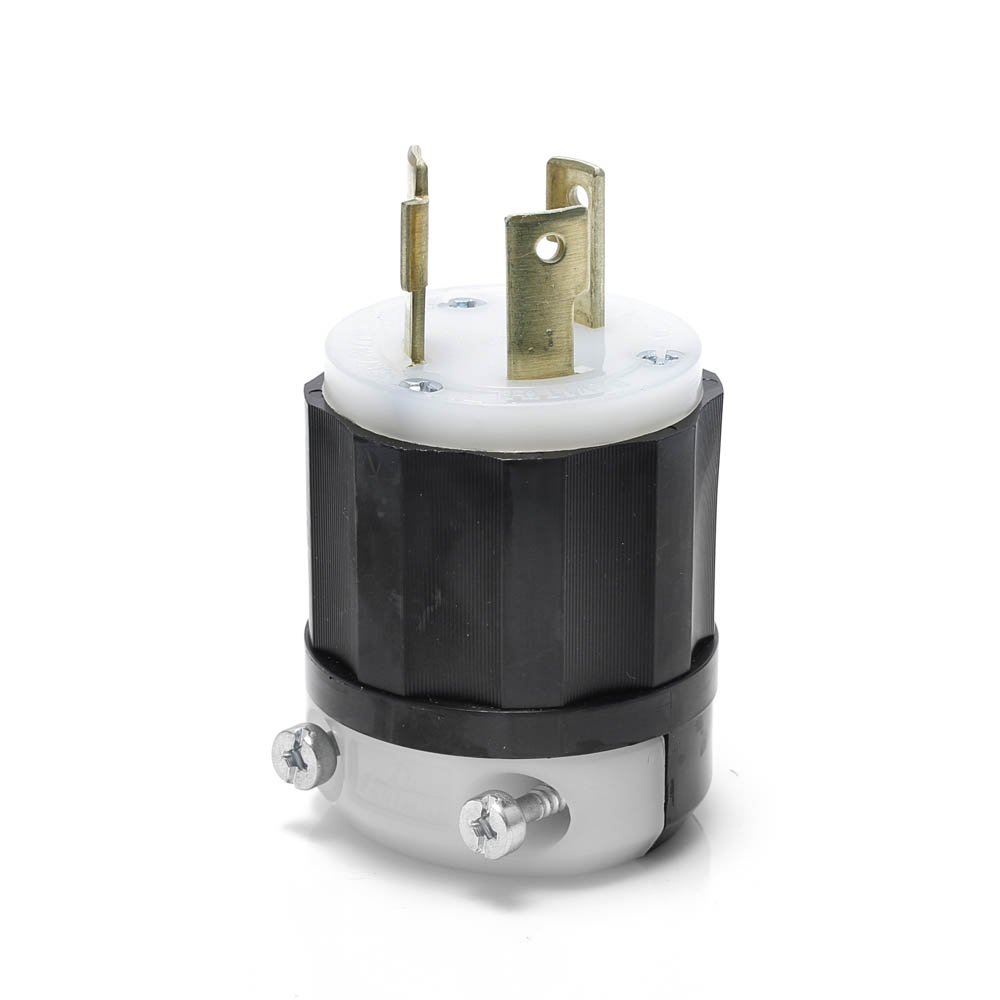

Product image for LEV 2631 EB PLUG LOCK 2PO 3WI L7-30
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

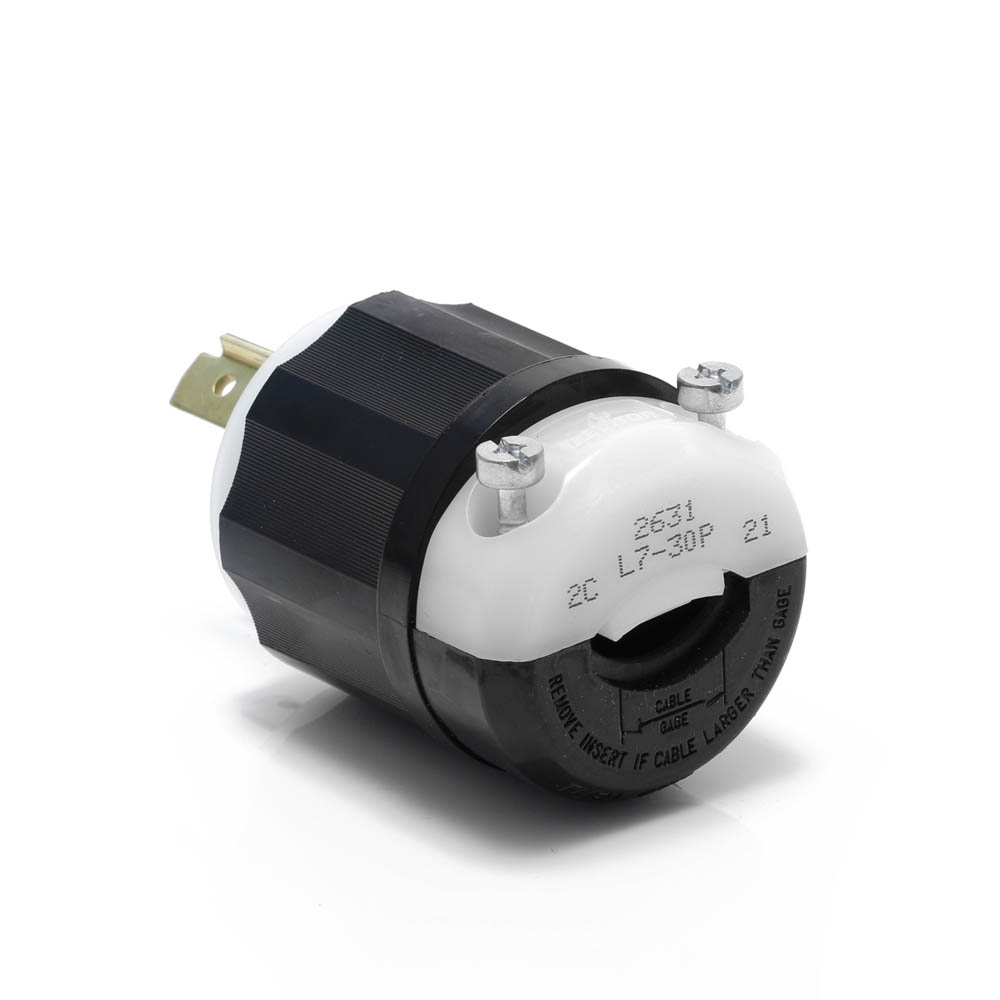

LEV 2631 EB PLUG LOCK 2PO 3WI L7-30

Manufacturer: Leviton Mfg Co | Catalog # 2631 | Cooper Electric Part # 7123
$79.87/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 277 Volt, NEMA L7-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE

Technical Information

Amperage
30 Amp
Applications
For Industrial Use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO
Device Type
Locking Plug
Dielectric
2000 V
Dielectric Strength
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Yes
Horsepower
3 hp
Material
Impact Modified Nylon, Zinc Plated Steel Screw
Mounting Type
Cable
NEMA
WD-1, WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Diameter X 2.47 L IN
Standard
ANSI C-73
TC Connection
Screw, 6 Terminals
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Plug
Voltage
277 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477807941
Color
Black,White
Environment
Dry
Environmental Conditions
-40 to 60 C
GTiN
00078477807941
Product UPC
07847780794

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features

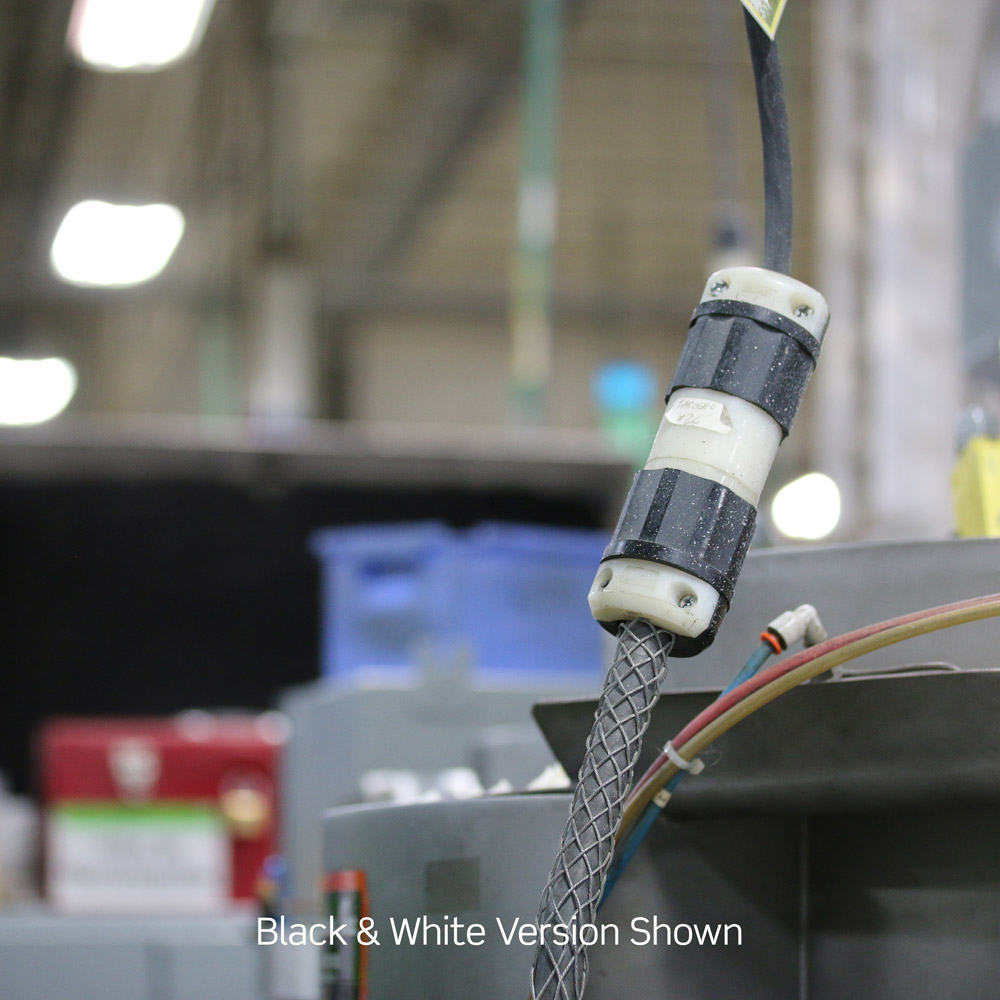

  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty

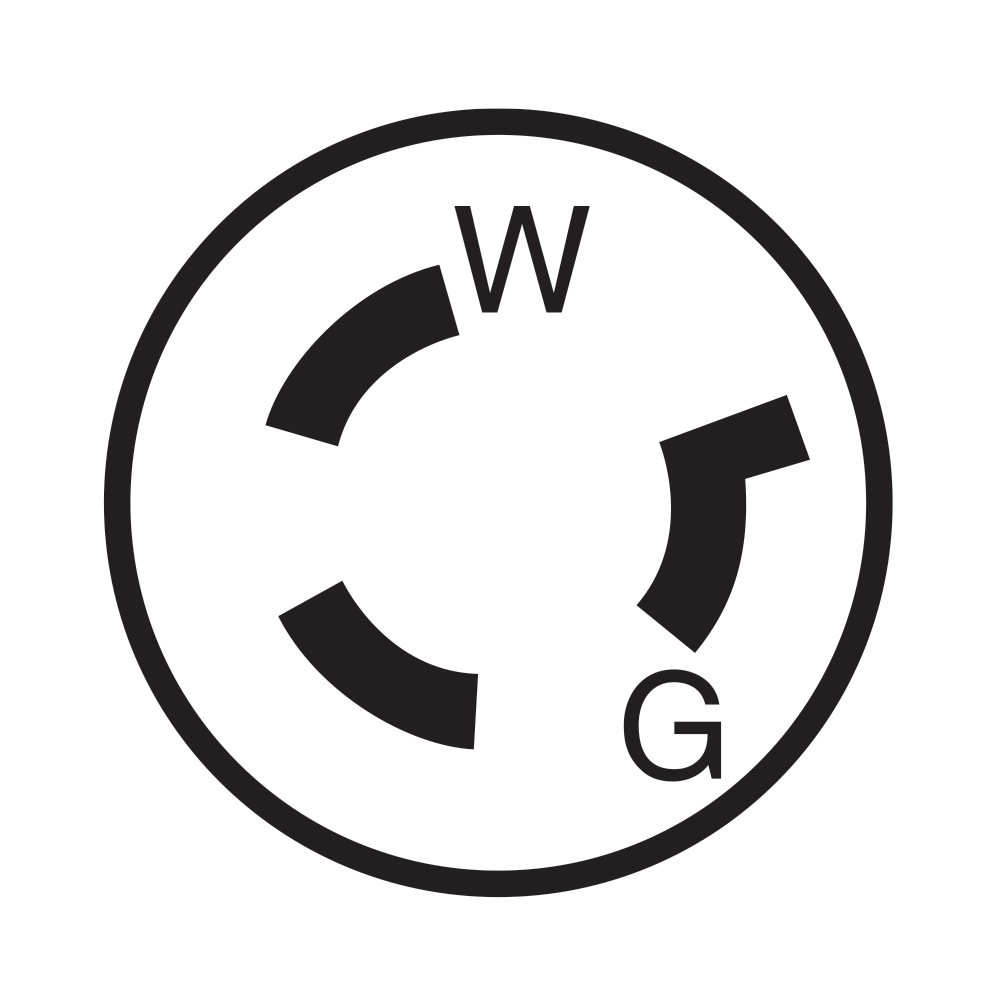

NEMA
  • L7-30P
