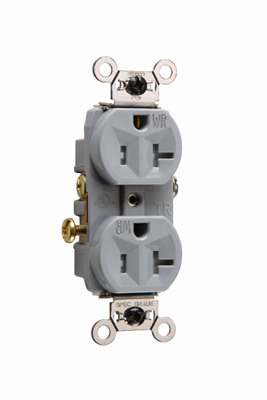

WR DUP RECP TAMP RES 20A/125V GRY

Manufacturer: Pass & Seymour / Legrand | Catalog # WR20TRGRY | Cooper Electric Part # 711182
$14.75/ea
ea
Log in or register to view your price, purchase history, and more!
Residential Commercial Hospital
Duplex Decora Single
15A 20A
125v 250v
Standard Tamper-Resistant Weather-Resistant
0

Not Available for Pickup at Ocean Closes 5:00pm ET
23 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
Weather-Resistant Commercial Grade Receptacles, 20 amp, 125 volts, Ivory, WR20TRI

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Grade
Commercial
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
5.13x2.10x1.43
Style
Duplex
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007243222
Color
Gray
GTiN
00785007243222
Product UPC
78500724322
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Auto-ground clip assures positive ground.
  • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
