Thomas & Betts 14RB-6FS 18-14 Blue Insulated Nylon Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 14RB-6FS | Cooper Electric Part # 710217
$156.75/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

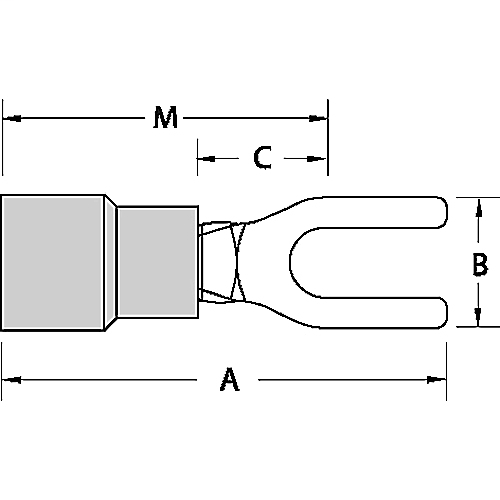

Vinyl-Insulated Fork Terminal, Length .89 Inches, Width .30 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Vinyl Insulated Fork Terminal
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210805481
Color
Blue
Finish
Tin Plated
GTiN
05414363077015
Product UPC
78621080548

Dimensions

Height
2.4 Inch
Length
0.89 Inch
Thickness
.03 in
Width
3.3 in
Certifications
  • CSA
  • UL
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
