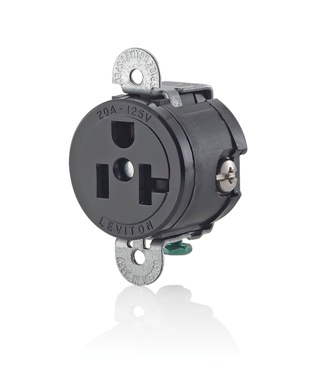

Product image for LEV 5558-SS EB REC SGL SHRT STRAP 2
Email

LEV 5558-SS EB REC SGL SHRT STRAP 2

Manufacturer: Leviton Mfg Co | Catalog # 5558-SS | Cooper Electric Part # 709470
$12.80/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Single Receptacle Outlet, Commercial Specification Grade, Short Strap, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - Black

Technical Information

Amperage
20 Amp
Applications
For Commercial
Base Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wired
Cover Material
Nylon
Dielectric
2000 V
Dielectric Strength
2000 V
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
1 hp
Mounting Type
Box
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
2.31 H x 1.20 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Torque
14 lb-in
Type
Short Strap
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477419854
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477419854
Product UPC
07847741985

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
NEMA
  • 5-20R
