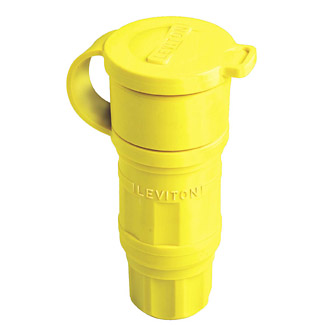

Product image for Leviton 29W77 600 Volt Star 3-Phase 30 Amp 3-Pole 4-Wire NEMA L17-30R Yellow Thermoplastic Grounding Locking Connector
Image thumbnail 0

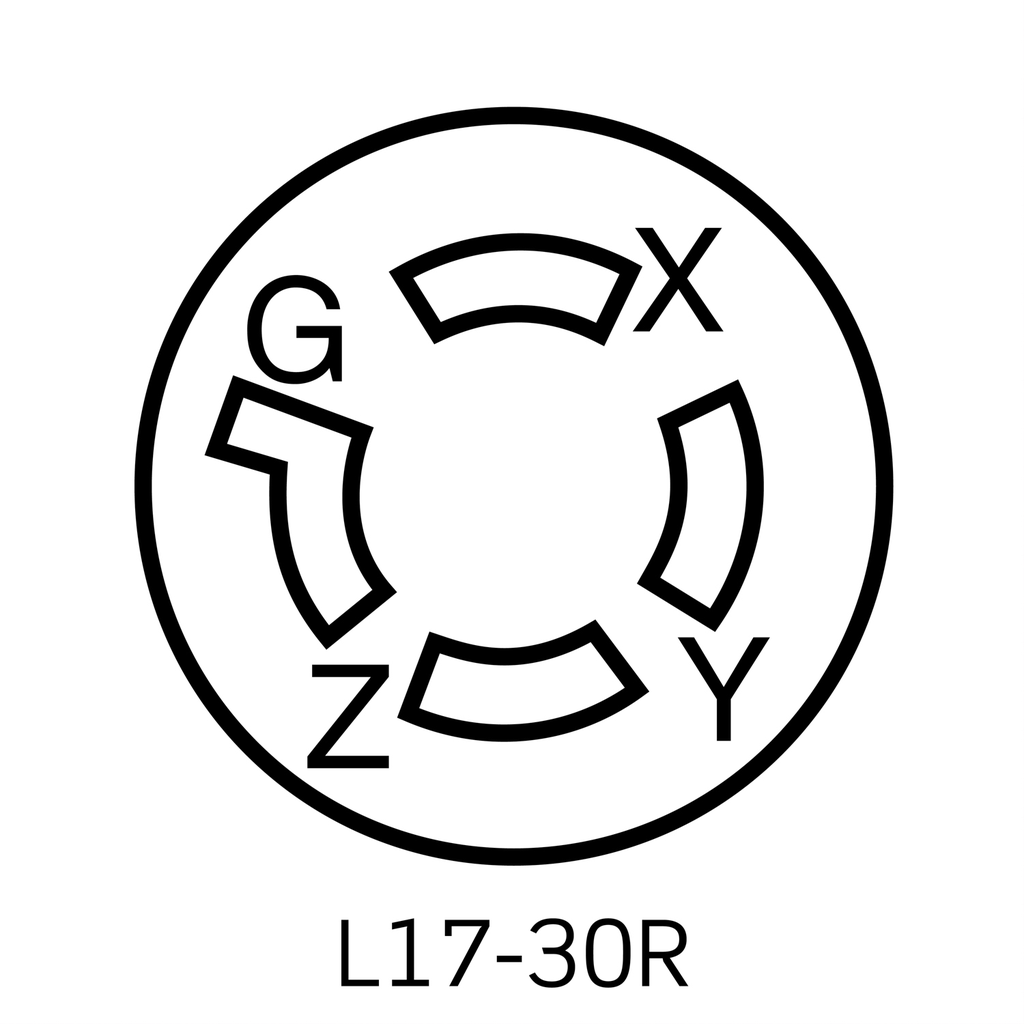

Image thumbnail 1
Email

Leviton 29W77 600 Volt Star 3-Phase 30 Amp 3-Pole 4-Wire NEMA L17-30R Yellow Thermoplastic Grounding Locking Connector

Manufacturer: Leviton Mfg Co | Catalog # 29W77 | Cooper Electric Part # 703182
$169.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
30 Amp, 600 Volt 3PY, NEMA L17-30R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Non-Magnetic,Stainless Steel
Amperage
30 Amp
Applications
Industrial
Body Material
Santoprene TPV
Conductor Size
12-8 AWG
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass
Cord Type
SO,SOO,ST,STO
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
V-2
Grounding
Grounding
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel, Non-Magnetic
Size
2.75 Diameter X 5.52 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rise
200 %
Terminal Size
#12-8 AWG
Torque
600 lb-in
Type
Locking,Watertight Connector
Voltage
600 Volt
Wire Count
4
Wire Size
12-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477968819
Color
Black on Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477968819
Product UPC
07847796881

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
NEMA
  • L17-30R
