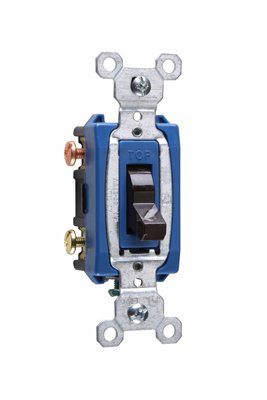

Product image for Pass & Seymour CS15AC3 Commercial 3Way Switch, Side Wire, 15Amp 120/277Volt, Brown
Email

Pass & Seymour CS15AC3 Commercial 3Way Switch, Side Wire, 15Amp 120/277Volt, Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # CS15AC3 | Cooper Electric Part # 7031
$7.57/ea
ea
Log in or register to view your price, purchase history, and more!
Toggle Decora
15A 20A
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Commercial 3way Switch, Side Wire, 15amp 120/277volt, White.

Technical Information

Actuator
Toggle
Amperage
15 Amp
Applications
Commercial
Contact Rating
120 V
Duty Rating
Heavy Duty
Grade
Commercial
Material
Thermoplastic
Number of Poles
3 Pole
Size
3.3"
Type
3 Way
Voltage
120 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007126488
Color
Brown
Finish
Matte
GTiN
00785007126488
Product UPC
78500712648
UNSPSC
39121507

Dimensions

Depth
1.09 Inch
Height
4.195 Inch
Width
1.25 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
