Hoffman SF1024414 IP54 10" Filter Fan 24V 7035

Manufacturer: Hoffman | Catalog # SF1024414 | Cooper Electric Part # 702478
$426.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
IP54 10" Filter Fan 24V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 9.84x9.84x4.72

Technical Information

Amperage
0.33 Amp
Applications
Industrial
Current
.66 Amp
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
9.84x9.84x4.72 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type

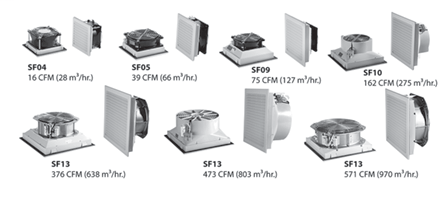

SF10 162 CFM (275 m3/hr.) Side-Mount Filter Fan
Voltage
24 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510200312
Finish
Gray
GTiN
00783510200312
Product UPC
78351020031
Weight
4.19 lb

Dimensions

Depth
4.72 Inch
Height
9.84 Inch
Width
9.84 in
Features
  • Simple snap-open grille for easy filter replacement
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Terminal wire connections
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Enclosure side wall mounting
  • Similar cut-out sizes as other filter fan manufacturers
  • Optional thermostat available to save energy and extend service life
  • Standard foam-in-place gasket
Applications
  • Package handling equipment
  • Wind energy systems
  • Industrial automation
  • Automotive assembly
  • Food and beverage process controls
Accessories
  • Rain shroud
  • Replacement filters
  • Thermostat
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Service life hours from 40000 to 70000 hours
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
