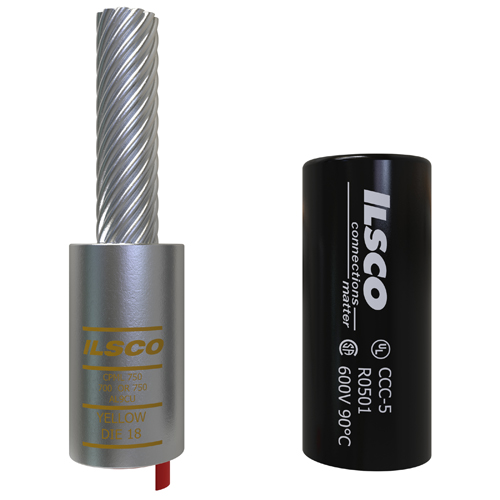

Product image for Ilsco CPML-750 Copper Compression Pigtail Adaptor, Conductor Size 750, Long Barrel, Tin Plated, UL, CSA
Email

Ilsco CPML-750 Copper Compression Pigtail Adaptor, Conductor Size 750, Long Barrel, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPML-750 | Cooper Electric Part # 69954
$224.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 750 kcmil, 700 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,

Technical Information

Applications
Copper Pigtail Adaptor
Barrel Length
2.75 in
Barrel Type
Chamfered
Color Coding
Yellow
Conductor Material
Aluminum,Copper
Conductor Size
750 kcmil
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Copper
Material
Copper
Number of Conductors
1
Pin Length
3.000 in
Size
L:6.75;W:1.68;H:1.68 IN
Standard
UL Specifications: UL 486A-B,UL File Number: E62525,CSA File Number: LR-29601
Temperature Rating
90 degrees C
Type
Dual-Rated, Straight
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669008722
Color
Silver
Finish
Electro Tin Plated
GTiN
00783669008722
Product UPC
78366900872
Weight
0.479 lb

Dimensions

Height
1.68 Inch
Inside Diameter
1.015 in
Length
6-3/4 Inch
Outside Diameter
1.5 in
Overall Length
6-3/4 in
Width
1.68 in
