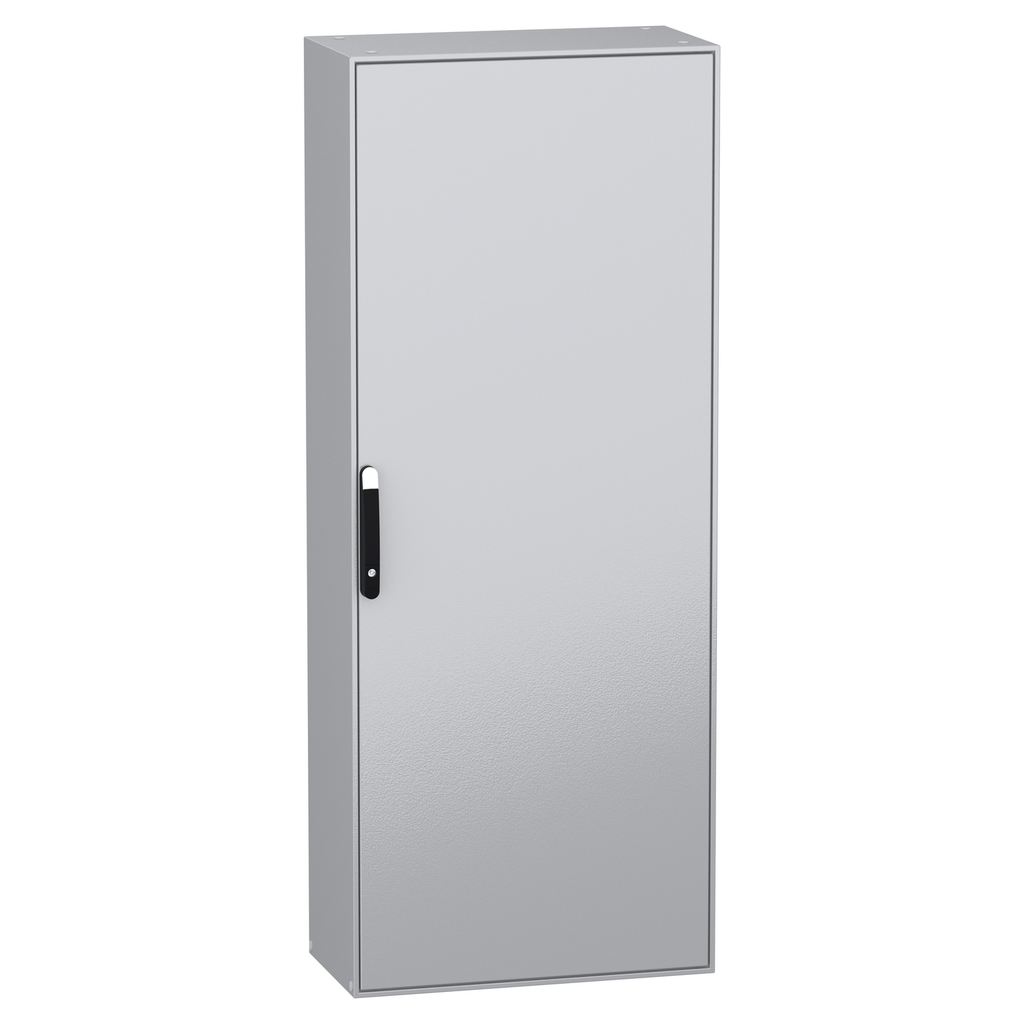

SQUARED NSYSM20840P Spacial SM comp

Manufacturer: Square-D / Schneider | Catalog # NSYSM20840P | Cooper Electric Part # 698218
$1,207.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Spacial SM monobloc compact steel enclosure with plain front door. 2000 x 800 x 400 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

Technical Information

Applications
Multi-purpose
Body Type
Front Part Forming A Rigid Frame With Welded Corners,Single Piece Body With Welded Rear Panel
Cable Entry
1 Entry
Door Type
Solid
Lock Type
5 mm
Material
Steel
Net Weight
117 kg
Number of Doors
Front 1
Range
Spacial
Size
15.75 in
Standard
IEC 62208
Surface Finish
Epoxy-Polyester Powder
Type
Solid;Floor-standing;Compact enclosure

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL

General Product Info

12-Digit UPC
785901898832
Color
Enclosure Gray RAL 7035),Handle Black RAL 9005)
Construction
Single piece body with welded rear panel;Front part forming a rigid frame with welded corners
GTiN
03606485120355
Product UPC
78590189883
Weight
117 kg

Dimensions

Enclosure Depth
400 mm
Enclosure Height
2000 mm
Enclosure Wdth
800 mm
Height
2000 mm
Warranty Length
18 mth
Width
800 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,DNV,UL
Country of Origin
Spain
Compatible Products
  • NSYSPF8100
  • NSYSPS4100
  • NSYSPF8200
  • NSYSPS4200
  • NSYID208
  • NSYMP208
  • NSYVR20
  • NSYTVR20
  • NSYRSW40
  • NSYRSWC40
  • NSYOL6GF
  • NSYSMBCE8
  • NSYSMEB
  • NSYSC840
  • NSYSMWFIX
  • NSYDPA4
  • NSYMDCM20
  • NSYCNOH123
  • NSYSFHPB
  • NSYBLKHN123
  • NSYSMBK
  • NSYSMEC84
Cross Sell Products
  • NSYLAMLDF
  • NSYCVF85M230PF
  • NSYCAG125LPF
  • NSYCCOTHO
  • NSYCCOHYT230VID
  • NSYCR100WU2
  • LV847210
  • C16F3TM160
  • LV434001
  • LUB12
  • GV2L32
  • LC1D32M7
  • XB4BS8446
  • XB4BVB4
Related Products
  • NSYMP208
  • NSYSM20840
Spare Part Products
  • NSYDHSF
  • NSYDHSM2D
  • NSYLCK20SF
  • NSYLCKWSF
  • NSYSFND208
