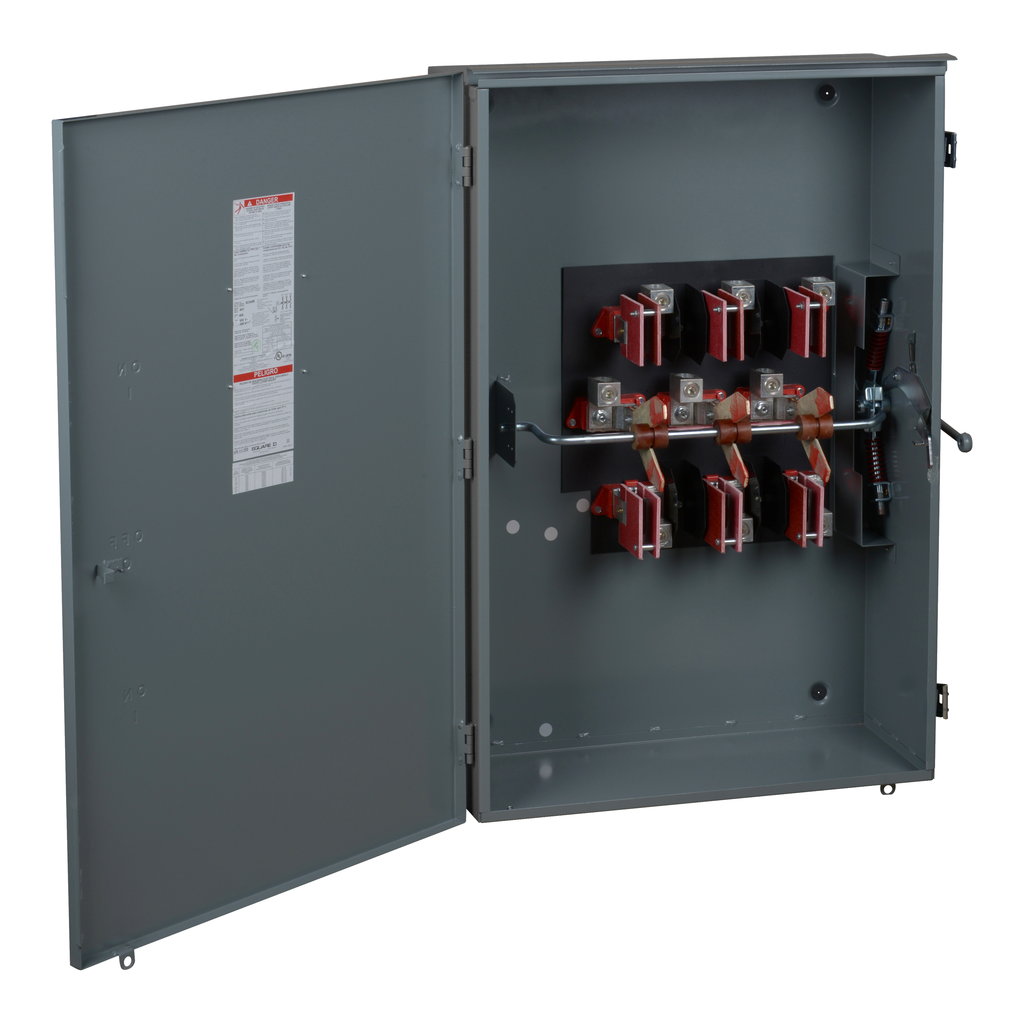

Product image for Square D 82454R 240 VAC 200 Amp 4-Pole Galvannealed Steel NEMA 3R Non-Fusible Double Throw Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 82454R 240 VAC 200 Amp 4-Pole Galvannealed Steel NEMA 3R Non-Fusible Double Throw Safety Switch

Manufacturer: Square-D / Schneider | Catalog # 82454R | Cooper Electric Part # 698089
$7,517.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Provide emergency back up power connections in accordance with Article 702 of the National Electrical Code, ANSI/NFPA 70. They also have the capability of switching two loads between one power sources. Plays 3 crucial roles in today’s commercial and industrial settings: 1) isolate power in daily activities 2) provide an effective way to interrupt power in an emergency and 3) provide lockout in sight disconnect.

Technical Information

Amperage
200 Amp
Applications
DOUBLE THORW SAFETY SWITCH USED FOR MANUAL TRANSFER OF ONE LOAD BETWEEN TWO POWER SOURCES
Contact Configuration
4
Contact Rating
N
Enclosure
NEMA 3R
Line Rated Current
200 A
Mounting Type
Surface
Number of Poles
4 Pole
Size
10.63 IN,33.02 IN,38 IN
TC Connection
AWG 6...300 KCMIL COPPER OR ALUMINIUM
Type
SAFETY SWITCH
Voltage
240 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901688907
GTiN
00785901688907
Product UPC
78590168890

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Certifications
UL,UL
Country of Origin
USA
  • Mining and Mineral
  • From live parts
  • Manufacturing
  • During maintenance of loads
  • Service entrance equipment
  • Arcing during switching
  • Industrial Buildings
  • Educational Campuses
  • Overload or thermal protection
  • Healthcare Facilities
  • Point of load
  • Water Wastewater
  • Short circuit or high fault protection
  • Commercial Buildings
  • Meets or exceeds NEMA KS1
  • Two tone color handle clearly shows switch's status (30 - 100A Series F)
  • Black \"\"OFF\"\
  • Galvanized Steel with E-Coat on NEMA 1, 3R and 12 Enclosures
  • Enclosed operating mechanism design reduces the amount of dust and other contaminants that shorten the mechanisms operating life.
  • Red \"\"ON\"\
  • Mechanical endurance of F series is guaranteed to exceed three times the NEMA requirements
  • Dual Cover Interlock (30 -100A Series F and 600A Series A)
