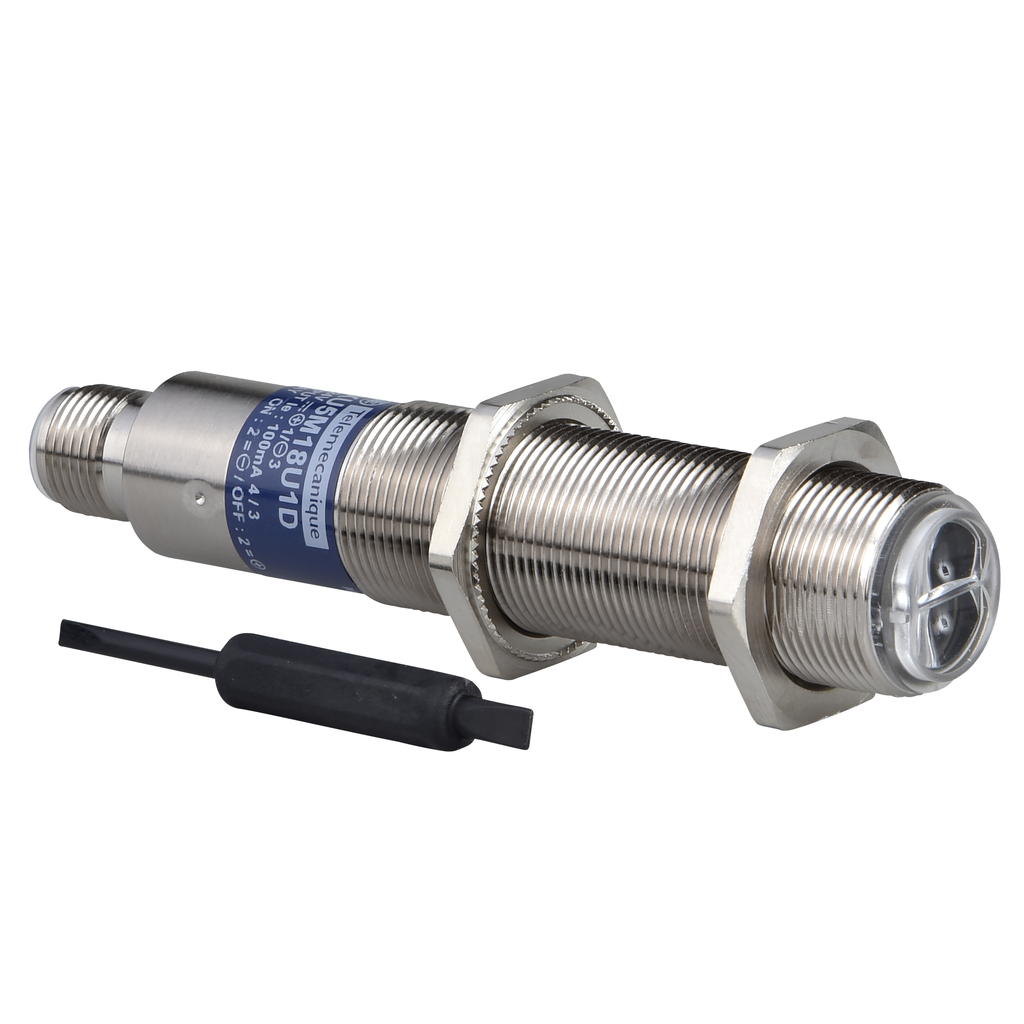

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XU5 M18 design. It has a diffuse detection system. It supports nominal sensing distance of 0mm to 80mm in diffuse mode and 20mm spot with 1 NO PNP discrete type of output signal. It is furnished with 4-pin M12 male connector for electrical connection. This photoelectric sensor, with ultra-violet (transmission frequency = 370nm) emission, has 1 LED for output state. It is an IP67 rated product. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a current consumption of ?20mA and a switching frequency of ?1000Hz. The enclosure is made of nickel plated brass with PMMA lens. Its dimensions are 18mm (Diameter) x 95mm (Length) and weighs 0.075kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CSA, CE and UL.
