SQD 8539SCA54V81FF4T NEMA Combinati

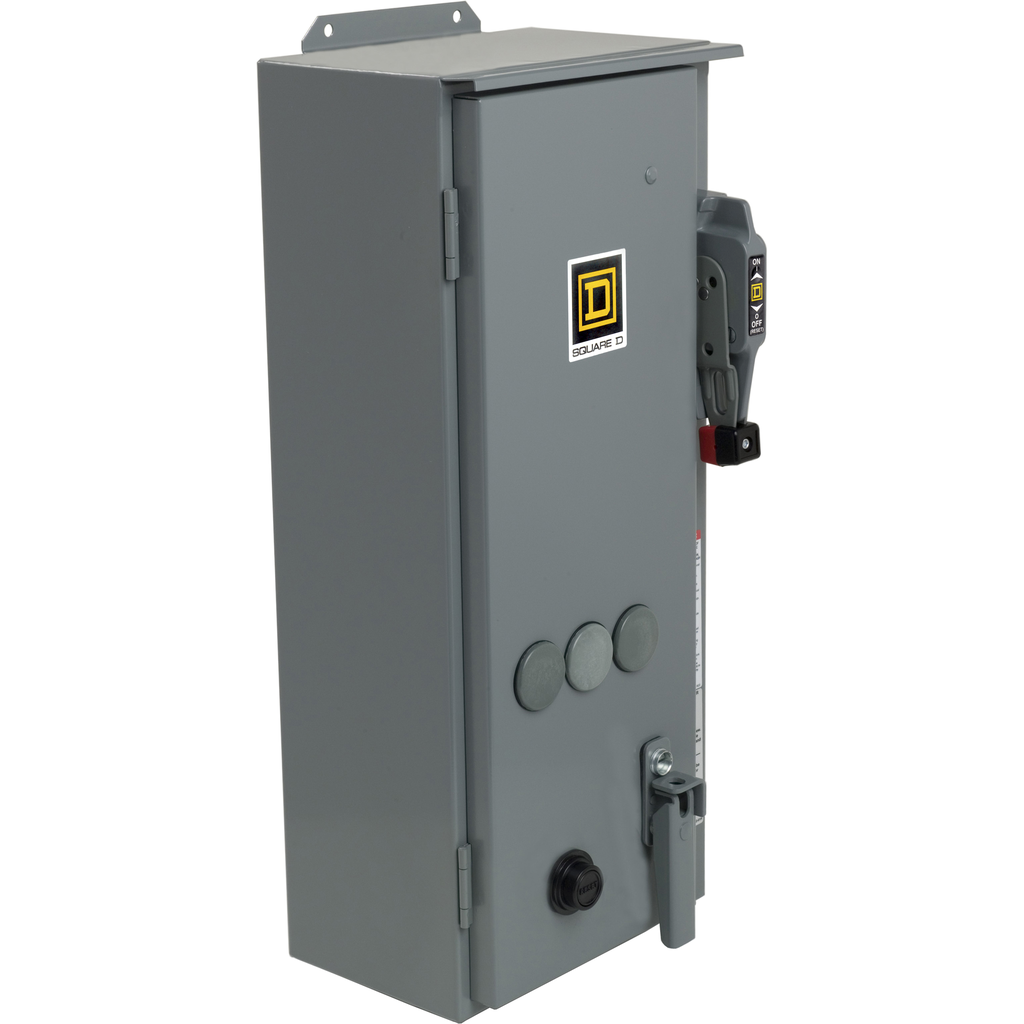

Type S nonreversing thermal magnetic circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 0.25 to 5 HP at 208 VAC, 0.25 to 7.5 HP at 240 VAC and 0.25 to 10 HP at 480 and 600 VAC three phase. Combination starter has a HHL36030M71 circuit breaker. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 24.00 inches tall, 9.50 inches wide and 9.84 inches deep. A wide variety of accessories are available for Type S starters. This combination starter is supplied with fused transformer. Transformer has a 480 VAC primary and a 120 VAC secondary. Type S combination starters are UL listed and CSA certified.
