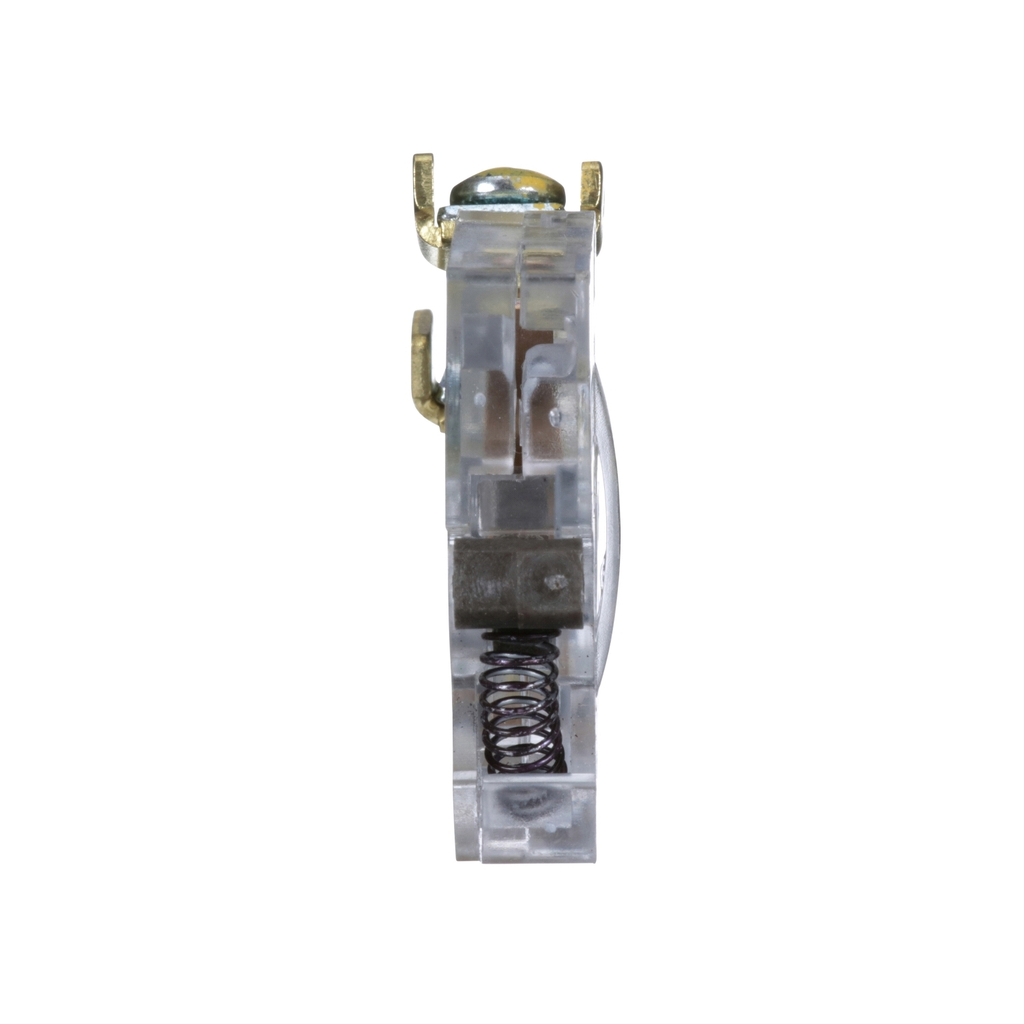

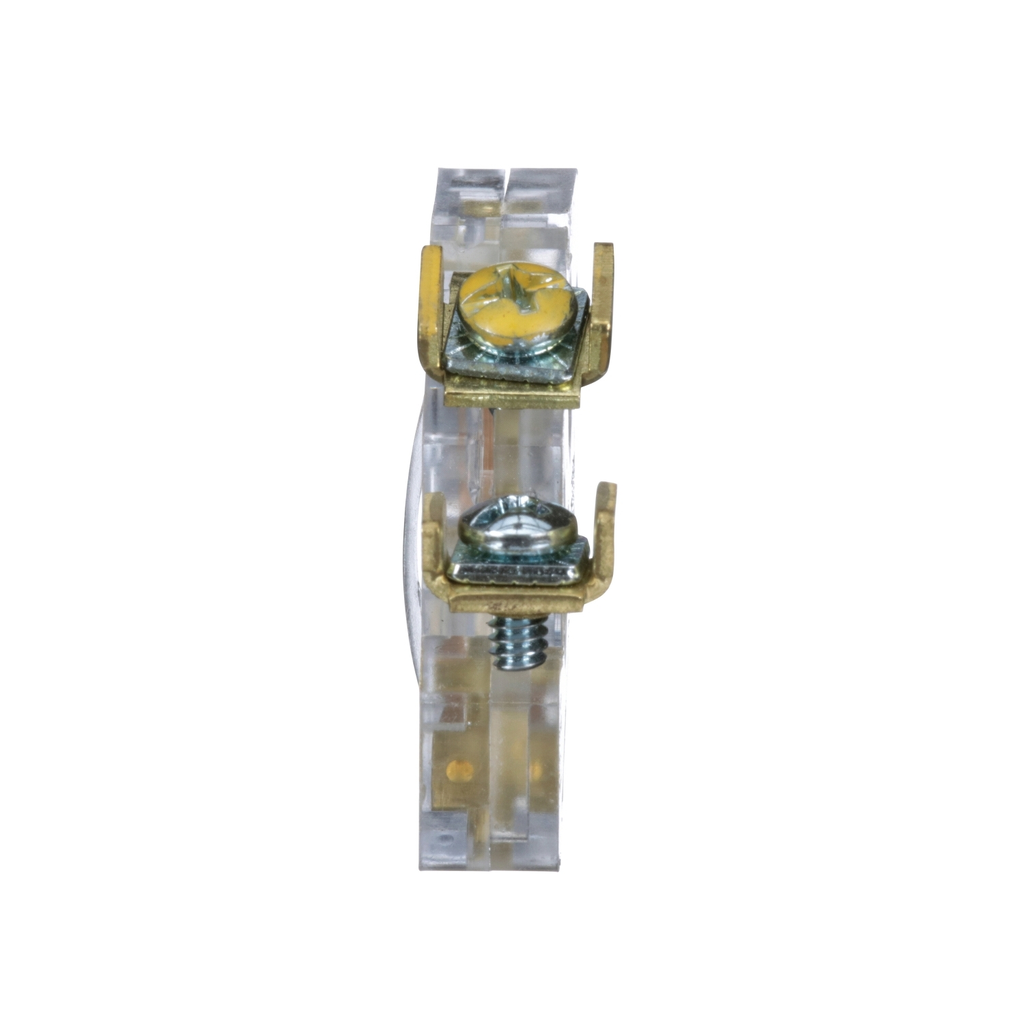

Square D 9999SX12 600 VAC 3 Amp 1NC Size 00 to 2 NEMA Auxiliary Contact

Manufacturer: Square-D / Schneider | Catalog # 9999SX12 | Cooper Electric Part # 69176
$99.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is often used as part of the electrical interlock on reversing contactors and starters. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Technical Information

Applications
NC AUXILIARY CONTACT KIT
Coil Voltage
<= 600 V AC 50/60 HZ
Contact Configuration
1 NC
Contact Rating
3A
NEMA Size
0,00,1,2
Size
NEMA SIZE 00 THRU 2
TC Connection
SCREW CLAMP
Type
Auxiliary Contact Module

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901879732
GTiN
00785901879732
Product UPC
78590187973

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed,UL Recognized
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 8536SAO12V01H308S
  • 8536SAO12V01S
  • 8536SAO12V02H308S
  • 8536SAO12V02H30S
  • 8536SAO12V02S
  • 8536SAO12V03
  • 8536SAO12V03H30
  • 8536SAO12V03H308
  • 8536SAO12V06
  • 8536SAO12V06H30
  • 8536SAO12V06H308
  • 8536SAO12V08
  • 8536SBO2V02H30S
  • 8536SBO2V02S
  • 8536SBO2V03
  • 8536SBO2V03H30
  • 8536SBO2V06
  • 8536SBO2V06H30
  • 8536SBO2V08
  • 8536SBO2V08H30
  • 8536SCO3V02H30S
  • 8536SCO3V02S
  • 8536SDO1V01H30S
  • 8536SDO1V01S
  • 8536SDO1V02H30S
  • 8536SDO1V03
  • 8536SDO1V03H30
  • 8536SDO1V06
  • 8536SDO1V06H30
  • 8536SDO1V08
  • 8536SDO1V08H30
  • 8736SAO16V01S
  • 8736SAO16V02H308S
  • 8736SAO16V02H30S
  • 8736SAO16V02S
  • 8736SAO16V03
  • 8736SAO16V03H30
  • 8736SAO16V06
  • 8736SAO16V06H30
  • 8736SAO16V08
  • 8736SAO16V08H30
  • 8736SBO4V01S
  • 8736SBO4V02H30S
  • 8736SBO4V02S
  • 8736SBO4V03
  • 8736SBO4V03H30
  • 8736SBO4V06
  • 8736SBO4V06H30
  • 8736SBO4V08
  • 8736SCO8V01S
  • 8736SCO8V02H30S
  • 8736SCO8V02S
  • 8736SCO8V03H30
  • 8736SCO8V06H30
  • 8736SCO8V08
  • 8736SCO8V08H30
  • 8736SDO2V01S
  • 8736SDO2V02H30S
  • 8736SDO2V02S
  • 8736SDO2V03
  • 8736SDO2V08
