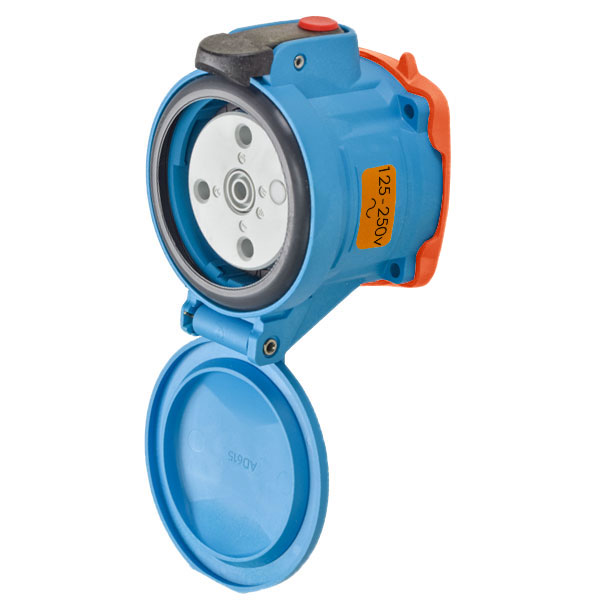

Product image for Meltric 63-34076 DSN30 Receptacle, Poly, Blue, Size 2, Type 4X & IP69, 2P+N+G, 30A, 125/250 VAC, 60 Hz
Email

Meltric 63-34076 DSN30 Receptacle, Poly, Blue, Size 2, Type 4X & IP69, 2P+N+G, 30A, 125/250 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 63-34076 | Cooper Electric Part # 689252
$347.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Receptacle, With Neutral, Ground, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Number Of Poles: 2, Number Of Wires: 4, Wire Size: 14 to 8AWG, Amperage Rating: 30AMP, Voltage Rating: 125/250V, Material: Polyester, Color: Blue,

Technical Information

Amperage
30 Amp
Conductor Size
14-8 AWG
Contact Configuration
2P+N+G
Current
30 Amp
Frequency
60 Hz
Horsepower
1 hp
IP Rating
66,67,69
Material
Poly
Max Operating Temperature
140 degrees F
Number of Poles
2 Pole
Number of Wires
4 Wire
Short Circuit Current Ratng
125 A
Size
2
Strip Length
7/16 in
Type
Receptacle
Voltage
125 Volt
Wire Size
14-8 AWG

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474544672
Color
Blue
Environmental Conditions
-40 to 140 F
GTiN
00784474544672
Product Series
11
Product UPC
78447454467

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
Compare
