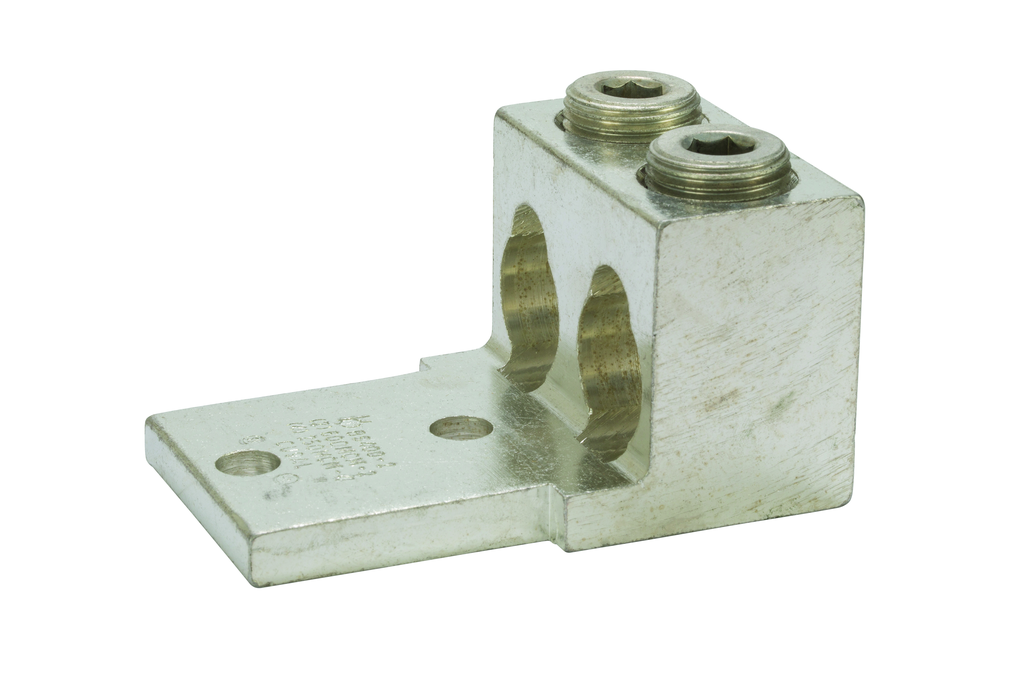

Product image for NSI BS400T2 Dual Range Lug 600-4
Email

NSI BS400T2 Dual Range Lug 600-4

Manufacturer: NSi | Catalog # BS400T2 | Cooper Electric Part # 68872
$31.23 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Dual Range Lug Two 250 MCM - 1/0 AWG, Four 250 MCM - 1/0 AWG - 1 Count Dual Range Lugs are set screw connectors that will accept either one or two wires. Made of 6061T-6 aluminum alloy. Electro-pin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 Volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Bolt Size
9/16 IN
Conductor Size
1/0 AWG-250 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
2
Standard
UL486B
Temperature Rating
90 degrees C
Type
Aluminum Dual Range Lug
Voltage
600 Volt
Wire Size
0 AWG-250 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381002013
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381002013
Product UPC
66238100201

Dimensions

Height
2 Inch
Length
3.812 Inch
Warranty Length
1 yr
Width
2.468 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Features
  • Set-screw connectors that will accept either one or two wires
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • UL Listed Wire Connector
Certifications and Standards
  • CSA
  • UL Listed
  • UL 486A-486B
