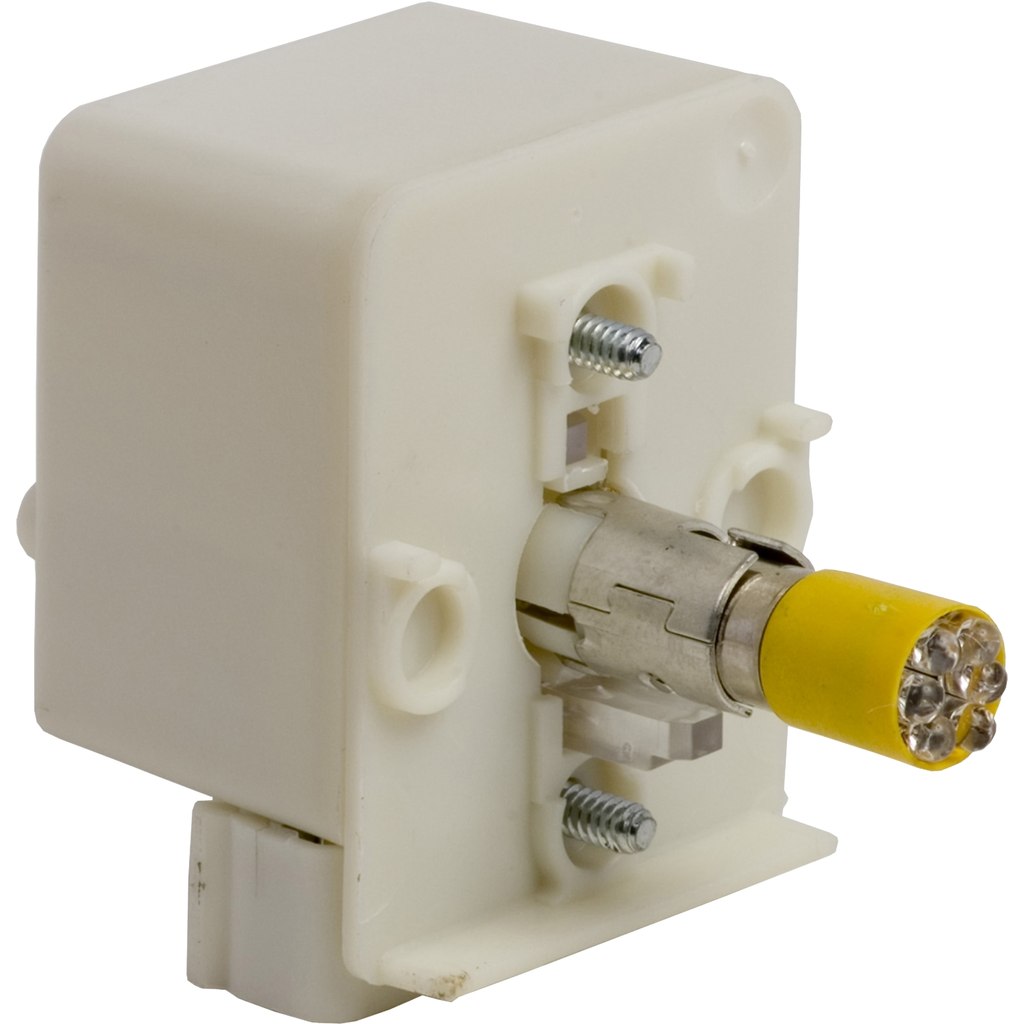

Square D 9001KM35LY 24 to 28 VAC/VDC 0.28 VA Yellow LED 30 mm Push Button Light Module

Manufacturer: Square-D / Schneider | Catalog # 9001KM35LY | Cooper Electric Part # 687773
$127.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a yellow LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or amber lens cap. These light modules are UL Listed and CSA certified.

Technical Information

Applications
LIGHT MODULE FOR ILLUMINATING 30MM CONTROL UNITS
Light Source
LED
Type
LIGHT MODULE
Voltage
24/28 Volt

Manufacturer Information

Brand
Square D
Sub Brand
HARMONY

General Product Info

12-Digit UPC
785901029007
GTiN
00785901029007
Product UPC
78590102900

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Ambient Air Temperature For Storage
  • -40-70 °C
  • -40-158 °F
Product Or Component Type
  • light module
  • light block
Light Block Supply
  • direct via integral resistance 0.28 VA
Range Of Product
  • Harmony 9001K
  • Harmony 9001SK
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards
  • UL 508
  • CSA C22.2 No 14
  • EN/IEC 60947-5-4
  • EN/IEC 60947-5-1
  • EN/IEC 60947-1
  • JIS C 4520
  • JIS C 852
Ip Degree Of Protection
  • IP20 IEC 60529
Electrical Shock Protection Class
  • class II conforming to IEC 61140
Vibration Resistance
  • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Us Rated Supply Voltage
  • 24...28 V AC 50...60 Hz
  • 24...28 V DC
Shock Resistance
  • 50 gn IEC 60068-2-27
Ambient Air Temperature For Operation
  • -25-70 °C
  • -13-158 °F
Product Certifications
  • UL Listed
  • CSA
  • NEMA
