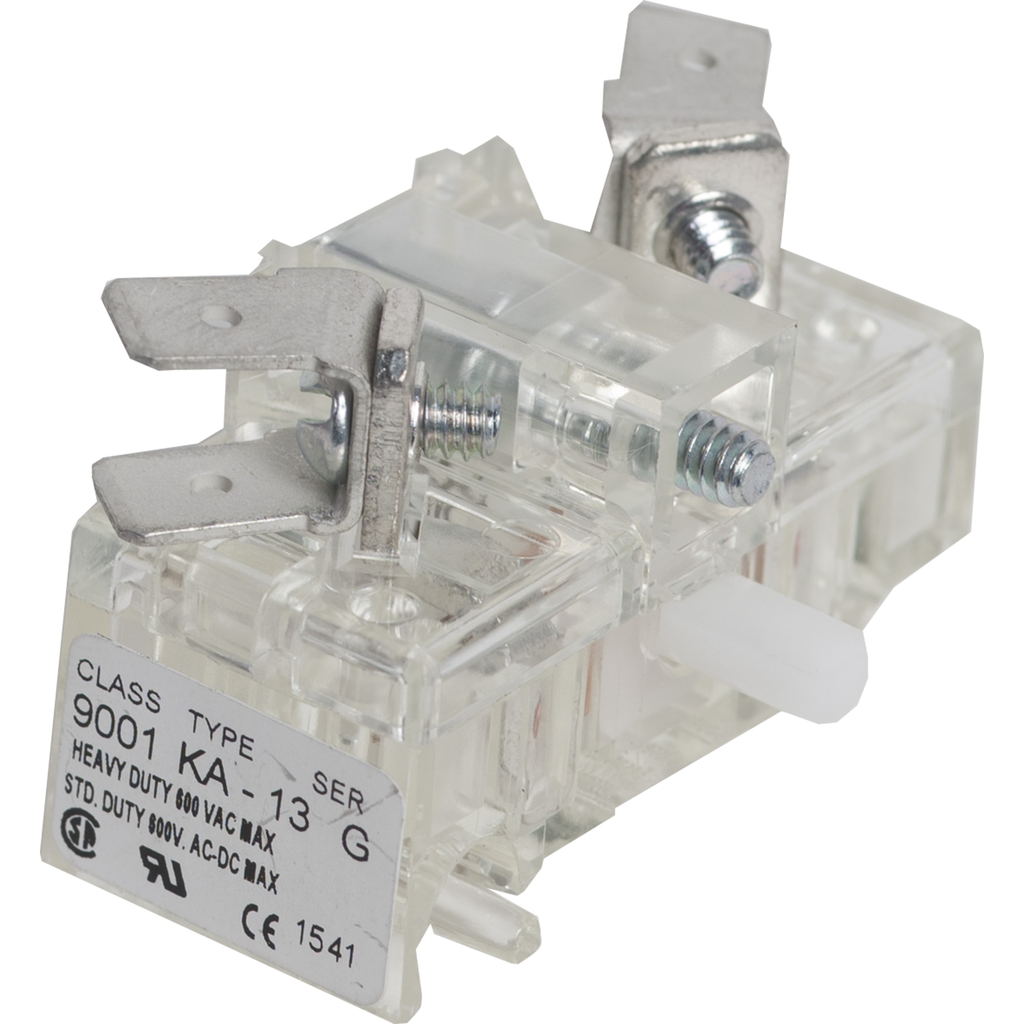

Product image for Square D 9001KA13 600 VAC 10 Amp 1NC Silver Alloy Quick Connect Terminal Push Button Contact Block
Image thumbnail 0
Image thumbnail 1

Email

Square D 9001KA13 600 VAC 10 Amp 1NC Silver Alloy Quick Connect Terminal Push Button Contact Block

Manufacturer: Square-D / Schneider | Catalog # 9001KA13 | Cooper Electric Part # 687016

$39.25/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
91 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This contact blocks will work on 9001K, 9001SK and 9001KX operators. Contact block has one normally closed contact. Contact block has quick connect terminals. Contact block is UL Listed and CSA certified. "The contacts are made of silver alloy." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by NEMA and UL 508. It meets EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and JIS C 4520 standards." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of . 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Technical Information

Action
Standard
Amperage
3 Amp 240 V, AC-15, A600-Q600 NEMA-0.55 Amp 125 V, DC-13, A600-Q600 NEMA
Contact Configuration
1 NC
Contact Material
Silver Alloy
Net Weight
0.027 kg
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,UL 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
QUICK-CONNECT TERMINAL STRIPS
Type
Contact block with protected terminals
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
9001K

General Product Info

12-Digit UPC
785901732426
GTiN
00785901732426
Product UPC
78590173242
Weight
0.06 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
