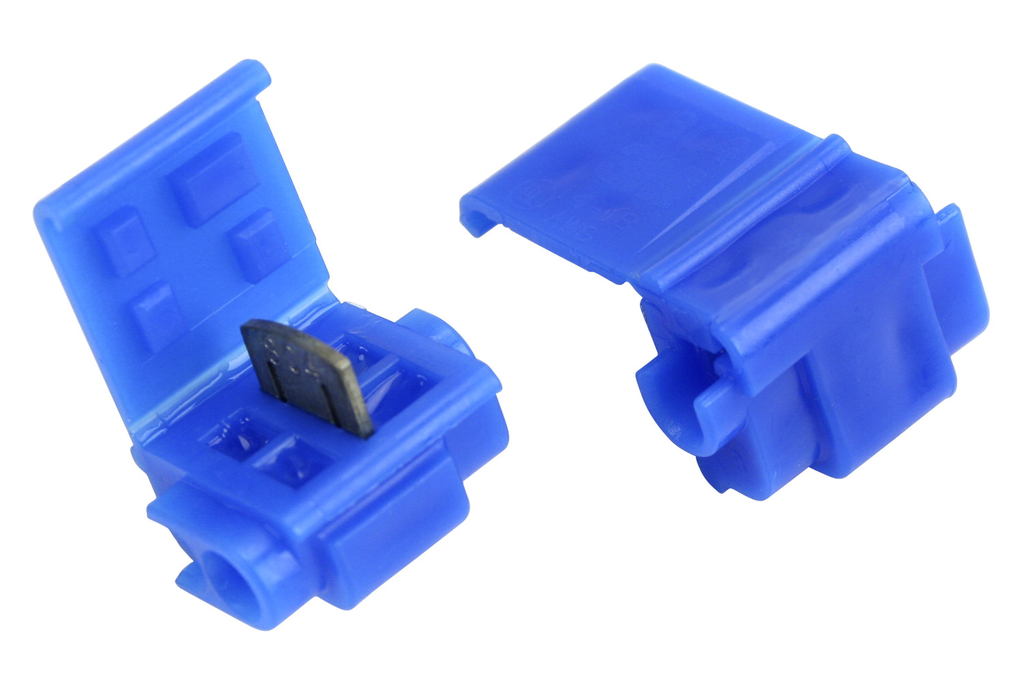

Product image for 3M 7100167045 3M™ Scotchlok™ IDC C
Image thumbnail 0

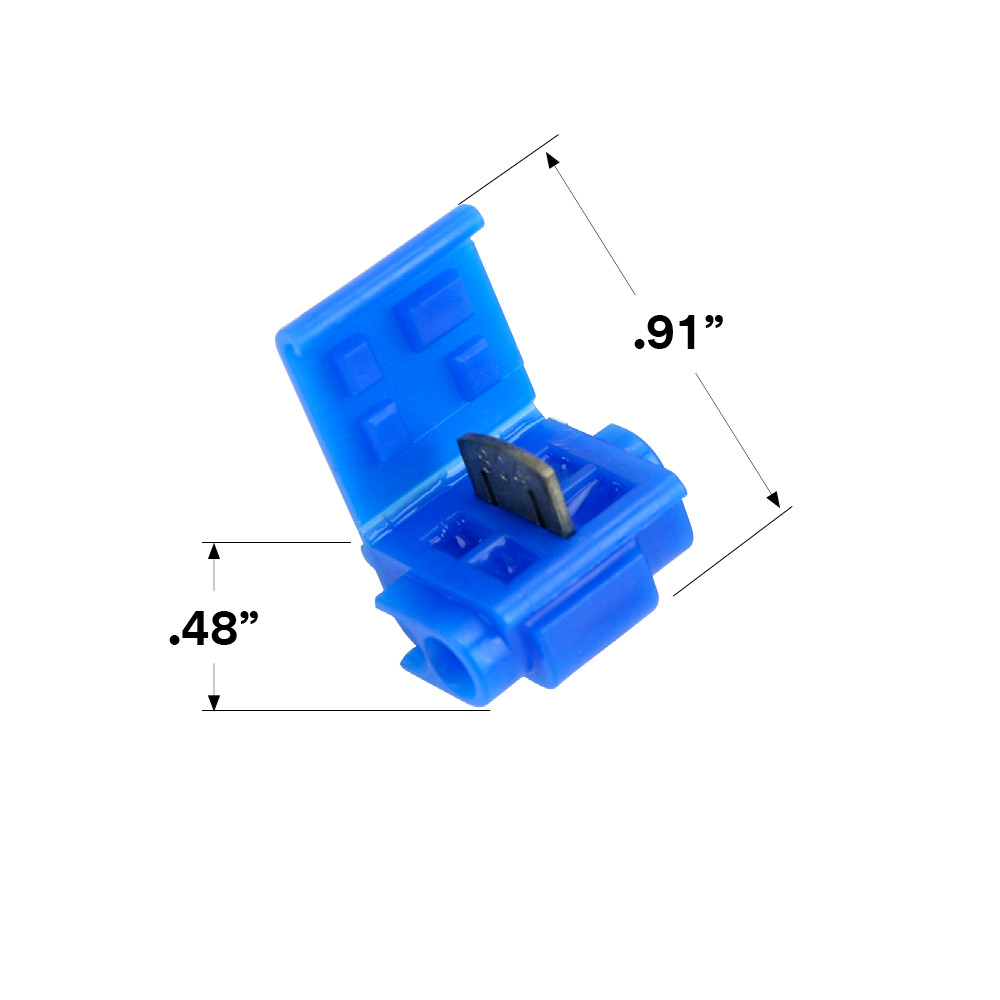

Image thumbnail 1
Email

3M 7100167045 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7100167045 | Cooper Electric Part # 685204
$0.79/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Scotchlok™ Insulation Displacement Connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated, self stripping and offers a moisture resistant seal.

Technical Information

Conductor Size
18-16 AWG/18-14 AWG
Connection Type
Run And Tap
Flame Retardant
No
Material
Plastic
Max Operating Temperature
194.0 degrees F
Operating Temperature
90 degrees C
Temperature Rating
194 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-16 AWG / 14 AWG Stranded (Tap)

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007061342
Color
Blue
GTiN
10054007061349
Product Type
Connector
Product UPC
05400706134

Certifications and Compliance

Country of Origin
USA
Features
  • Independently crimps the barrel and grip on insulated and non-insulated terminals and connectors
  • Use for control circuits, fixtures, appliances, signals, PA systems and automotive/marine/RV wiring
  • Accommodates 18 to 14 AWG solid/stranded copper
  • UL Listed as a Pressure Cable Connector per UL486C and is RoHS 2011/65/EU Compliant
  • Operating temperature 194F (90C)
  • 600 volts max. building wire;
